Manual Cap Screen Printing Machine

Manual Cap Screen Printing Machine

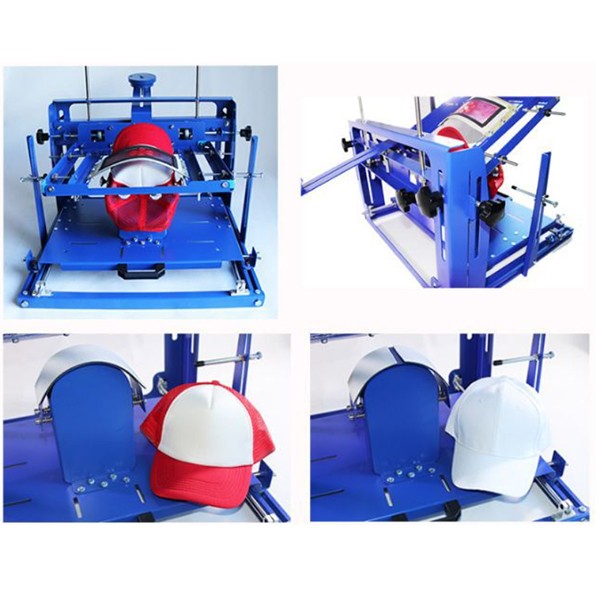

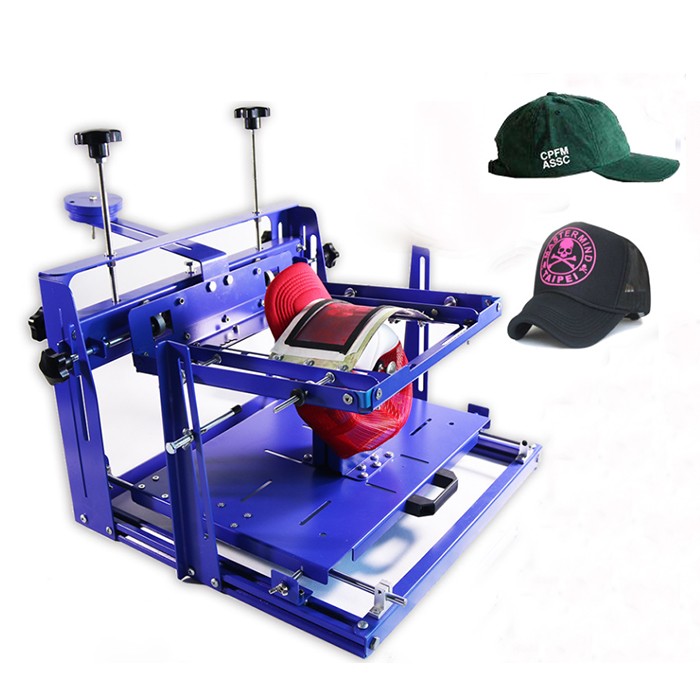

This manual screen printing machine is mainly used for the printing of various soft materials cambered surface andirregular cap mask ,such as cotton fabric, chemical fiber fabric, sponge, etc. For example,baseball cap, sun cap,cap, fisherman cap, , octagonal cap all kinds of soft material caps, as well as masks of various materials and so on, the use of this machine can effectively improve the printing quality, improve the printing efficiency.There are many kinds of caps and masks, with diferent shapes and sizes. The printing position is not accurate because of the difficulty in positioning. The printing surface is cambered surface with various bending degrees, irregular bending, diverse cap shapes and other specialcharacteristics.

The cap screen printing machine designed by our company can basically solve the above difficulties:

1.Positioning by adjusting the radian of the cap and mask: using the adjustable arc material ; adjust the radian of the arc according to the need

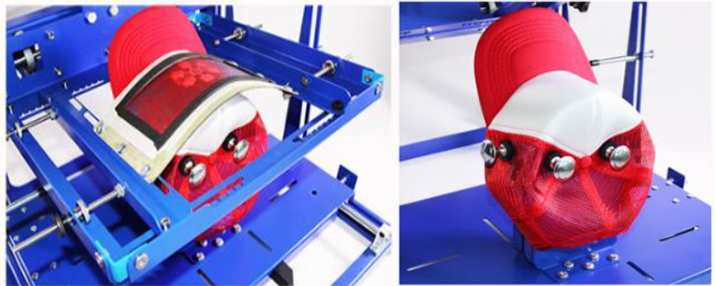

2.Positioning of cap and mask: place the cap or mask on the tooling, and position the cap andmask on the tooling vertical board by 4-6 magnets on three or four sides; The cap or mask will not move; Take off the cap just take off the magnet, convenient and quick; Easy to set the cap printing.

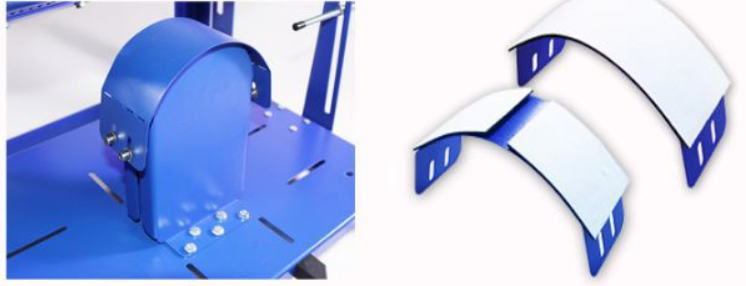

3.Stainless steel cambered plate can be bend a little from left to right in accordance with the arc of the hat ; To meet the radian requirements of the cap printing surface, so as to ensure thatthe screen plate and printing surface arc as parallel as possible, to ensure accurate printingpositioning and the quality of printing.

Basic functions of the Screen Printer:

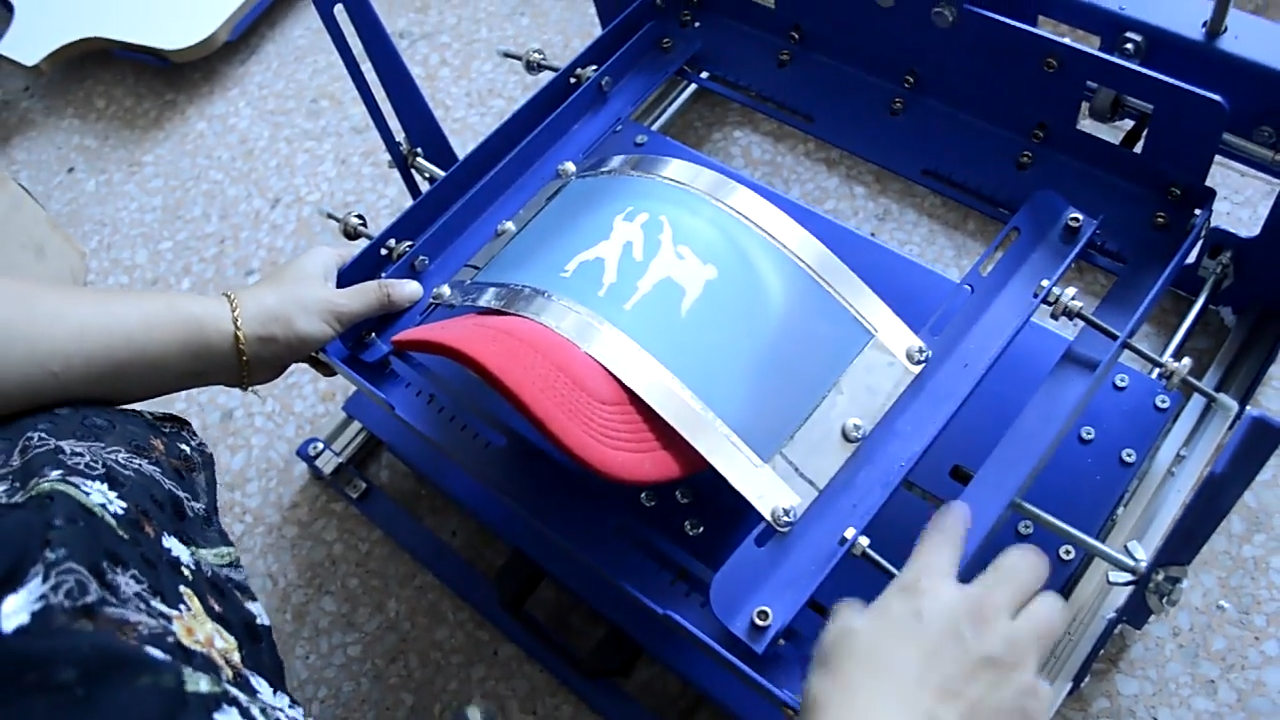

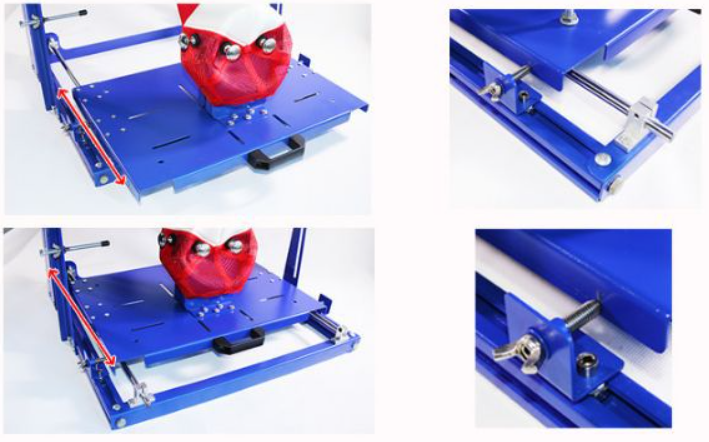

1.The bottom of the machine and the positioning platform can be moved back and forth, and drag positioning device is set:Drag the platform out, cover with a cap or mask, and the magnet adsorb to fix, push the machine to print; Pull out the platform, remove the magnet, removethe cap or mask: Pull out and push in can be accurately positioned by positioning ball screws on both sides of the platform,

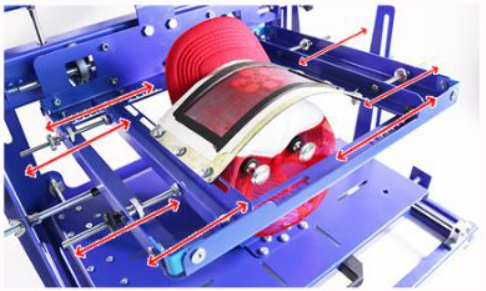

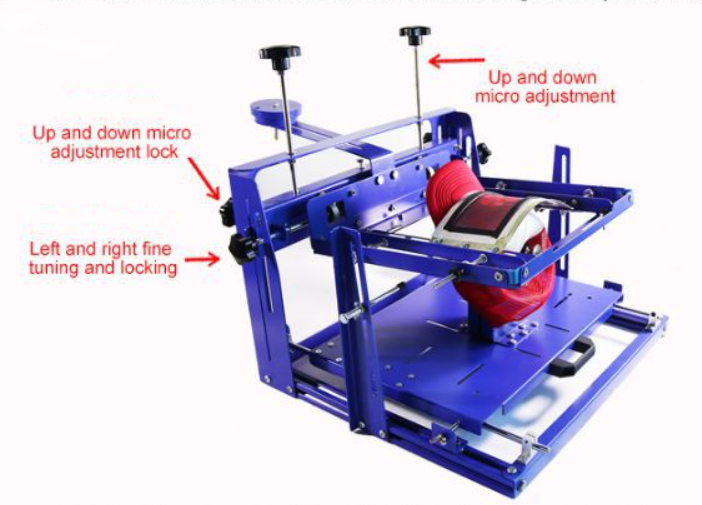

2.The main machine can be micro adjusted by manual knobs from left to right , up and down,up and down can move 170 mm; There is with a handle lock; Left and right can adjust 20mm,tighten and lock.

3.The machine adopts 1 mm stainless steel plate, the screen frame directly fixed on both sides ofthe frame beam; Screen plate can move 130mm front and rear; Screen plate installation beam can finish by adjusting the screen radian by hand screw, After adjusting to the same radianas the printing surface, lock the screws at both ends of the two beams.

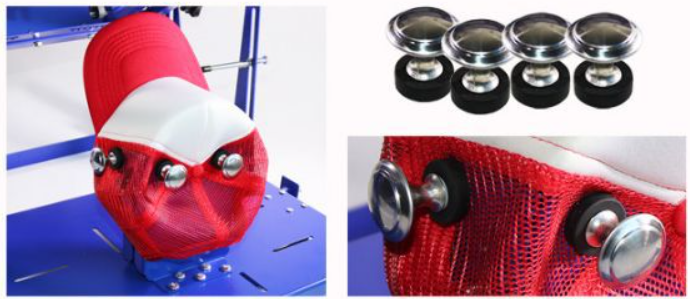

4.The whole magnet is covered with rubber layer, adsorption force is large, at the same time it will not damage the hat or mask; Magnet with handle, easy to access, fast, labor - saving.

5.The machine is equipped with two flexible stainless steel frames, inner size is 100*190 mm(outer size is 130*200 mm); 100*240 mm (outer size 130*250 mm); Suitable for most kinds of sofhat printing patterns

6.All parts of the machine are advanced electrostatic spraying surface treatment, corrosior resistance acid and alkali resistance, cleaning resistance, long - term use without rust.

Configured with relevant tools and materials

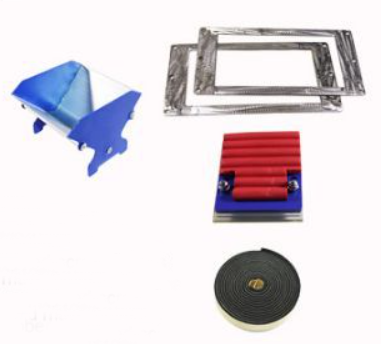

1.1 piece 8 cm scoop coater

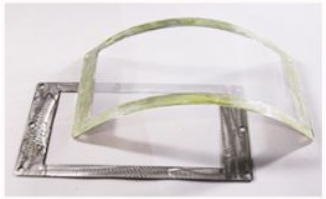

2. One for each of the two stainless steel cambered screen plates

3.1 piece 8cm metal scraper (including rubber strip)

4, 1 roll screen plate edge sealing tape
