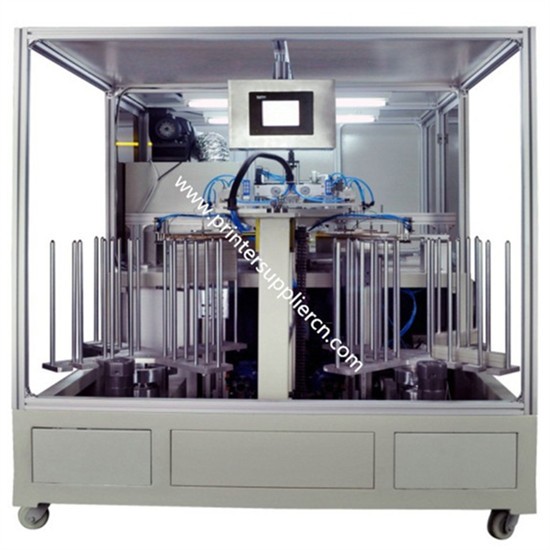

Automatic Screen Printer for Straight Ruler

Automatic Screen Printer for Straight Ruler

Machine summary

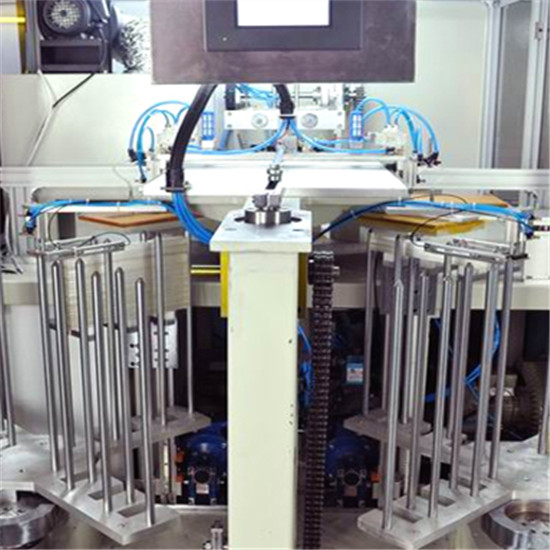

The machine is special designed for printing stationery ruler with high speed and automatic. Building up printing and conveying system by high precision servo motor and cam divider to finish printing automatically, reduce labor, improving efficiency. The printing speed can be up to 2000pcs/hr, suitable for printing rulers within 30cm.

Technical Parameter:

1. Fully automatic, no need person to operate.

2. Locating automatically to keep printing precision.

3. No product without printing system, keep printing stable.

4. High and strong vacuum system, keep printing precision.

5. PRIMARC UV system from England, drying quickly.

6. Mitsubishi PLC (Japan) with WEINVIEW (Taiwan) touching screen control system. Digital control system, can set parameter randomly, operate easily with big function.

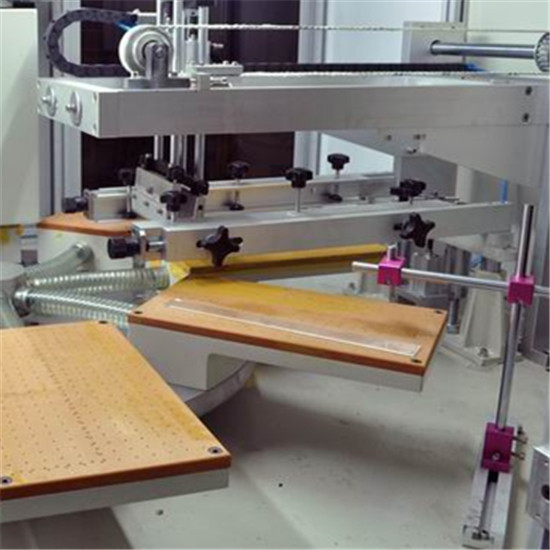

7. The four angle of screen frame holder can be adjusted, keep the balance between screen frame and worktable, also make sure the layer of printing ink is even.

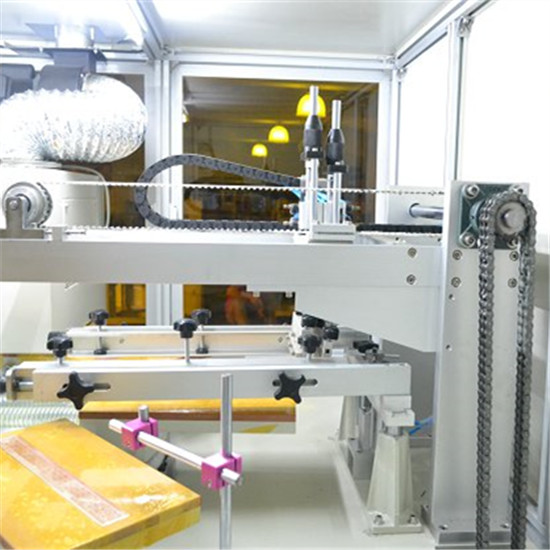

8. Printing angle, printing pressure and screen distance are easy to set. The change of squeegee and flood bar is controlled by precision guide, keeping the vertical precision, working smoothly.

9. With emergency switch to keep safe and stable.

10. Locating several workstations by Taiwan precision rotary locating with stable, fast, improving efficiency.
