Ink Cup Pad Printing Machine

Rotary Four Colors Pad Printer Ink Cup

Technical Parameters

Item  No. :FA-P4/CK

Max.Printing Size:80x138mm

Steel Plate Size:100x250mm

Power:110/220V 50-60HZ 30w

Transverse Stroke:160mm

Vertical Stroke:75mm

Printing Workstation:16pcs

Air Consumption :5-7bar

Printing Speed:1800pcs/hr

Machine Size(LxWxH):122x71x150cm

Weight:300kg

  • Product Detail
  • Video

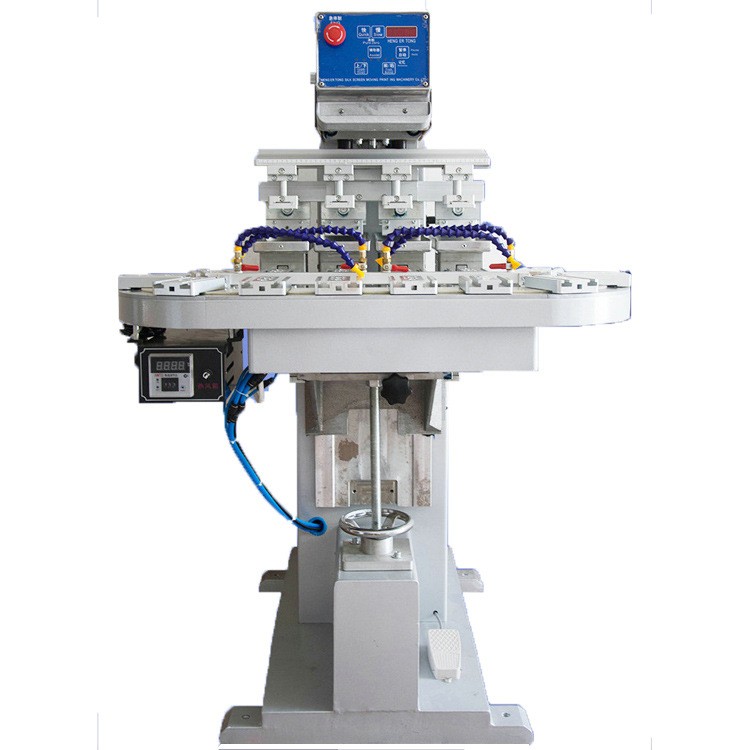

Rotary Four Colors Pad Printer Ink Cup

Feature

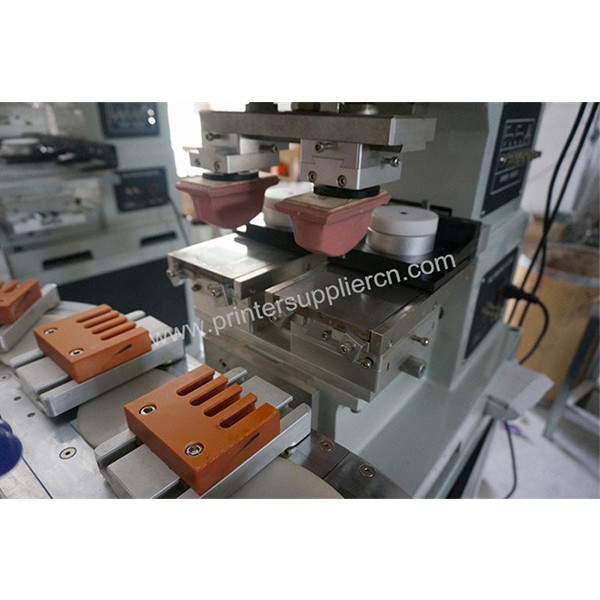

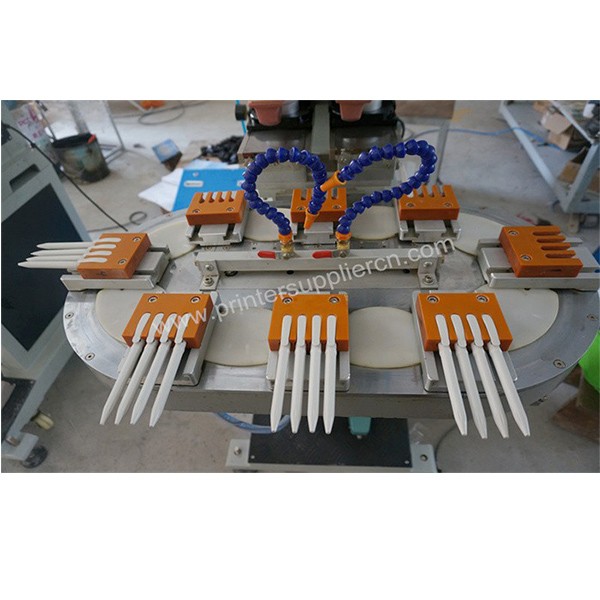

FA-P4/CK is pad printer with ink cup,  conveying products by rotary type turntable. The products can be overprinted with 4 colors. Running a circle can finish one time overprint automatically. It is efficient but need eight fixtures to get the precise place location.Comparing with shuttle pad printing, this pad printing machinery comes to a higher steps. The printing speed runs to 1500+pcs/hr. It is the system that allows you to print images on curved, textured and flat items.

Function

1. With microcomputer-controller, semi-automatic, utility function, and the operating procedures are flexible and reliable.

2. With aluminum alloy structure frame and metal coating surface, the machine is easy to move but steady

3. With function of leveling ink by sliding automatically on front /back, avoiding printing ink partial solidification

4. Adjustable inking pressure and printing speed meets different printing requirements

5. Use the oil cup to inking , pro-environment and easy to disassembly & assembly , avoid wasting ink.

6. 360° adjustable rubber pad angle and ±5° adjustable worktable angle ensure repeat precision to be less 0.05mm

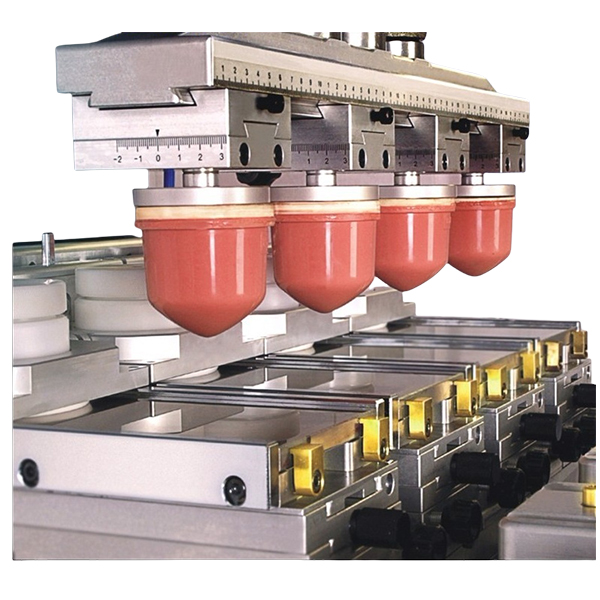

7. Worktable, plastic head and ink tray can be adjusted X. Y. Z

Rotary Four Colors Pad Printer Ink Cup
