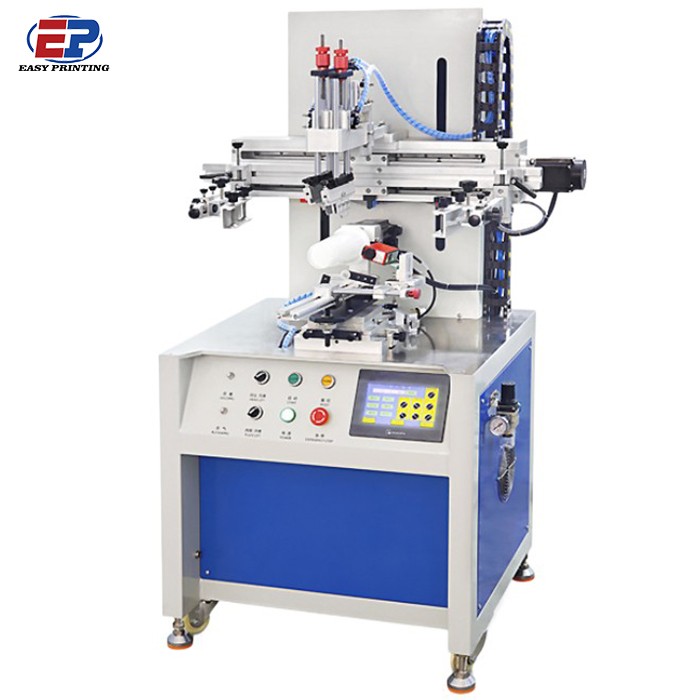

Two Colors Bottle Screen Printing Machine with Optical Sensor

Two Colors Bottle Screen Printing Machine with Optical Sensor

Application:

This is a medium size and new technology curved screen printer. It is wildly applied in printing industry. This screen printing machine use sensor/cursor for printing 2.3.4.5.6 even more colors. For the round products without registration mark, we strongly recommend this Cursor Coloring Screen Printing Machine. Its full servo system controls printing multiple color very precise. With air injection function, it can print the products which material is soft. It is with high printing accuracy, fast printing speed and accurate positioning. The material printed on a circular workpiece within 120mm can be plastic, steel, ceramic, glass, etc.

Product Features:

1. Microcomputer control of various functional actions, high degree of automation, simple and convenient operation.

2. Built-in four digit automatic counter.

3. The printing stroke and speed can be adjusted to meet different printing requirements.

4. The workbench can be adjusted for front and rear, left and right, and plane swing angles, making adjustment convenient and quick.

5. Pneumatic squeegee control with pressure adjustment system.

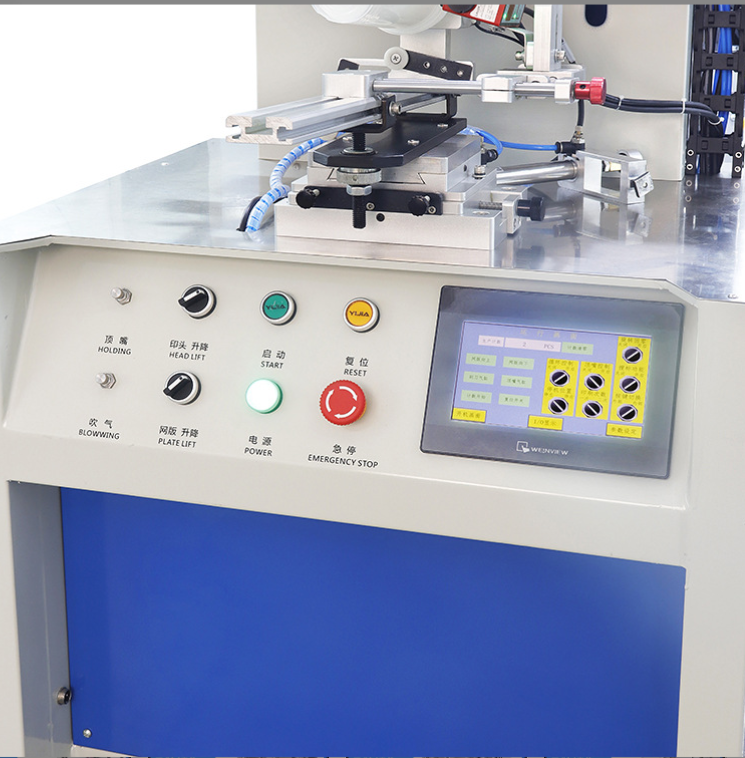

6. Stable, reliable, bright and clear blue display that shows the working state of the machine at any time

7. High quality AUTONICS sensors and perfect fault alarm system.

8. Convenient foot switch, easy to operate and maintain.

9. Lightweight and sturdy alloy die-casting components and wear-resistant bearing bushings.

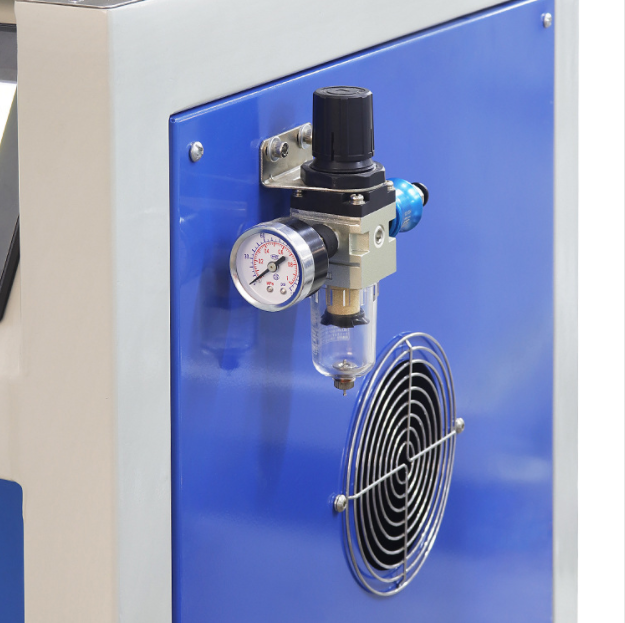

10. Adopt international famous brand pneumatic components.

11,Independent printing and ink return speed control.
