Rotating Screen Printing Machine

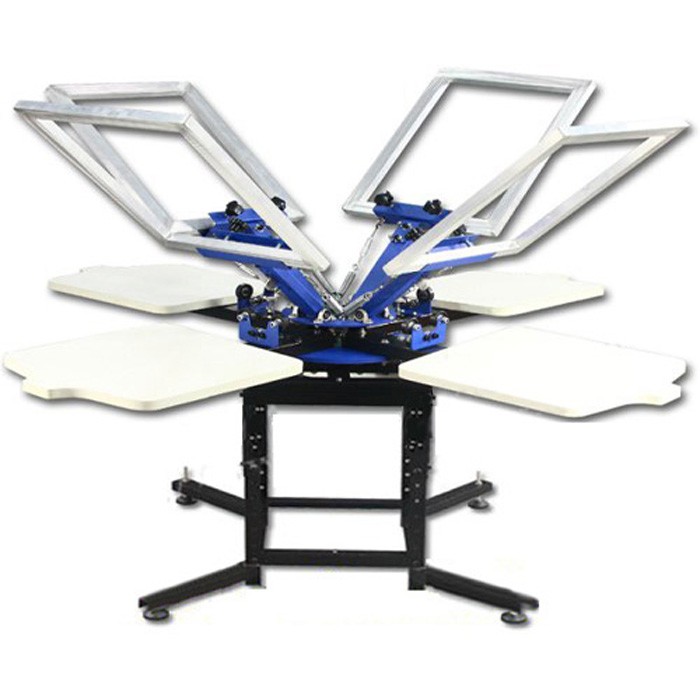

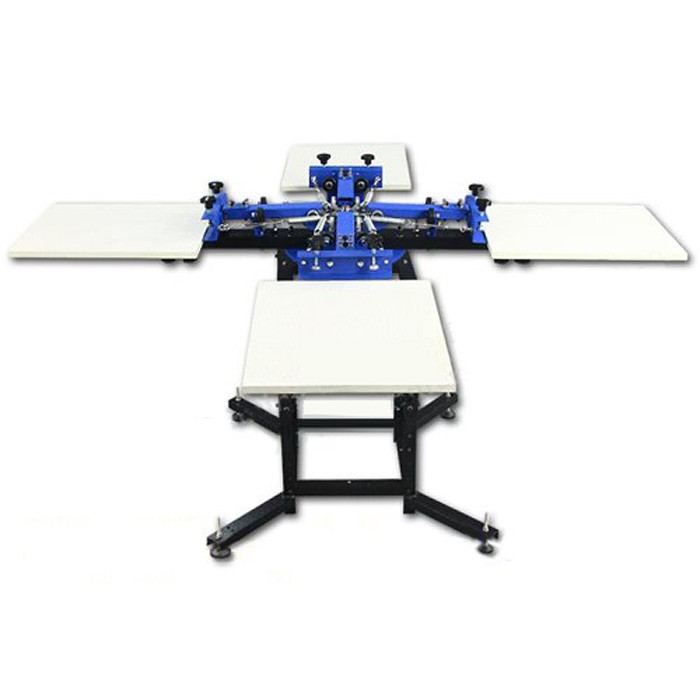

Manual Carousel 4 Colors 4 Stations Screen Printing Machine for Tshirt

Technical Parameter

Model  No:FA-404

Foundation Size: 92x92x59-83cm

Platen Size:55x45cm

Applicable Biggest Screen Size:53x43cm

Shipping Volume:0.3CBM

Machine Weight:74/82kgs

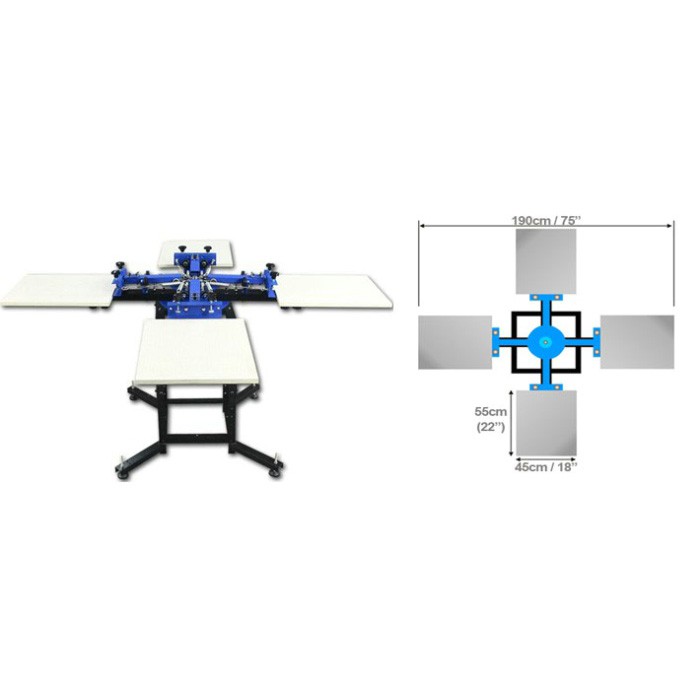

Machine Size(LxWxH):190x190cm

Packing Size(LxWxH): Weight

(4 cartons)

1).26kg  23"x23"x13" (59x59x31cm)

2) 19kg  23"x16"x7.5" (59x39x19cm)

3) 18kg  24"x20"x9" (61x51x22cm)

4) 19kg  32"x23"x6.3" (81x58x16cm)

Printing Color:Four colors

Printing Station:4pcs

Automatic Grade:Manual

Warranty:One year

  • Product Detail
  • Video

Manual Carousel 4 Colors 4 Stations Screen Printing Machine for Tshirt

Application

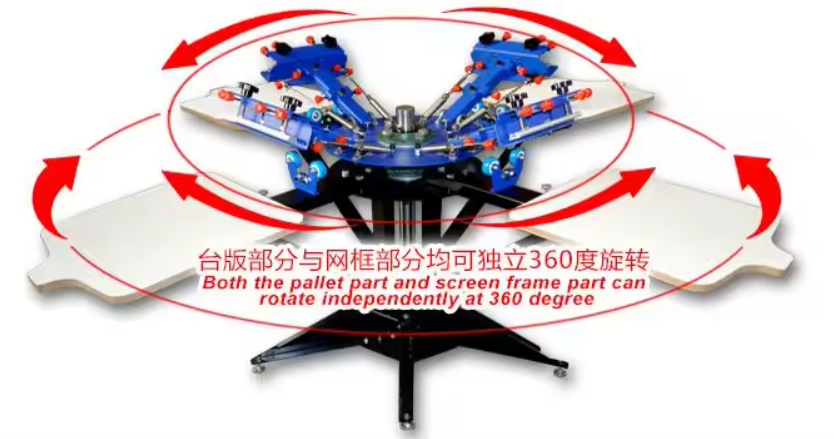

The printing base and screen can be rotated, and screen plate can turn backward and forward, left and right, which makes the operation easier and postitioning more accurate.

1.Suitable for printing 55x45cm about the format of the fabric, paper, clothes, T-shirts and other products.

2. Widely used in multicolor printed clothing and textile sectors.

3. More suitable for heatset printing ink, printing ink thickness, ink, bright;

Feature

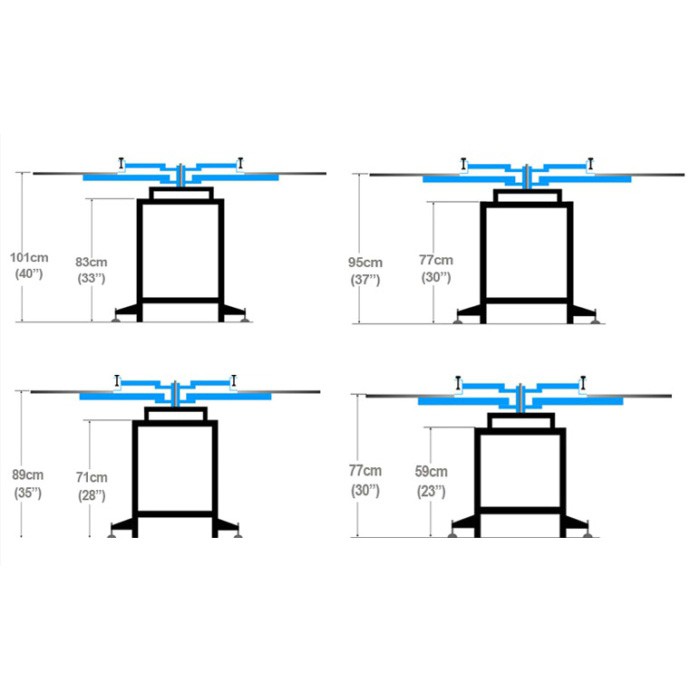

1 Up-and-down adjustable (77-100cm) foundation can meet demands of people statures from 150-190cm.

2. Metal body with advanced electrostatic spraying and electroplating, which make machine more durable,easy to clear and not easily get rusty. Main installing parts used stainless steel material

3 Split package and well-packed, machine body packed in polyform and metal parts are packed to prevent attriction, which guarantees products safety during transportation, especially suitable for exportation. 4. Installation manual and video and full set of tools are provided for installation and daily maintenance.

Function

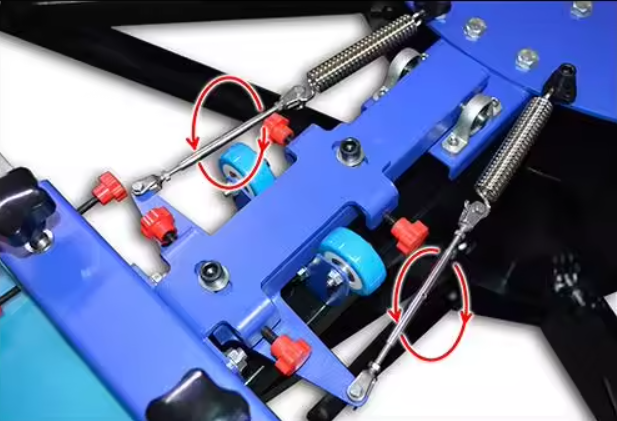

1. Fine Thread Micro Registration--Easy to use X and Y micro registration knobs with nylon rod ends are included for tighter registration and precise designs.

2. Easy Load Platens--Platen changes are lightening fast with the Workhorse easy load platen system.

3. Sturdy Tubular Steel Construction--Pneumatic locking cylinders for the squeegee, floodbar, and screen. This standard feature promotes quick set up and tear down times.

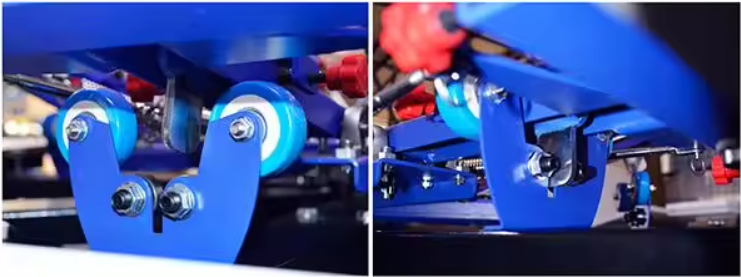

4. Large Diameter Center Shaft--The center shaft with tapered bearings allows for a smooth,balanced operation with quality in every spin.

5. Adjustable Off Contact--With over 1 inch of travel, you will always have the perfect off contact distance on any substrate.

6. Lockable Caster System--Mobilize your Odyssey Series Freestanding Printer with a new set of lockable casters.

carousel screen printing machine

manual rotary screen printer for tshirt

carousel screen printing equipment
