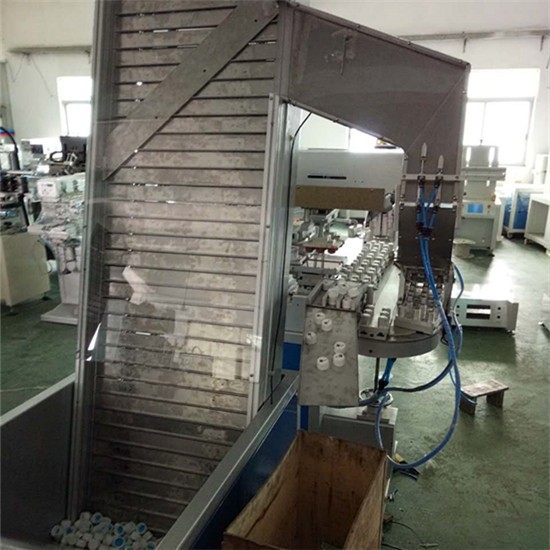

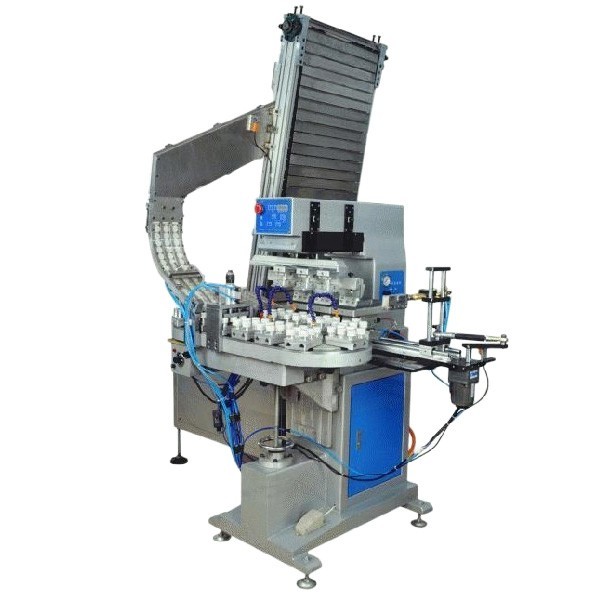

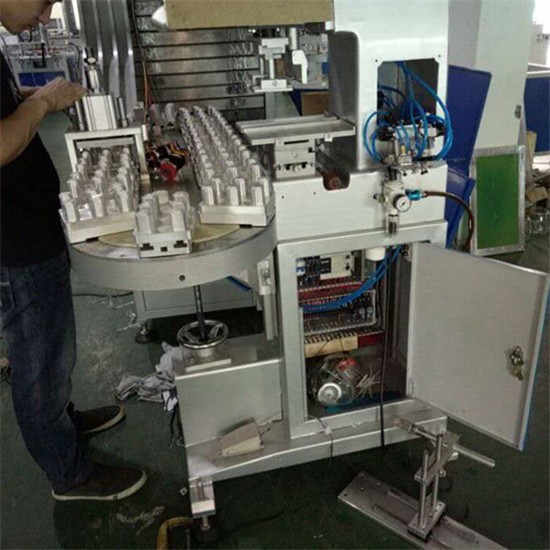

Automatic Bottle Cap Pad Printer

Automatic Bottle Cap Pad Printer

Feature

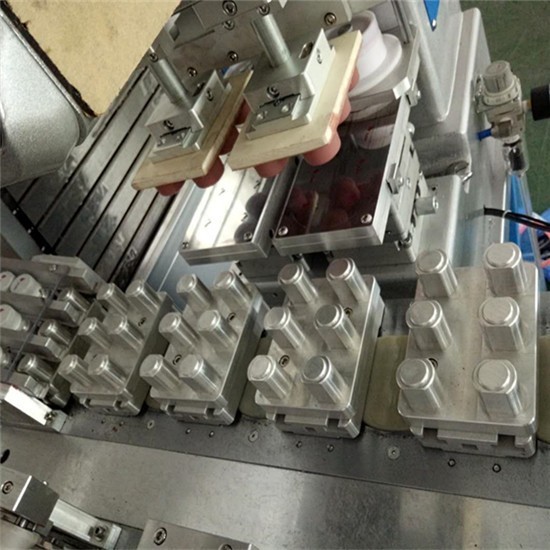

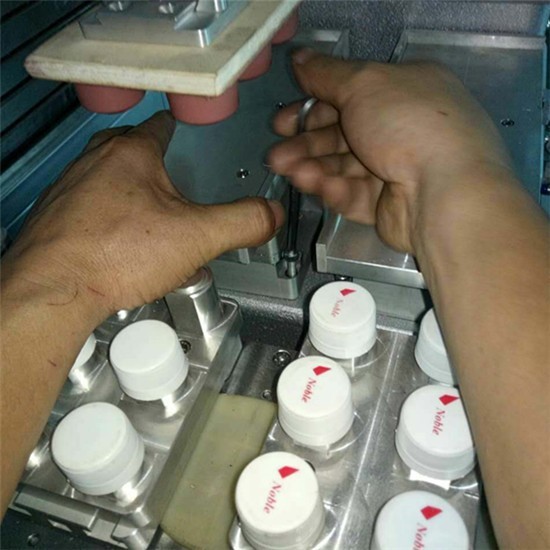

This is a high efficiency pad printer for bottle cap. The pad printer could print on 1 to 4 colors with high speed and save lots of labor cost. It is specially design printing machine for  bottle caps with diameter of 28mm/30mm. Meanwhile, with six silicone pads and fixtures, the printer can print six bottle caps at the same time. The speed can be up to 8, 000~10, 000pcshr. Highly accepted and bought to factory production by customers. Especially suitable for printing PET, PP bottle cap because the machine was equipped with flame treatment system.

1. The bottle cap printer is equipped with microcomputer-controller, fully automatic operation makes the printing more mechanical

2. With aluminum alloy structure frame and metal coating surface, the machine is easy to move but steady

3. With function of leveling ink by sliding automatically on front /back, avoiding printing ink partial solidification

4. Machine with adjustable inking pressure , which enables printing speed meets different printing requirements

5. 360° adjustable rubber pad angle and ±5° adjustable worktable angle ensure repeat precision to be less 0.05mm

6. Worktable, plastic head and ink cup can be adjusted X, Y,Z direction

7. Flame treatment to the surface of bottle cover/cap to improve printing adhesive quality.

8. Seal cup pad printing saves ink and is more environmental

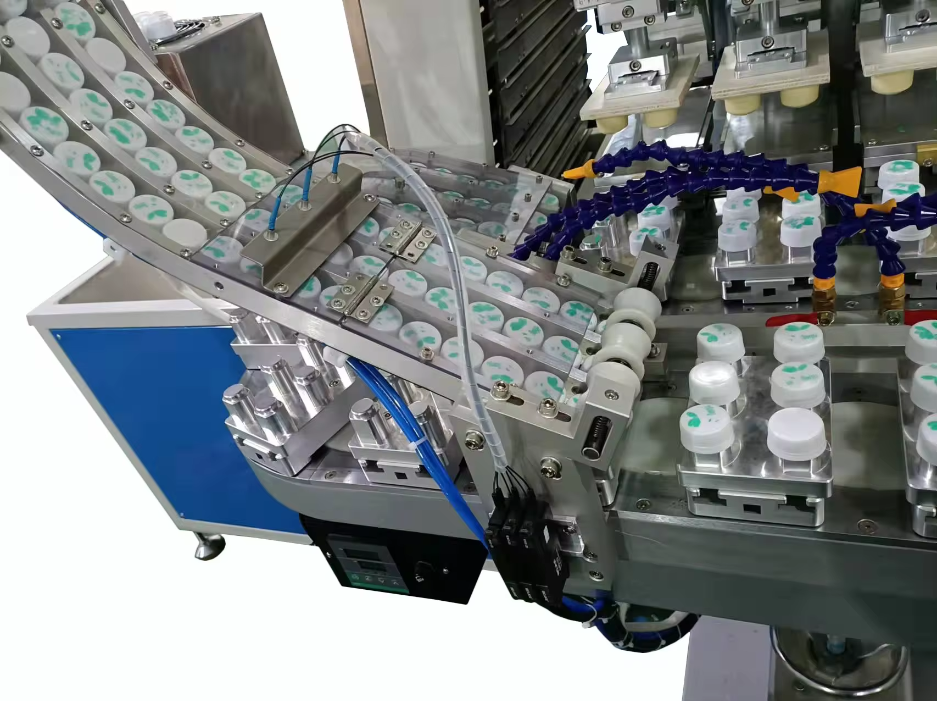

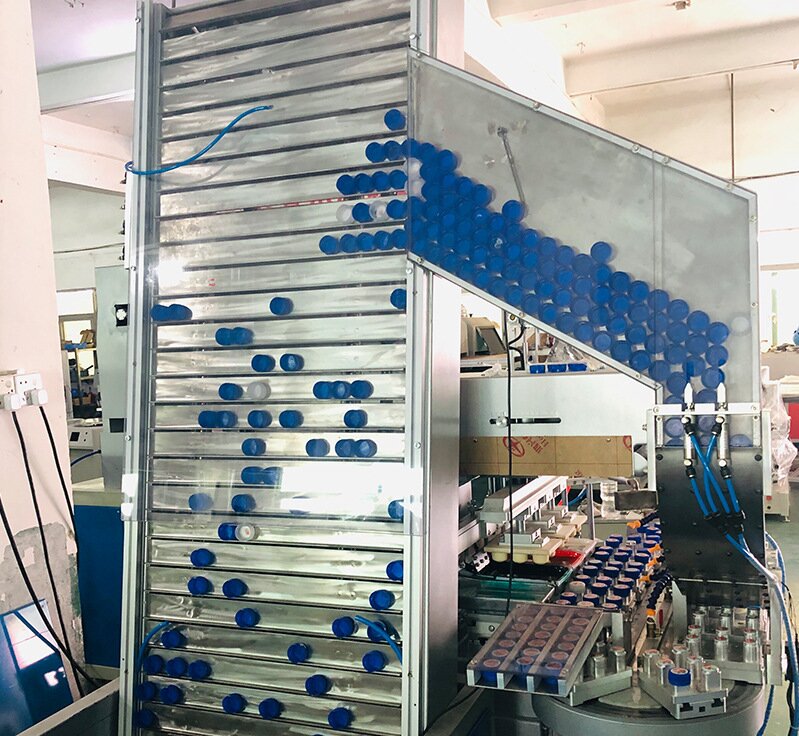

9.Automatic bottle cap feeding, cap positioning, auto cap feeding and unloading and auto caps drying after printing

10. Auto flame treatment or corona treatment to surface of the cap before printing.

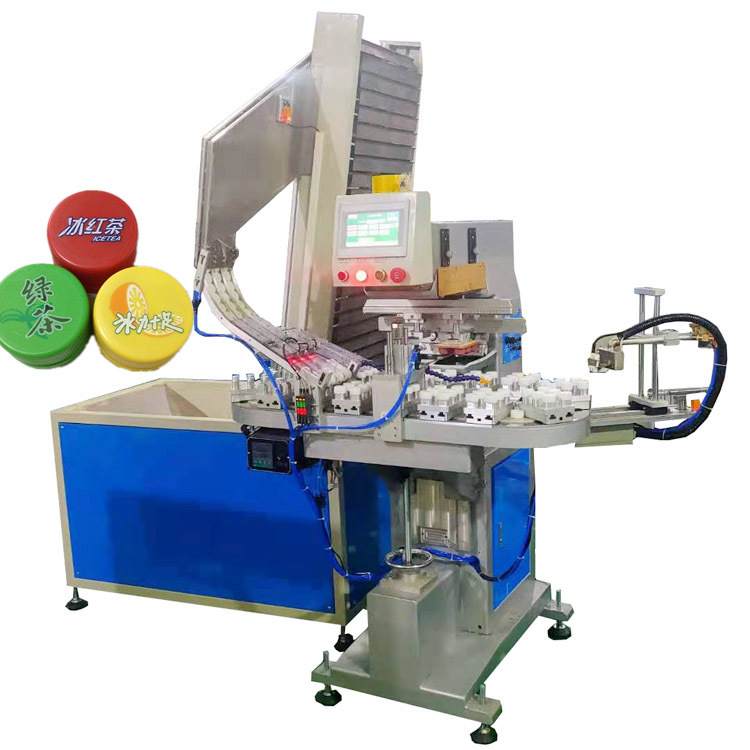

Fully Automatic Four Colors Bottle Cap Pad Printer
