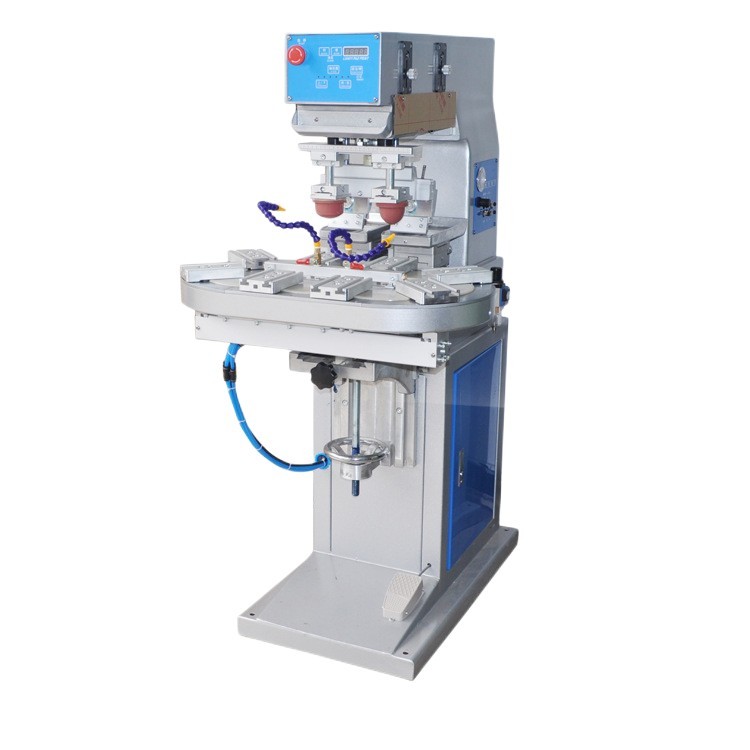

2 Colors Ink Cup Pen Pad Printer with Carousel

2 Colors Ink Cup Pen Pad Printer with Carousel

Application

Bottle Caps, Balls (Golf & Tennis)

Electrical items – MCB, Bulbs, CFL, Switches

Stationery items – Pens, Paper Weight, Staplers, Punching Machine, Logo on Diaries

Gifts and Novelties – Key Chains, Lighters, Bottles

Feature

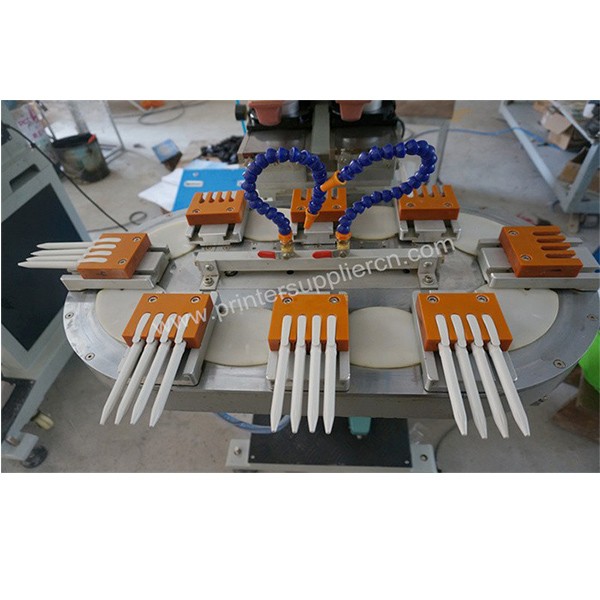

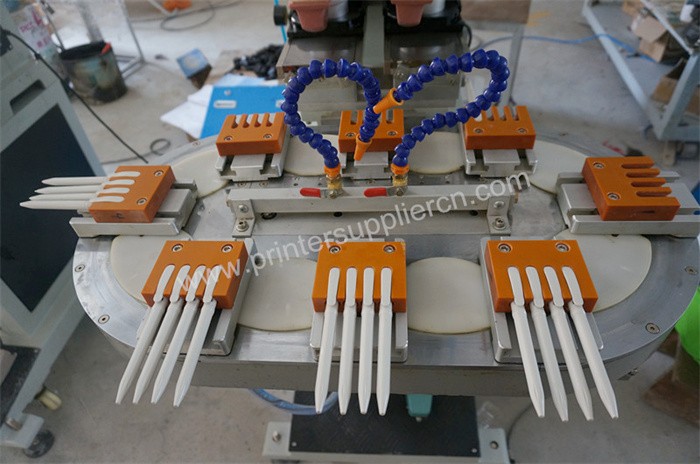

FA-M2/CK is The Two colors closed ink cup pad printer can print on various products, such as plastics, metals, glass, ceramics, etc. Its advantages include high precision printing, fast drying ink, and low ink consumption. It is suitable for small to medium-sized printing runs and can achieve clear and sharp printing results. Additionally, its closed ink cup design allows for easy color changes and minimal ink waste. Conveying products by rotary type turntable. The products can be overprinted with 2 colors. Running a circle can finish one time overprint automatically. It is efficient but need eight fixtures to get the precise place location.  2 Colors Pad Printing Machine is a printing machine that can print two different colors onto a product or surface using the pad printing process. The pad printing process involves transferring ink from an etched plate onto a silicone pad, which then presses the ink onto the desired surface. This type of machine is often used in the printing of logos, labels, and other designs onto products such as toys, electronics, and medical devices.

Comparing with shuttle pad printing, this pad printing machinery comes to a higher steps. The printing speed runs to 1200pcs/hr. It is the system that allows you to print images on curved, textured and flat items.

Function

1. With microcomputer-controller, semi-automatic, utility function, and the operating procedures are flexible and reliable.

2. With aluminum alloy structure frame and metal coating surface, the machine is easy to move but steady

3. With function of leveling ink by sliding automatically on front /back, avoiding printing ink partial solidification

4. Adjustable inking pressure and printing speed meets different printing requirements

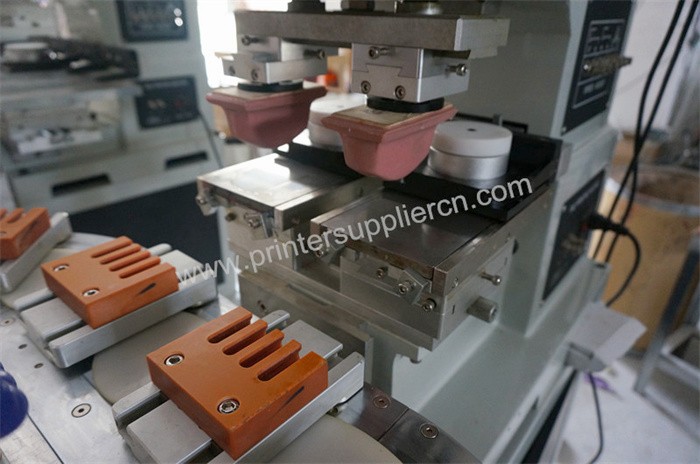

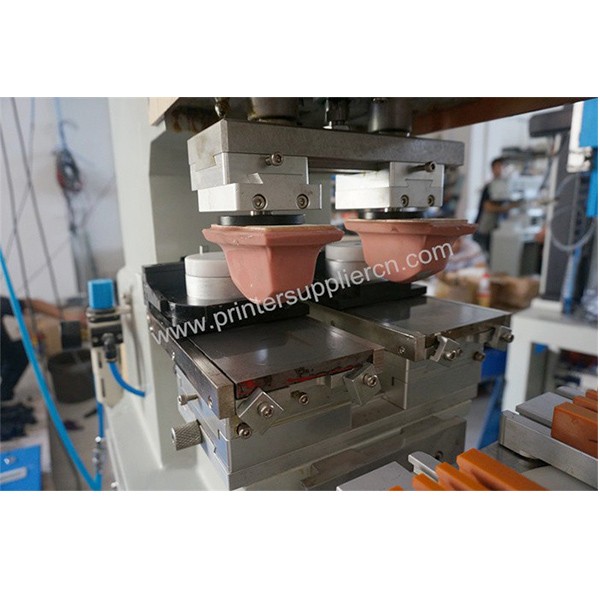

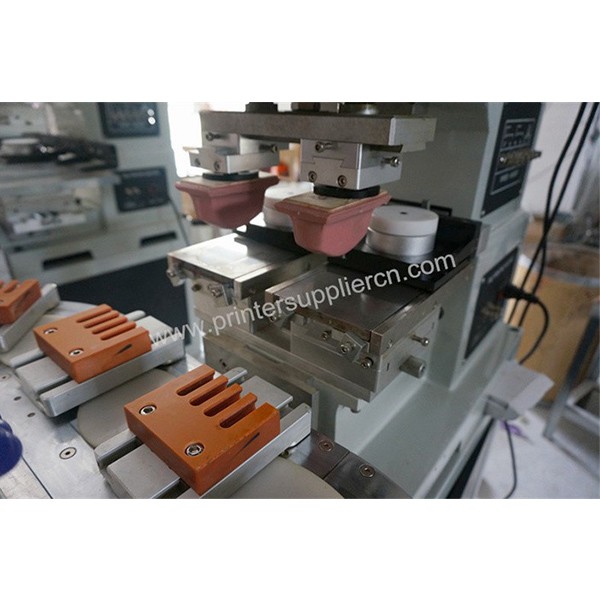

5. Use the oil cup to inking , pro-environment and easy to disassembly & assembly , avoid wasting ink.

6. 360° adjustable rubber pad angle and ±5° adjustable worktable angle ensure repeat precision to be less 0.05mm

7. Worktable, plastic head and ink tray can be adjusted X. Y. Z
