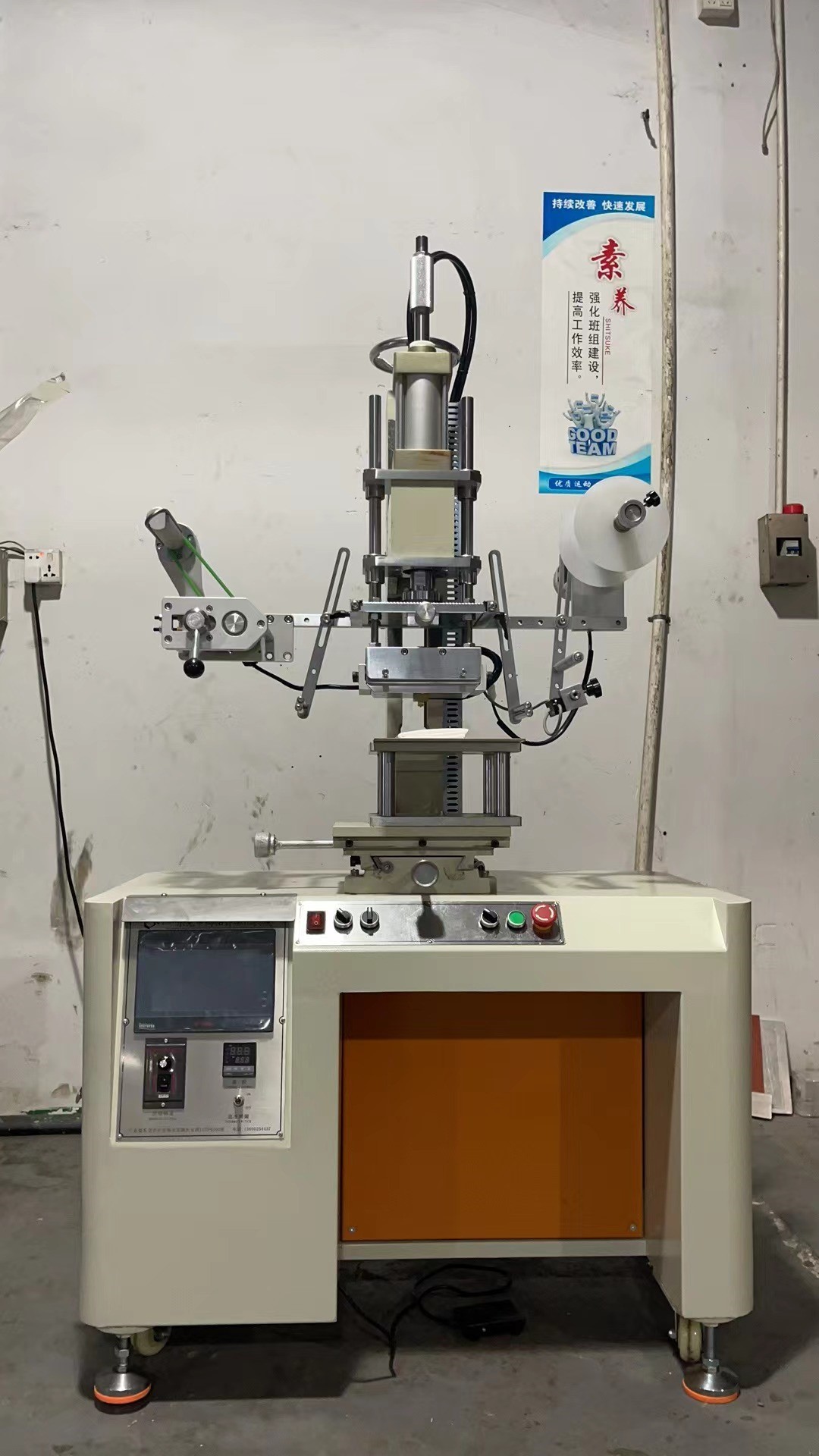

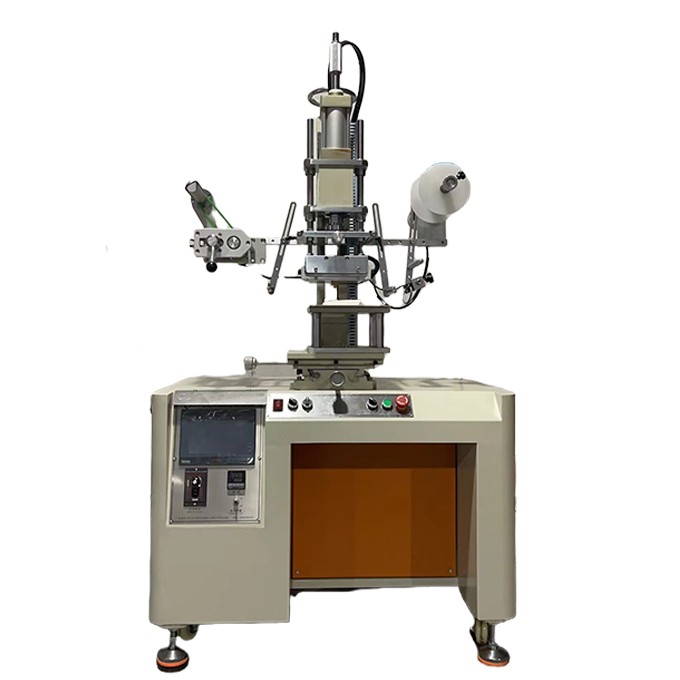

Plane Hot Foil Stamping Machine

Plane Hot Foil Stamping Machine

Application

This hot foil stamping machine is especially designed for flat printing . it could printing different kind of box, jewellery box, paper box,gift box, shopping bag, paper card, napkin, film, and cup, plate etc. it could apply to different product material. Wildly use in different field. Machine could be done with single station. It could be also made with turntable of 4 stations.

Device Configuration

1. The whole machine adopts a reinforced and thickened steel structure body, and the column strengthens the welding ribs, which is sturdy and durable;

2. Car-grade paint baking at high temperature can effectively prevent rust, the appearance is high-grade and generous, environmentally friendly, non-toxic, and not easy to fade;

3. The whole machine has 304 stainless steel screws and Japanese nsk bearing links to ensure the firmness and durability of the whole machine;

4. High-hardness aluminum material, processed through large-scale cnc computer, equipped with oxidized sandblasting, and the appearance is high-grade and generous;

5. Intelligent CNC plc control, intelligent storage of multiple sets of operating parameters. The touch screen displays the human-machine interface design and is easy to understand.

6. Full servo control, the operation of the machine, the movement of the fixture and the swinging of the front and rear of the film are controlled by high-precision servo motor to effectively solve the wrinkle problem.

7. The movement of the membrane is controlled by a numerical control motor, and the structure of the magnetic powder controls the tension of the membrane, which can increase the tension of the membrane and the stability and precision of the movement.

8. Hot stamping temperature, pressure and speed are adjustable, hot stamping delay and roll paper delay can be adjusted to meet different printing requirements;

Equipped with automatic retractable material structure, automatic film removal, improve efficiency and save labor costs;
