Ink Cup Pad Printing Machine

Economic Tabletop Small Pad Printing Machine

Technical Parameters

Item  No.:FA-PAD2

Max.Printing Size:58x58mm

Steel Plate Size:100x200mm

Power:220V 50-60Hz  30w

Transverse Stroke:150mm

Vertical Stroke:75mm

Ink Cup Diameter:60mm

Printing Workstation:1pc

Air Consumption :5-7bar

Printing Speed:2000pcs/hr

  • Product Detail
  • Video

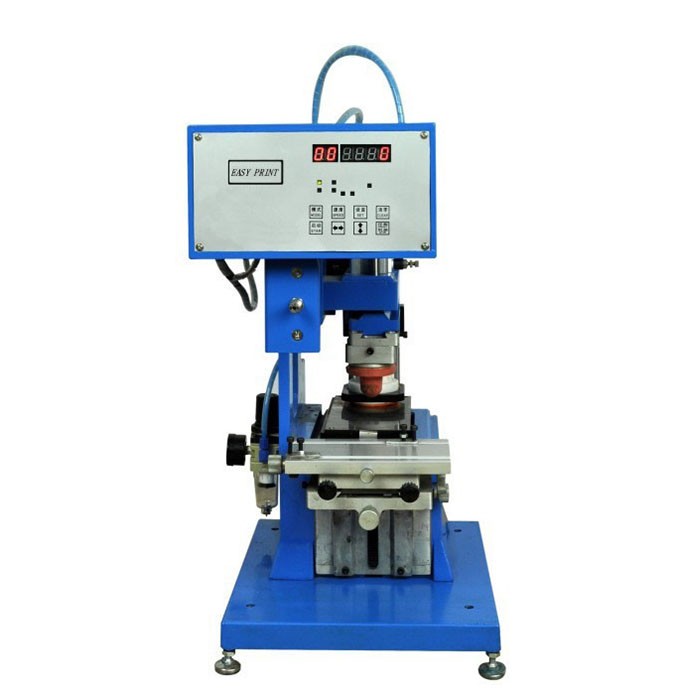

Economic Tabletop Small Pad Printing Machine

Application

electronics, plastics, toys, gifts, handicrafts, household appliances, caps, office supplies, automobile parts, lego, led bulb etc.

Feature

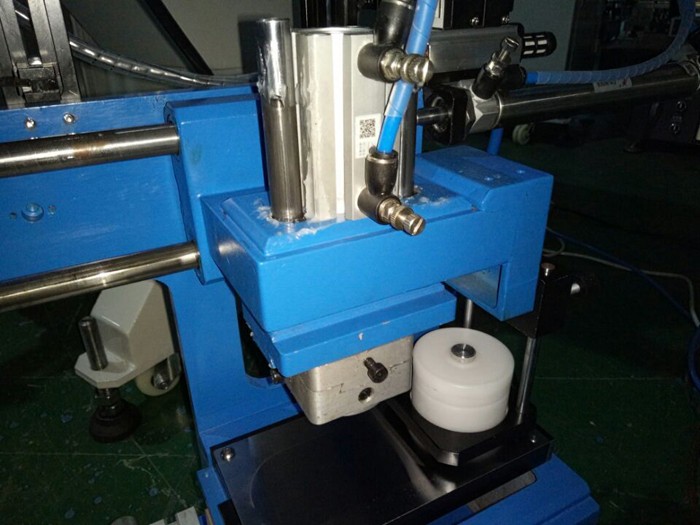

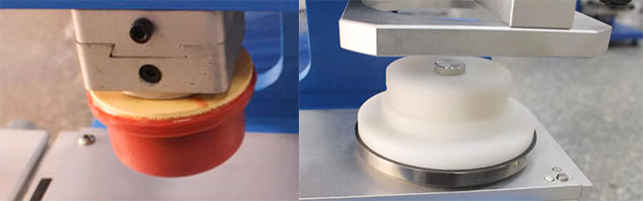

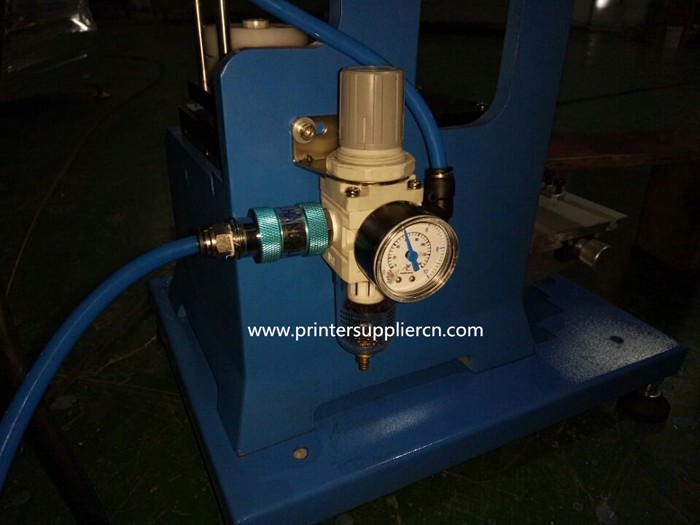

FA-PAD2 is a kind of desktop small machine, which uses pneumatic system and ink cup.  The pad printing machine is suitable for small size printing .It is with high capacity and printing speed could run to 2000pcs/hour.  The machine wins great competition in its COMPETATIVE price. Especially suitable for printing on small footprint,mark, logo on Led bulbs, lego etc. With its steady printing quality,this single color Pad Printer could print variety of surface,such as flat,cylindrical,spherical,compound angles,textures,convave surfaces,convex surfaces etc. It is suitable for pad printing at home as well.

Function

1. Microcomputer controls each functions,easy to operate. 2. Auto 4-digit counter built-in. 3. Printing speed can be adjusted to suit different printing requests. 4. It has three models,manual/semi-auto/full auto. 5. Machine frame made of high quality aluminum alloy, light and rigid.

small pad printing machine
