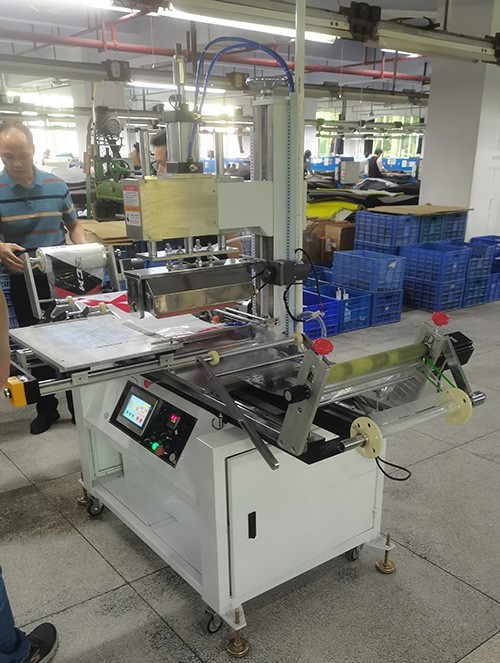

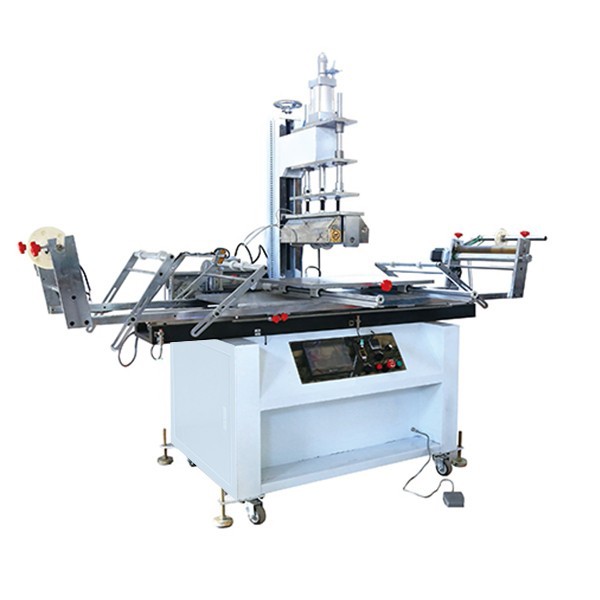

Big Size Flat Heat Transfer Machine for Washing Machine Panel

Big Size Flat Heat Transfer Machine for Washing Machine Panel

Big Size Flat Heat Transfer Machine is a high-capacity, industrial-grade equipment designed for transferring prints, designs, or coatings onto large, flat surfaces. It is widely used in various industries such as appliance manufacturing (like for washing machine or refrigerator panels), furniture production (for door or table surfaces), sign-making, and the automotive sector for decorating dashboards or interior panels

Feature

1 PLC+touch screen control program, all parameters can be set digitally, driven by pneumatic components, and easy to operate.

2. The shuttle of the worktable is driven by a turbine motor, which is stable and high in accuracy.

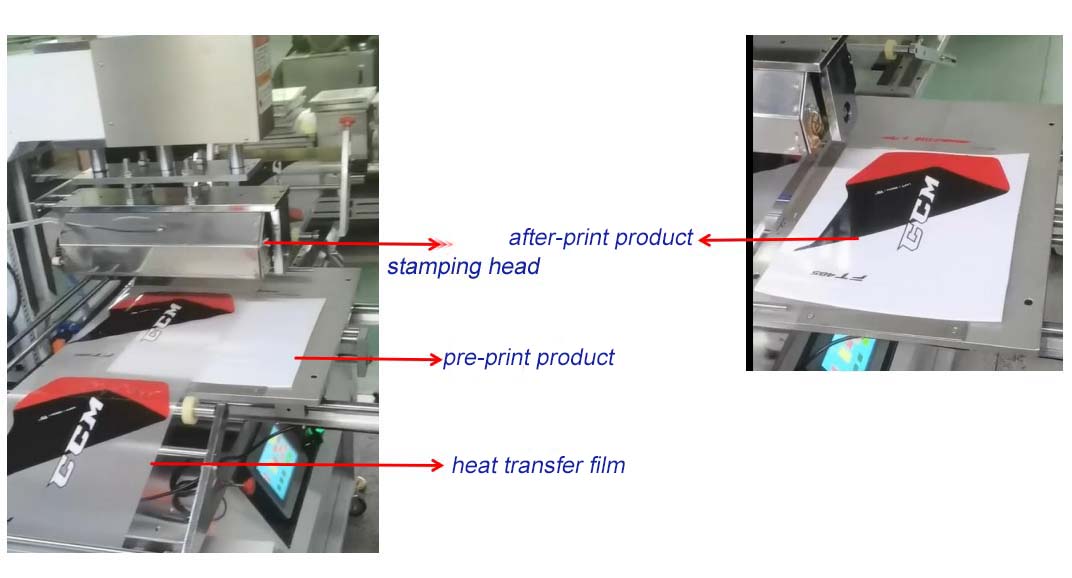

3. The rubber roller rotates for heat transfer and hot stamping. The rubber roller contacts the processing surface in a straight line to avoid the defect of bubbles,

Uniform and beautiful patterns and characters can be obtained.

4. It is equipped with high-precision photocell (electric eye) to track and control the transfer paper with contact.

5 The hot stamping pressure, temperature and speed can be adjusted.

6 The worktable stroke can be adjusted to facilitate the transfer of workpieces of different lengths.

7 The position of hot stamping head can be adjusted to meet the needs of workpieces with different heights.

8 Automatic paper feeding and receiving and adjustable.
