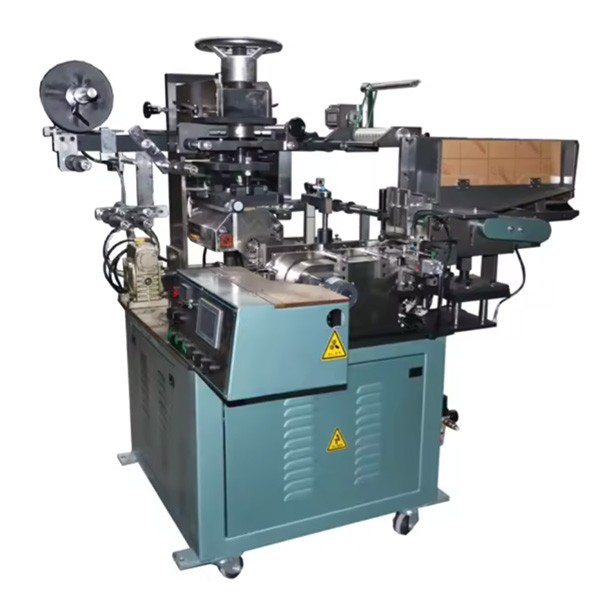

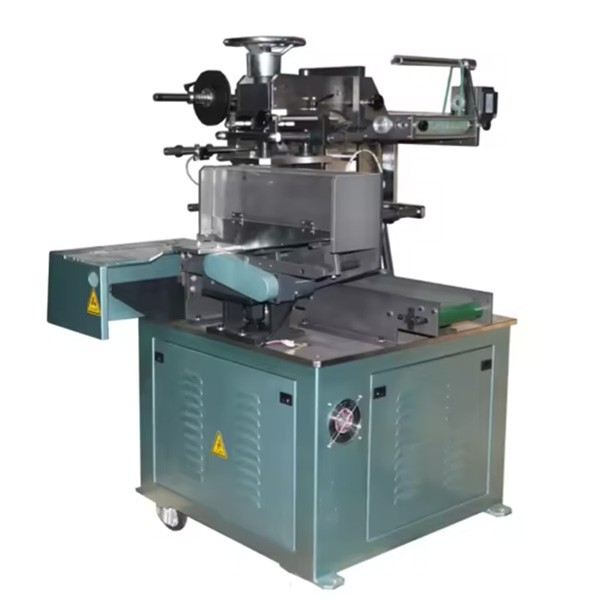

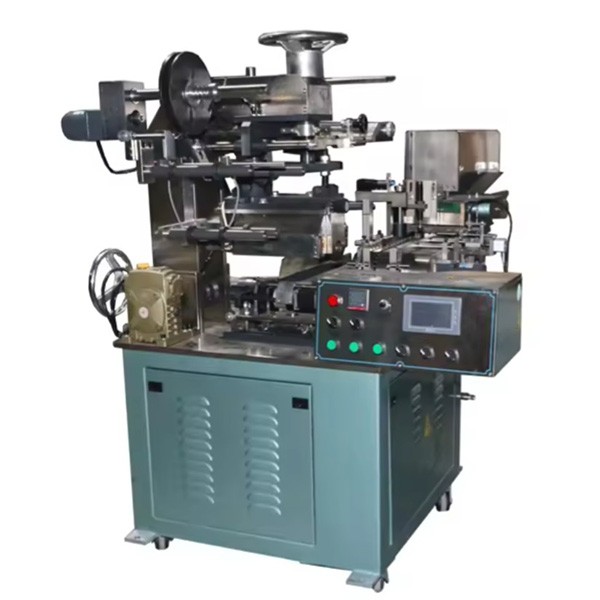

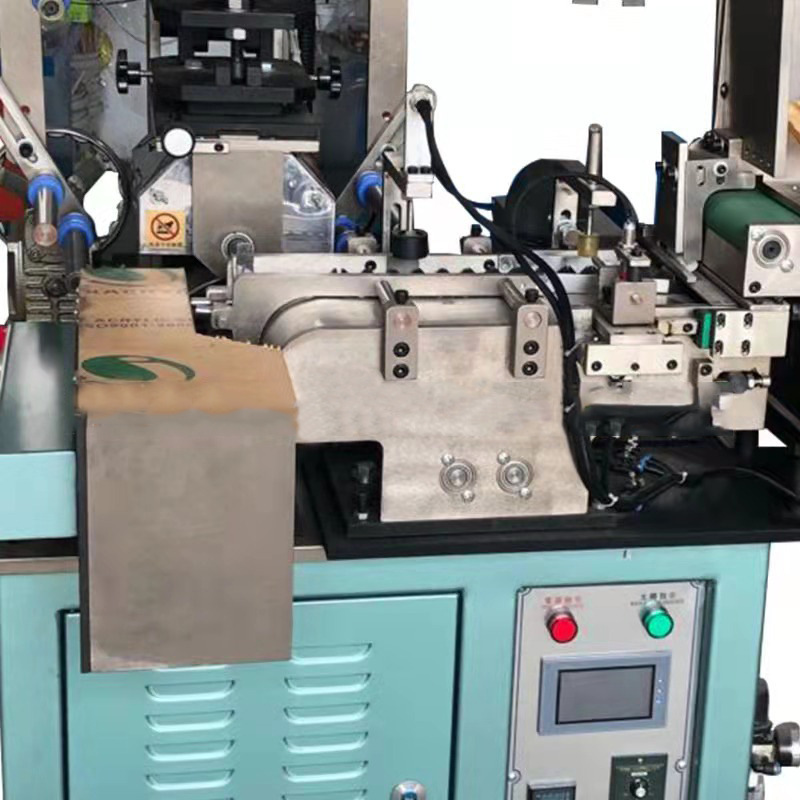

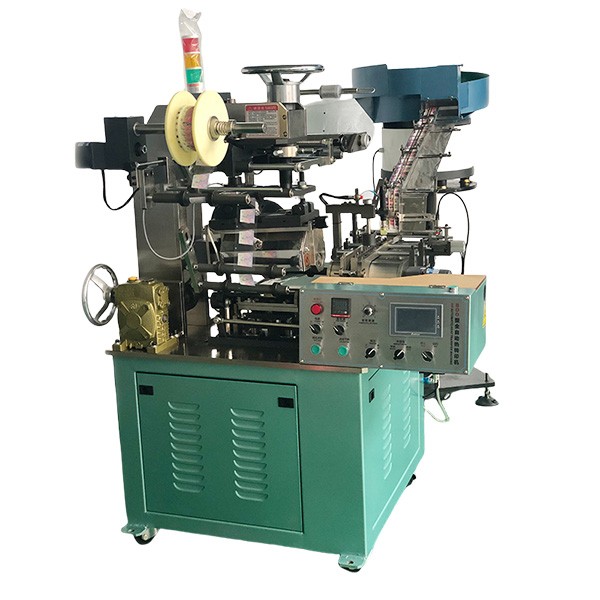

Automatic Pen Heat Transfer Machine

Automatic Pen Heat Transfer Machine

This machine is especially made for heat transferring on small round tube products, such as a ballpoint pen, pencil marker,whiteboard pen, gel pen, pen, pencil, lipstick,medical syringes, bamboo chopsticks and othersmall-diameterheat transfer decoration of objectsdesigned for fully automatic surface heat transfer machine. The high printing speed, print quality andstability. Automatic loading and unloading, savinglabor intensity, and rocker transport mechanismrunning smoothly

Feature:

1. Fully automatic feeding or conveyor belt feeding, suitable for mass production of stationery, cosmetic pipe fittings

2.Adopting a stepper motor for paper collection, with automatic precision pre positioning, and two sets of servo photoelectric eye positioning systems for front, rear, left, and right

3.Adopting imported splitter and mechanically linked

4.Automatic electrostatic dust removal before and after hot stamping

5.Automatic film winding, equipped with a five digit counter

6.The rubber roller rotates for heat transfer  & hot stamping, and the height and front and back slope of the hot stamping head can be adjusted. The hot stamping pressure, temperature, and speed can be adjusted.

7.Equipped with high-precision photoelectric tubes (electric eyes), it can track and control the transfer paper with contacts in place. Use a timed feeding method for transfer paper without contact points.

8.PLC control, programmable terminal LCD display, built-in various operation control programs and adjustable parameters
