Automatic Two Colors Triangle Ruler Pad

Automatic Two Colors Triangle Ruler Pad Printing Machines

Automatic Two Colors Triangle Ruler Pad Printing Machines

Technical Parameters

Model No. :FA-2R

Max.Printing Diameter :90mm

Max.Printing Area:150x350mm

Transverse Stroke:150mm

Vertical Stroke:75mm

Max.Plate Size:100x500mm

Power:220V 50-60Mhz 1kw

Printing Speed:1500 pcs/hr

Printing Worksatation:16pcs

Weight:350kgs

Automatic Grade:Fully-automatic

Usage:Ruler,scale

Product Detail
Video

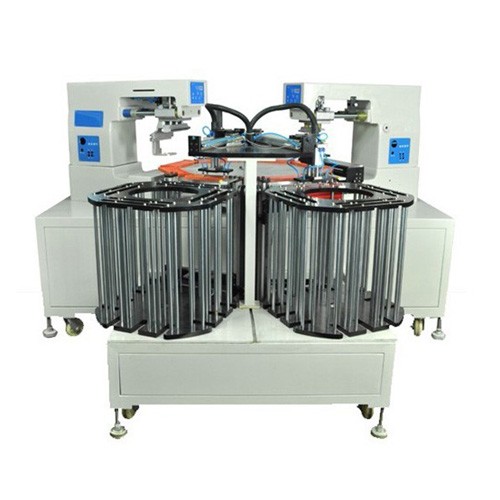

Automatic Two Colors Triangle Ruler Pad Printing Machines

Machine Feature

The Two Colors Triangle Ruler Pad Printing Machines is special designed for printing rulers. It can print two rulers at one time with 16PCS workstations, feeding, printing, baiting at the same time, improving printing efficiency.
Machine Advantage

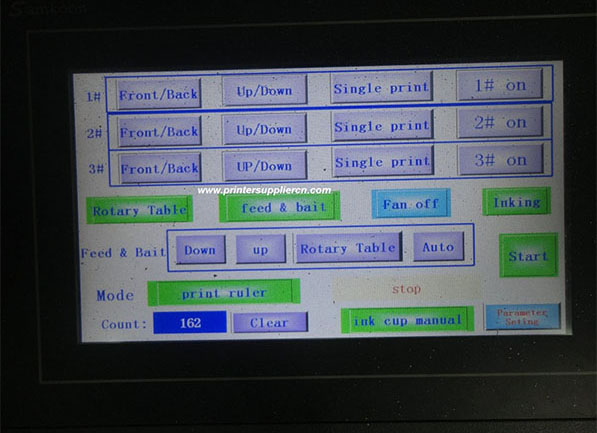

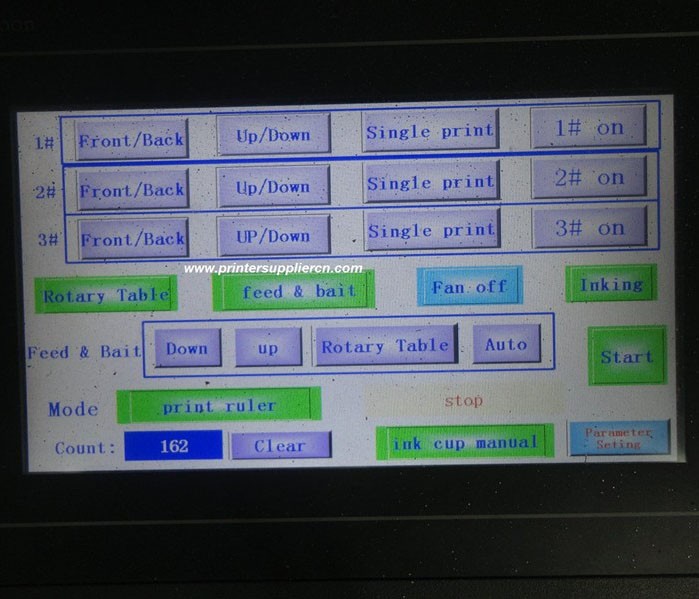

1. PLC with touching screen compile programming;
2. Using SMC (Japan) and Taiwan pneumatic parts;
3. Two color pad printing, precision over-printing, fast and stable, perfect printing quality;
4. Printing speed: 1, 100 ~ 1.200 times / hr, print two rulers at one time;

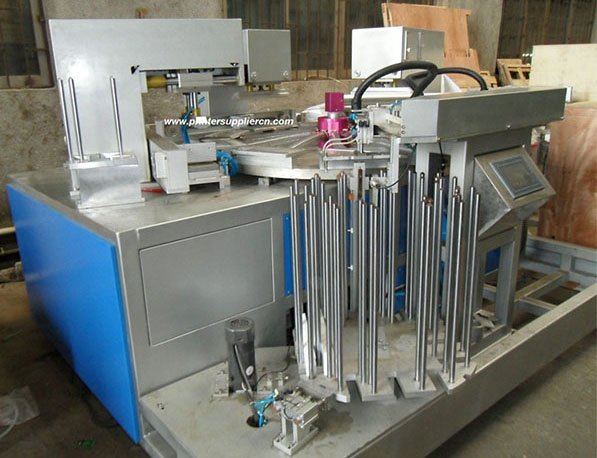

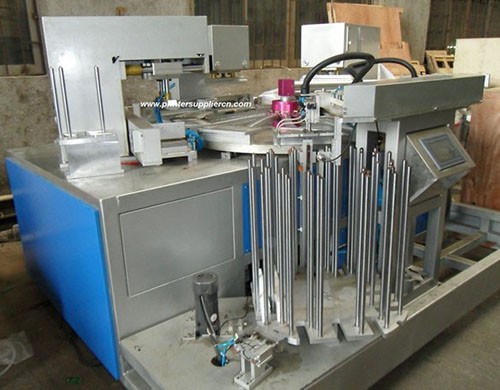

5. Up/down store holder system, folding automatically;
6. Transverse ink cup system, ink-save and enviromental

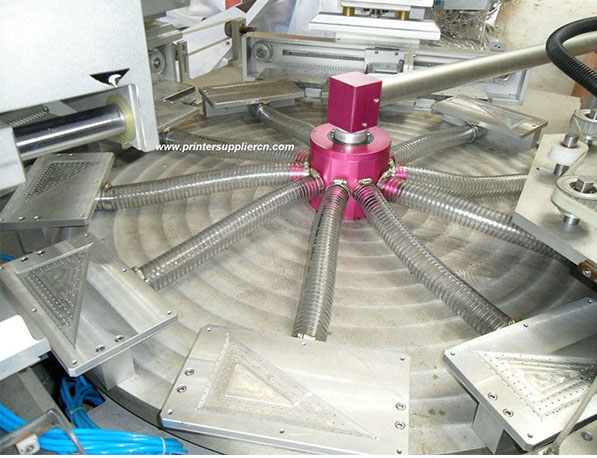

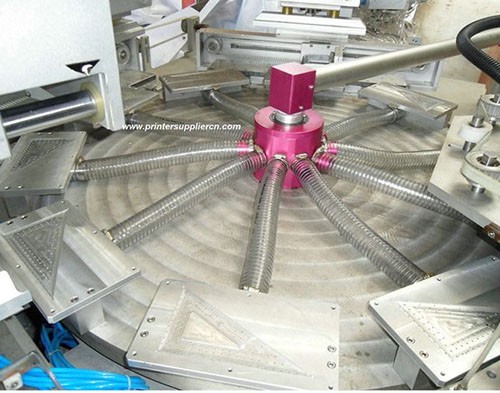

7. Locating by keeping one side with high vacuum function;
8. Auto drying system after printing;

9. Operate step: Feeding by vacuum pad - auto printing - auto baiting - auto drying. No need person to operate;
