Automatic Screen Printing Machine for Glass Cover and Screen

Automatic Screen Printing Machine for Glass Cover

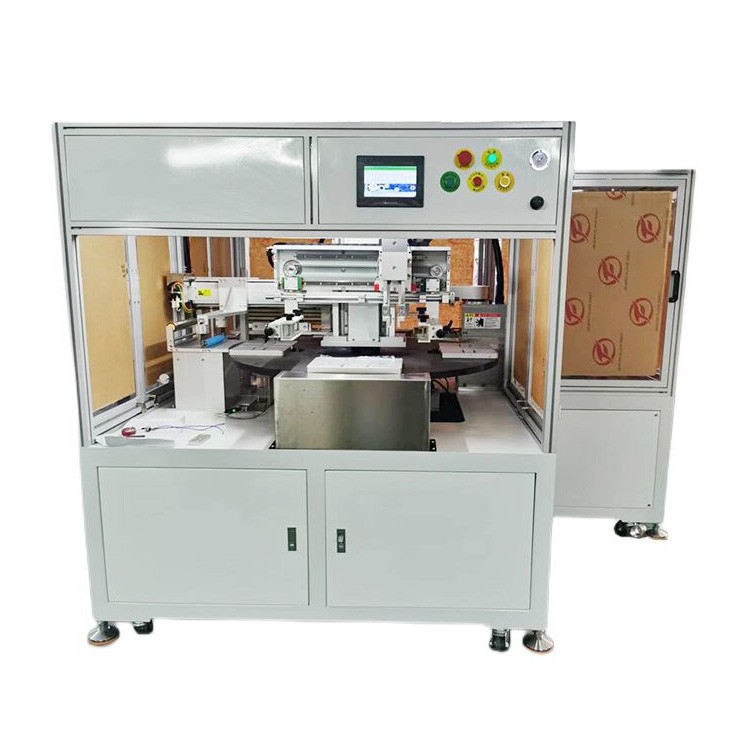

The Automatic Screen Printing Machine for Glass Covers is a special machine made to print beautiful designs very carefully and quickly onto glass covers. It uses smart computer controls and a simple-to-use screen for the person operating it. This screen print machine can put different colors on the glass all at once, making detailed printing easily. The equipment is with automatic unloading system to make efficient working. Perfect for businesses that want to make lots of high-quality glass covers!

Product Features

1. The tray is transported using a stepper motor+conveyor belt.

2. The lifting part of the screen printing machine adopts servo motor+screw guide rail to drive the lifting.

3. The sliding position of the printing head of the screen printing machine is driven by a stepper motor+linear guide rail+synchronous pulley.

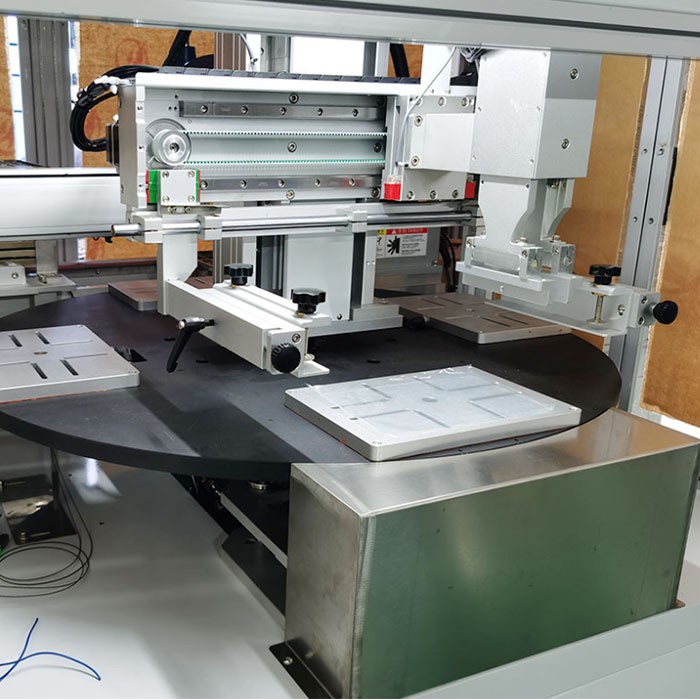

4. The rotary statipn part adopts a high-precision 4-station divider.

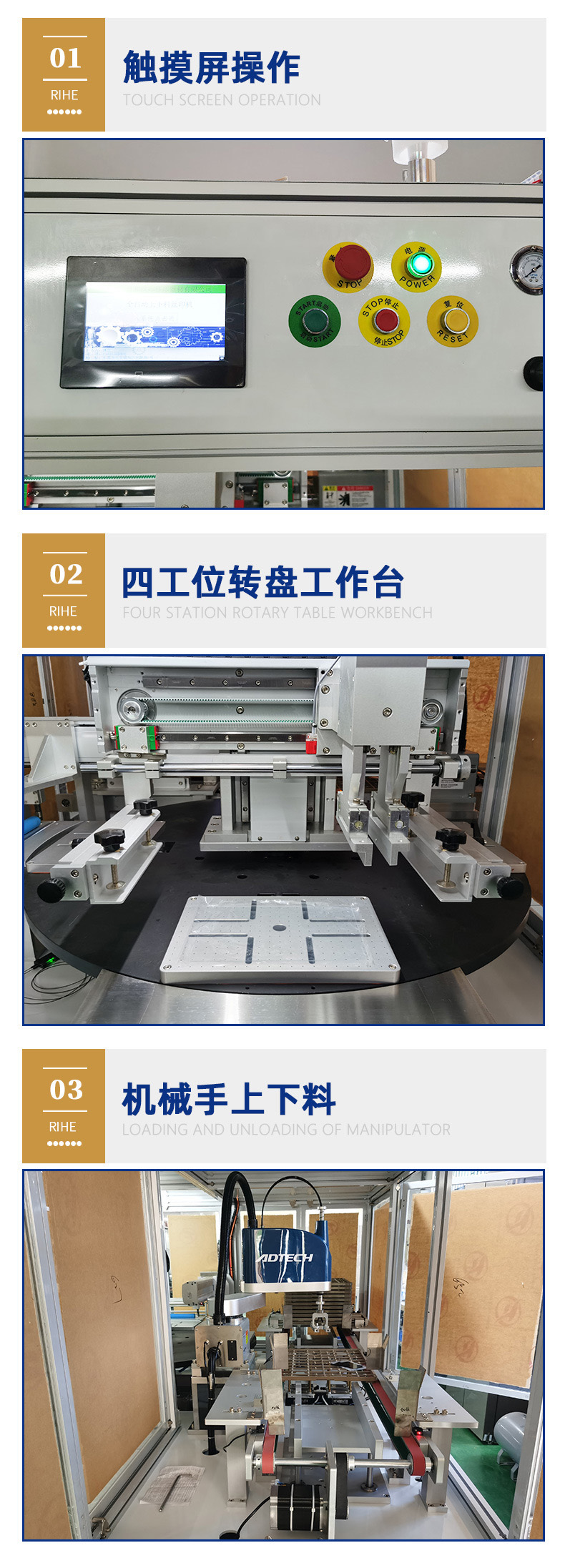

5. Using PLC and touch screen control, stable operation and simple operation.

6. An antistatic roller cleaning mechanism is provided before printing.

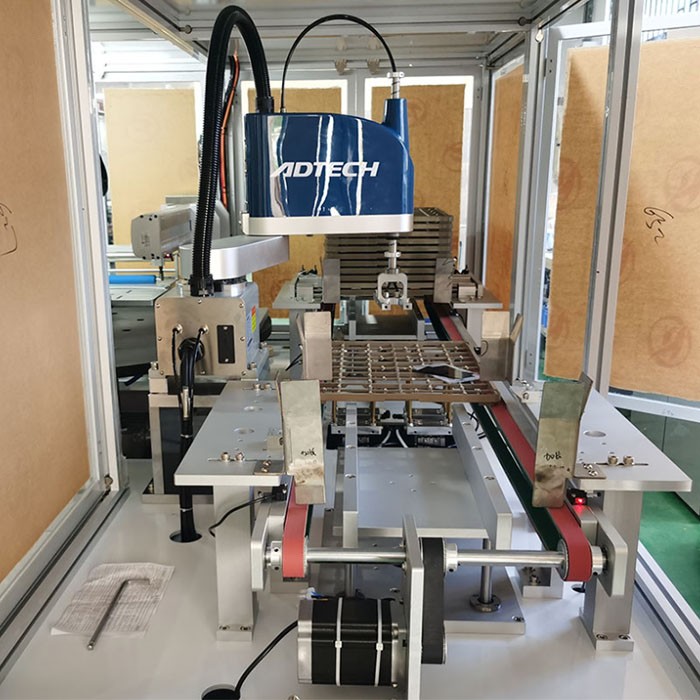

7. The product is automatically loaded and unloaded using a 4-axis parallel manipulator.

8. Product positioning adopts ejector pin and push rod positioning.

9. The equipment is equipped with a safety interlock device that combines mechanical, electric, and pneumatic circuits, and has abnormalities alarm stop.
