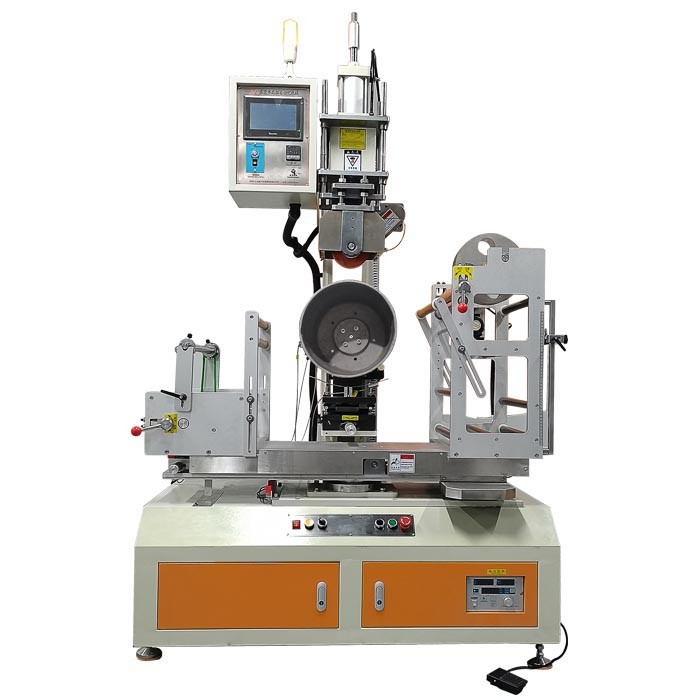

Automatic Heat Transfer Machine for Big Bucket

Automatic Heat Transfer Machine for Big Bucket

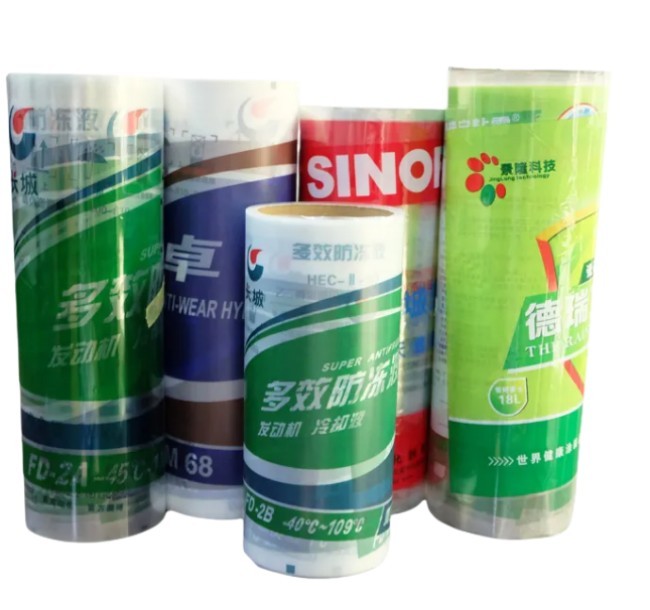

When applying thermal transfer printing to big plastic buckets, eg, paint barrel, hygiene bucket, lubricating bucket, chemical pails, gallon bottle, we will meet the  challenges caused by  large diameter and tapered shape. The transfer film may wrinkle or distort during application, leading to uneven printing. In order to get avoid of this problem and make the printing effect more precise,  we  adopt not only the fan-shaped heat transfer film, but also the fan-shaped film feeding track table. The larger part of the fan-shaped design rotates over a greater distance, while the smaller part rotates over a shorter distance. This adjustment ensures the heat transfer film fits tightly and seamlessly around the bucket during thermal process.

Advantage:

Pressure cylinder: control mechanical pressure can be upgraded to servo motor structure to achieve mechanical pressure numerical control of film structure

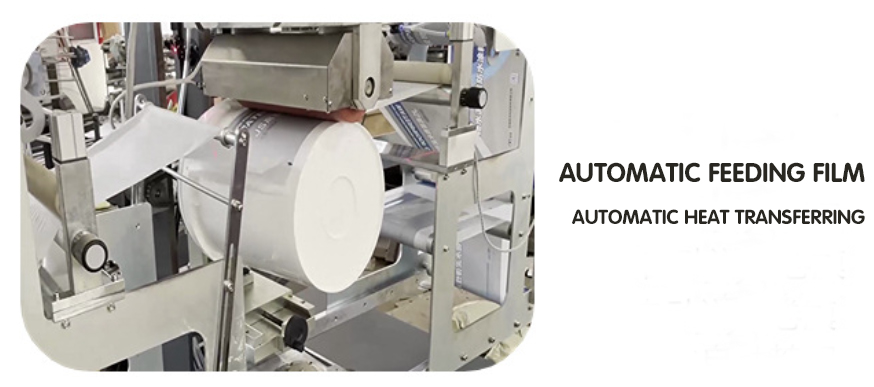

Film Feeding & Discharging Structure : automatic filming driven by servo motor control

Automatic Film Swing Structure: control mechanical swing with servo control can achieve mechanical swing digital intelligent control

Touch screen: by input the top bucket diameter, bottom diameter and height of different product , machine could be operated.

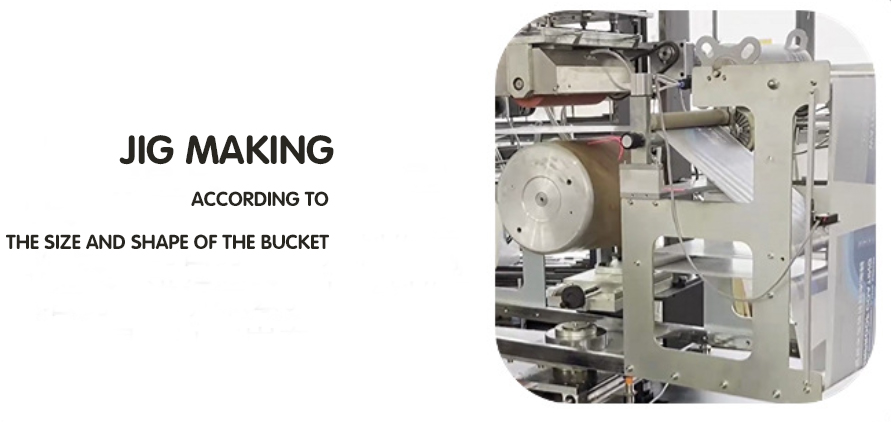

Fixture Adjustment: according to the product bucket position, adopting servo rotating motor to control machine intelligent working.

Tension Controller:  using magnetic particle technology to ensure the stability of the transfer film tension

Air Pressure Sensor: hot stamping pressure, temperature, speed, time is adjustable

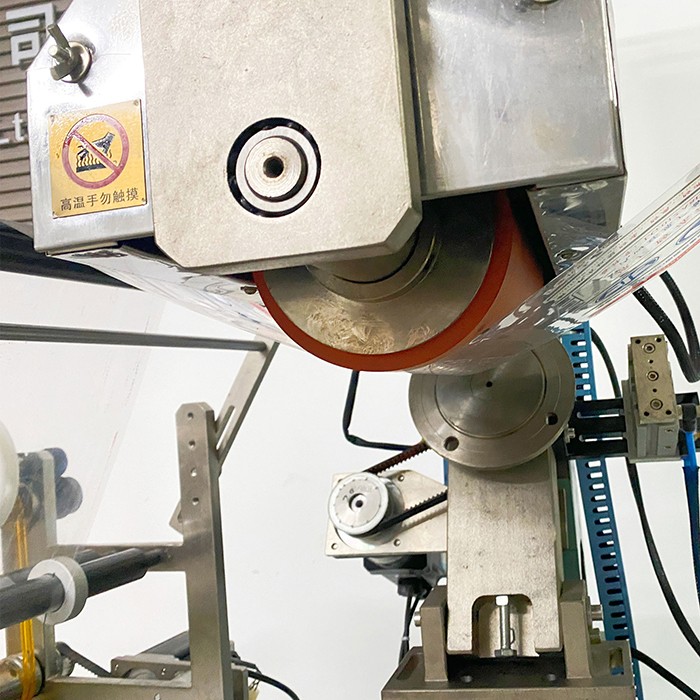

Dual temperature control thermal design to ensure more stable adhesion with film & bucket

Transfer speed :up to 4 seconds a lap.

Feature:

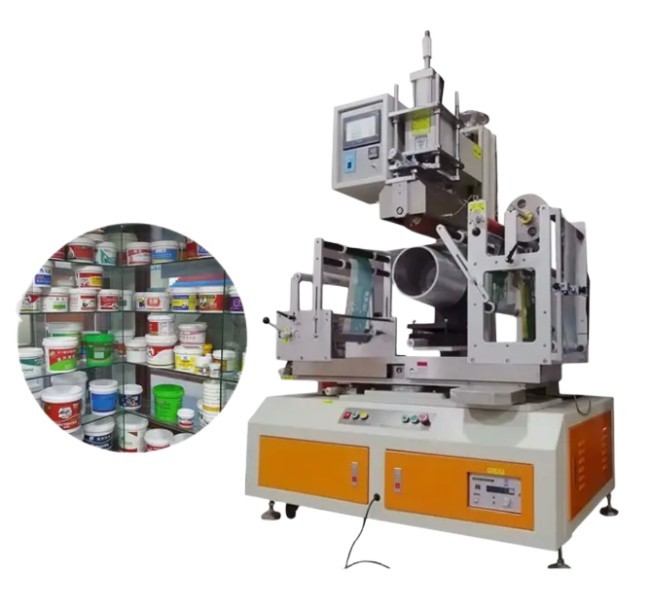

The heat transfer machine is an equipment suitable for printing different kind of barrel/bucket , such as oval barrel, square barrel, round bucket, oil barrel and so on. Compared with the traditional screen printing, the heat transfer products are more bright, three-dimensional, and strong adhesion, It is widely used in educational supplies, cosmetics, toys, electronic products, infant products, daily use, home appliances and other industries and packaging decoration.

1.CNC Intelligence: This bucket thermal transfer machine runs digitally. You can easily change its settings on the touchscreen by entering parameter for bucket upper diameter, lower diameter and heights. And it could store these setting information for next time printing purpose.

2.Servo-driven Correction Structure :The machinery is equipped with a servo-driven correction structure design. It will automatic adjust if there is deviation during film movement (the servo-driven correction feature needs to be optionally configured).

3.Pressure controlled: Pressure is controlled by a servo system, which allows for precise and adjustable speed control during downward pressing. This brings digital and intelligent control of mechanical pressure (a servo press motor with matching configuration needs to be optionally selected for this feature).

4.Film rewinding：It is powered by a servo motor, while tension is managed using magnetic particle technology, ensuring stable film operation .

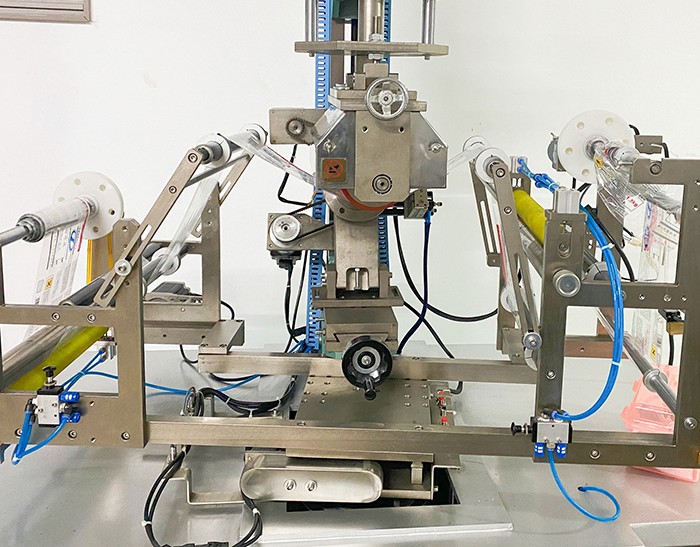

5.The machinery adopts a pendulum swing design and uses fan-shaped films, providing stable printing effect. This thermal transfer machine could directly integrated with an injection molding machine to achieve full automation.

6. The machine can print 1 ~ 30 liters of barrels, easily to change product transferring.

7.The swing is controlled by a servo motor, and the mechanical swing can be controlled digitally without adjusting the mechanical slide rail and guide rail.

8.Machine with lower swing type and filming structure, , makes mechanical printing and printing film more stable.

9. The servo motor is used to control the mechanical rotation. The mechanical rotation is stable and can be controlled digitally to realize the intelligent rotation of the jig.

10. High printing accuracy, interface misalignment +/-0.5mm

11.Long service life, the normal service life of the machine for the four-year core components, warranty for two years
