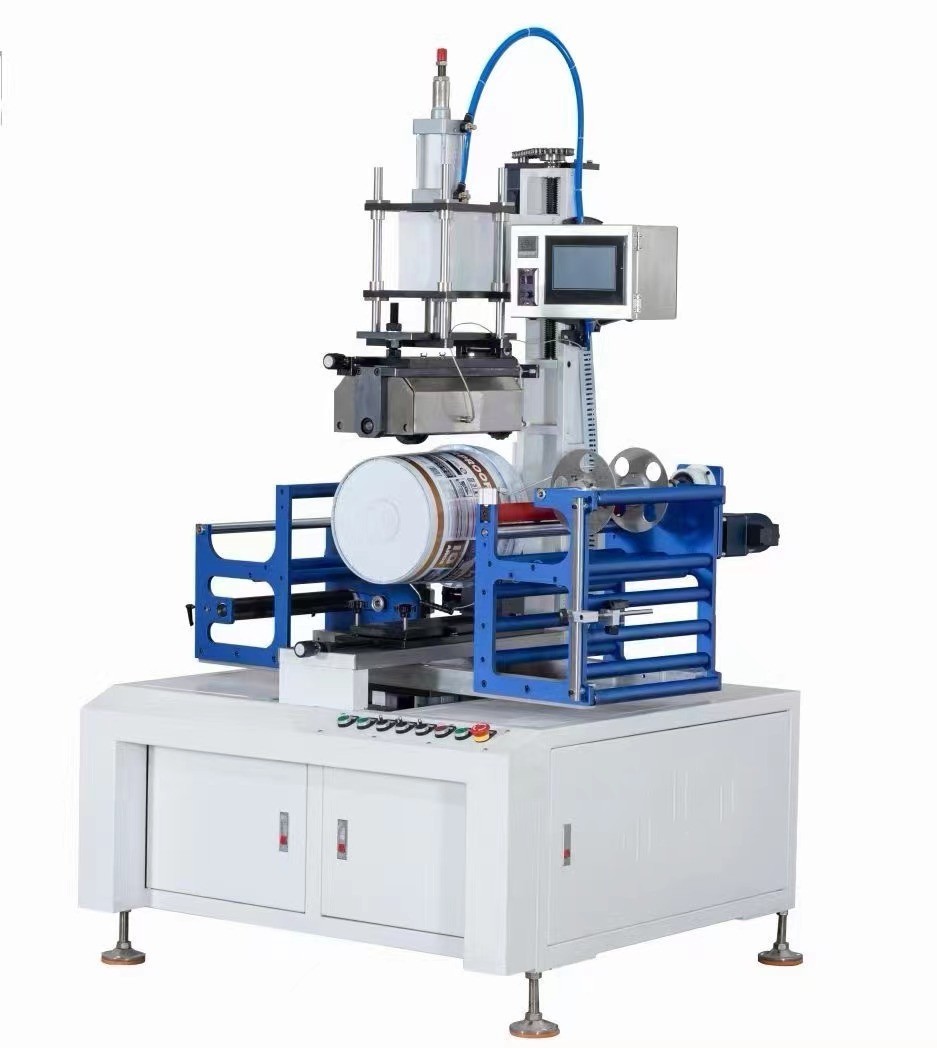

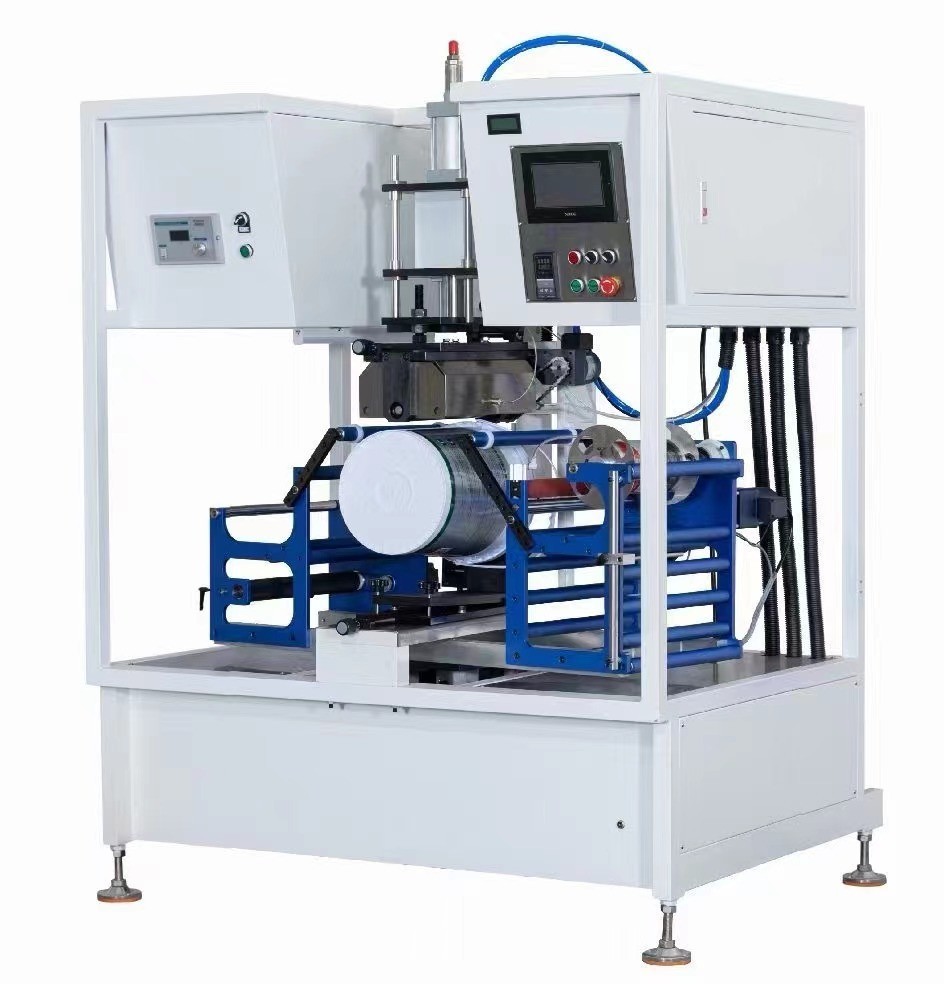

Automatic Heat Transfer Machine for plastic 5 Gallon Bucket

Automatic Heat Transfer Machine for  5 Gallon Bucket

Advantage:

1.PLC controller from Japan, easy to operate, automatic working by three parameters: Perimeter of bucket top and bottom, bucket height.

2.Adopt import air pressure sensor, hot stamping pressure/speed/temperature/time are adjustable

3.The jig holder base can be adjusted angle , front or back position

4.Max printing speed is 4 seconds circularly

5.Tension control system makes heat transfer film smooth without wrinkling.

6.High precision import sensor combine with double-side feeding film

7.Heat transfer pattern is stable, especially suitable for Bar code and QR code

8.XYZ triaxial servo match the taper and working track ,which can make sure heat transfer is high precision position.

Feature:

This bucket heat transfer machine adopts PLC control. It enables fast computing speed and stable performance..

The Machine with Touch screen display & human-machine interface design make it easy to control operation configuration

Automatic transfer film feeding and discharging structure, thermal film automatic positioning. These greatly improve working efficiency.

Mechanical parts are precisely processed by large CNC computer gongs, sand blasting oxidation processing, and by slow wire precision processing to ensure accuracy and smoothness.

This thermal printing equipment adopts servo motor to control the machine running and jig movement.

The whole servo control, the running of the machine and the movement of the fixture are all controlled by the servo motor, combined with the rotary deceleration system and the precise planetary deceleration structure, ensures the stability of the whole swing movement, and effectively solves the wrinkle problem.
