Tabletop Optical Fiber Laser Marking Machine

Technical Parameter:

Model: FA-TF20W/TF20W/TF35W/TF50W/TF60W/TF100W

Laser Wavelength: 1064nm

Laser Power:20W /30W/35W/50W/60W/100W

Overall Power:<400W/≤600W/≤800W/≤1KW

Frequency Range: 20-80KHz

Beam Quality: ㎡<1.2-1.5

Pulse Width Range: 200ns

Marking Speed: ≤8000mm/s

Minimum Line Width:0.5mm

Minimum Character:0.01mm

Repeatability Precision: <0.01mm

Marking Range: 100*100mm/150*150mm/ 300*300mm

Marking Depth: 0-5mm

Cooling Mode: Air Cooling

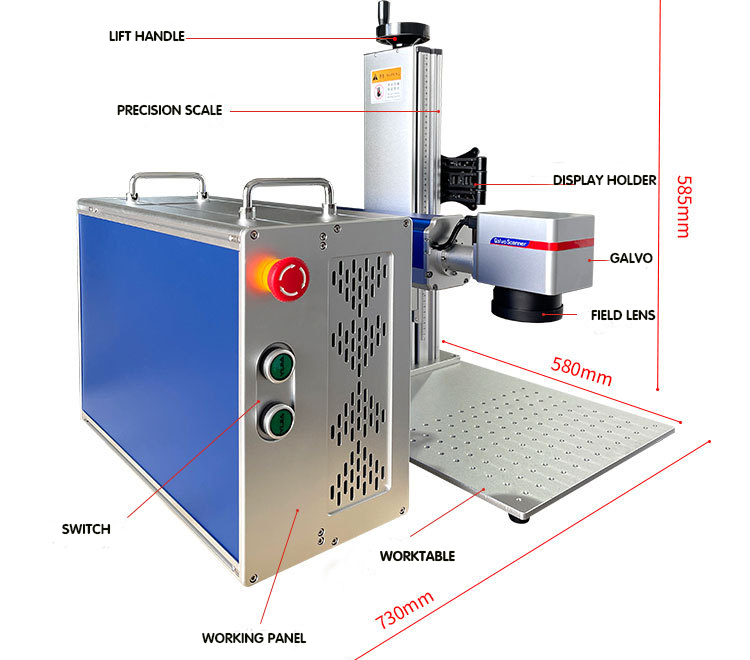

Machine Size: 730*580*585mm

Product Detail

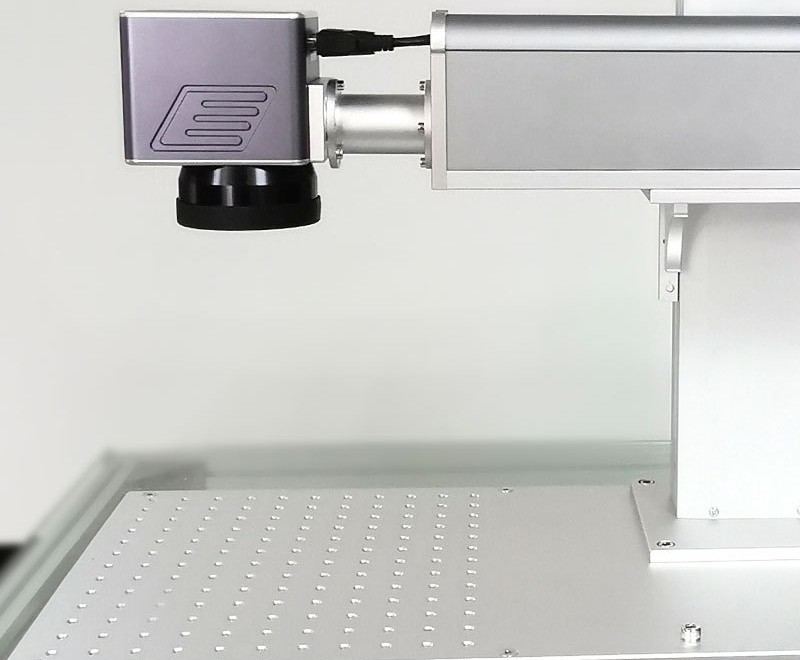

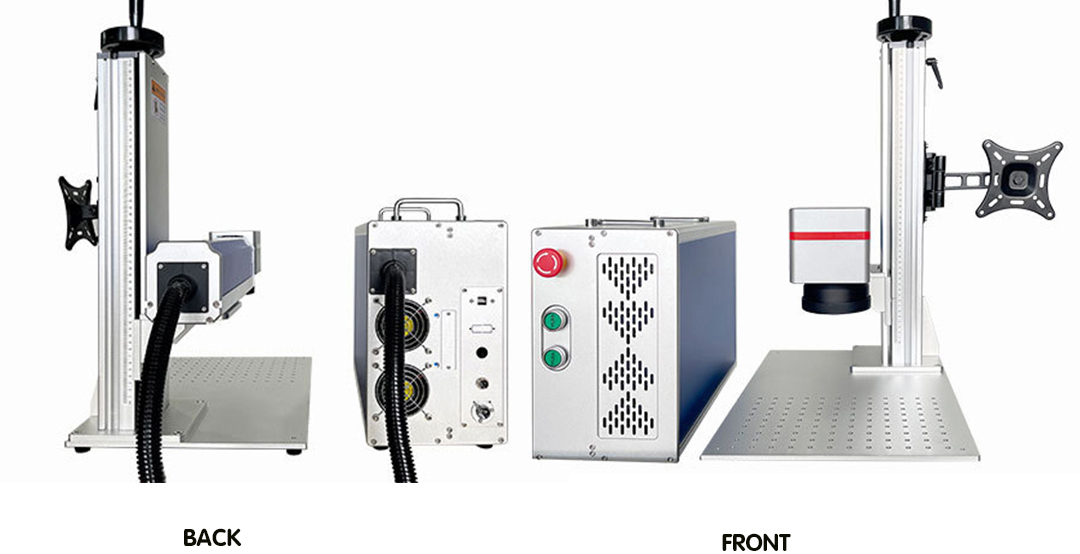

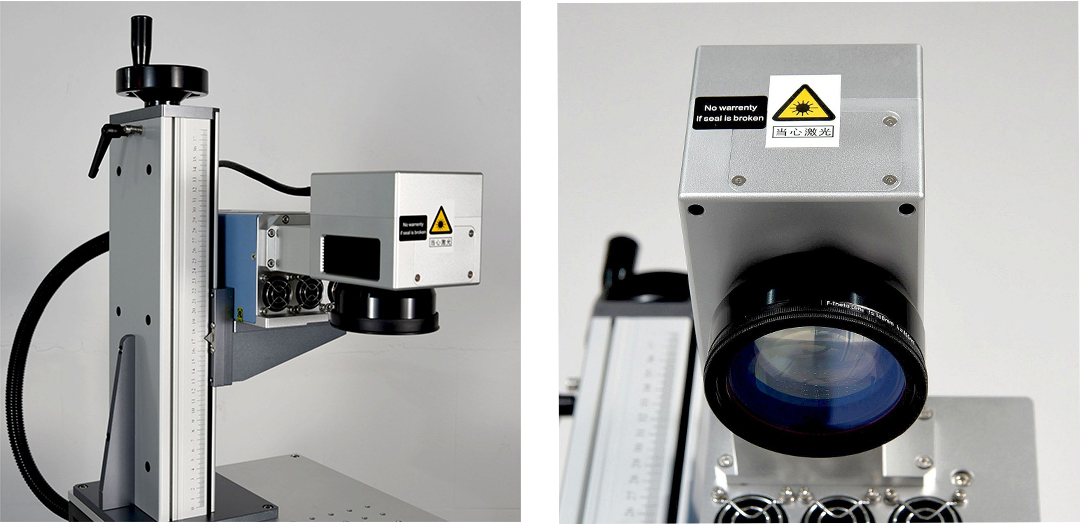

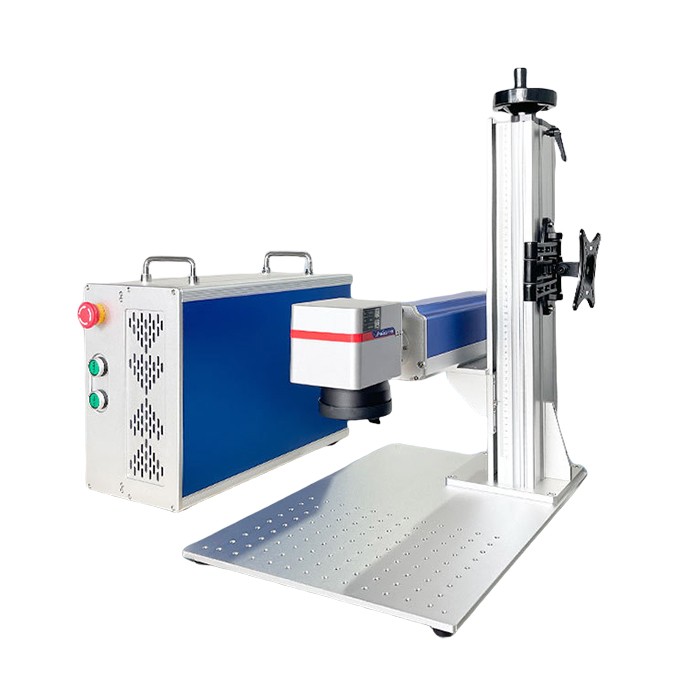

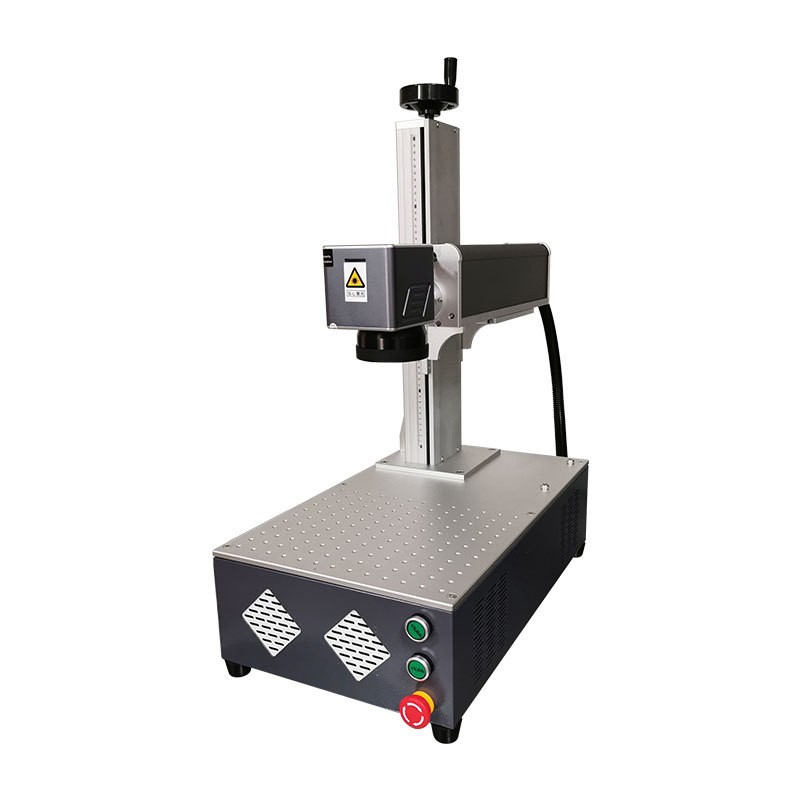

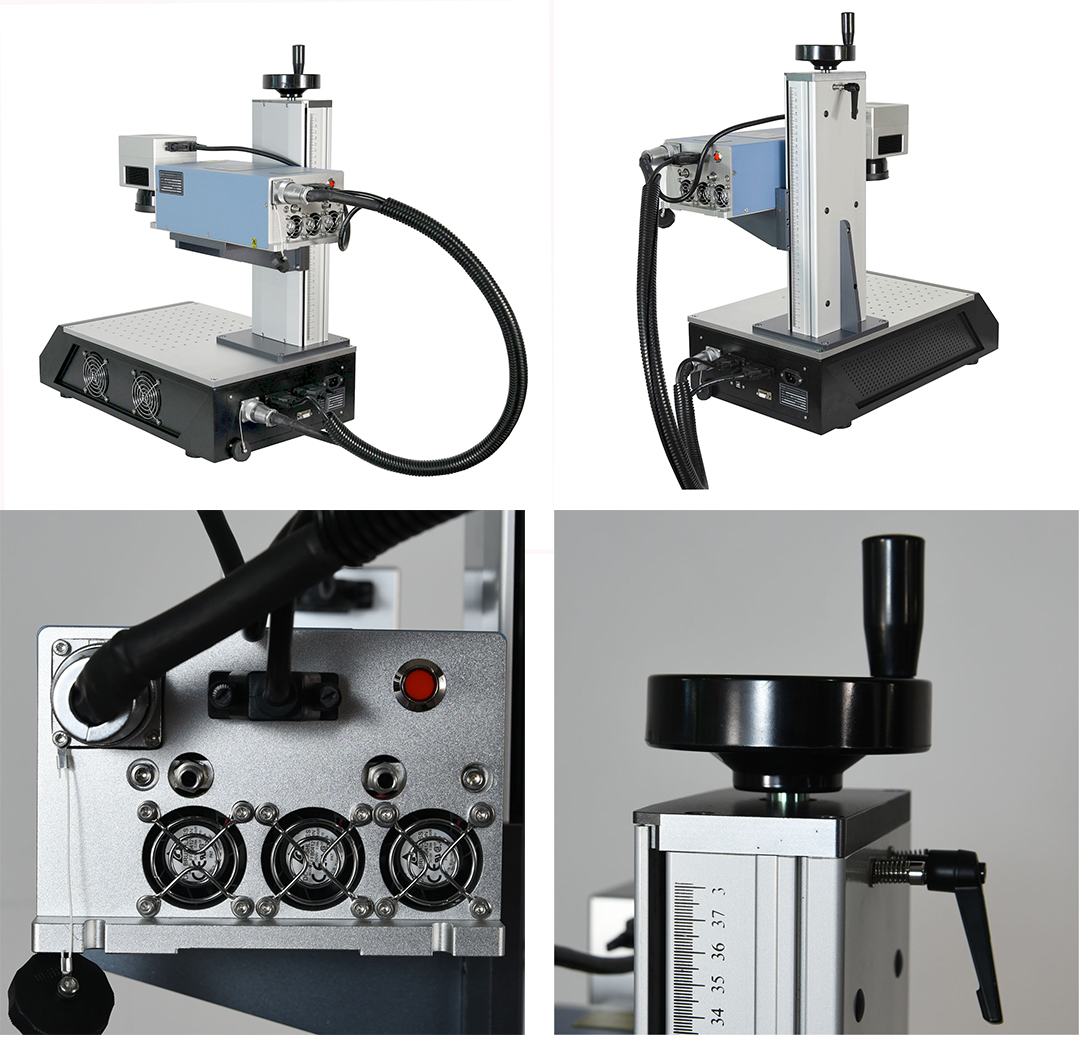

Tabletop Optical Fiber Laser Marking Machine

The desktop optical fiber laser marking machine has high electro-optic conversion efficiency, adopts air-cooled cooling mode, small size, good output beam quality.high reliability, ultra long operation life, energy saving, and can carve metal materials and some non-metal materials. lt is mainly used in the fields with high requirements for depth, smoothness and fineness.Portable optical fiber laser marking machine can make more space and install moreequipment or operators, so as to produce more products and increase more economic benefits. Secondly, the portable fiber laser marking machine is more convenient in handling, a person can move, and can be transported by air.

tabletop fiber laser printing machine
