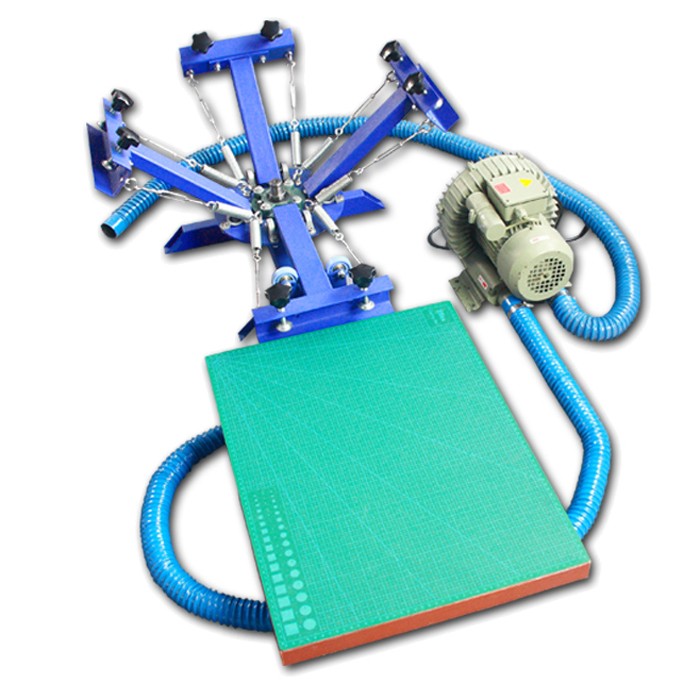

4-1 Color Vacuum Screen Printing Machine

4-1 Color Vacuum Screen Printing Machine

Feature

1. Simple, but rational and more practical constructions; Table type and combinatorial design saves place and convenient for transportation.

2. High intensity PVC board is waterproof, cutting and friction resist, non-deforming, which guarantees a long lifespan;

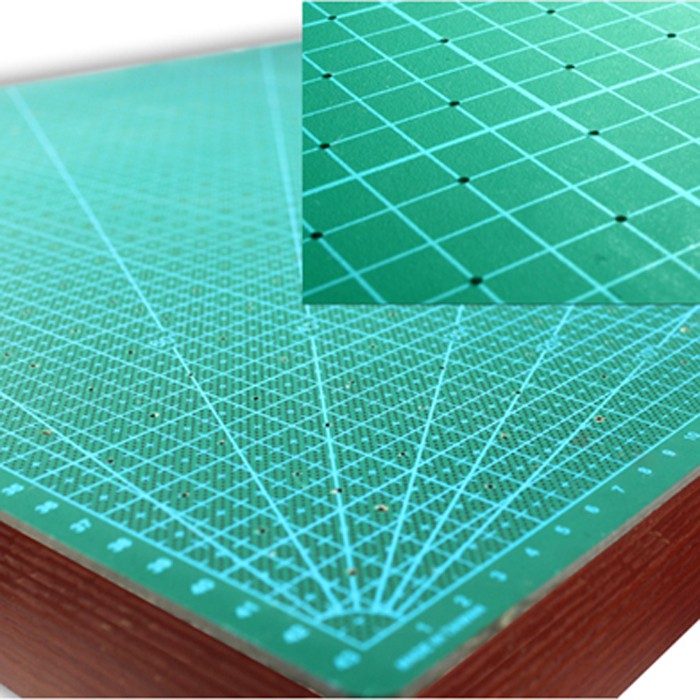

3. Its holes on the printing bedplate is 1.0mm (normally 1.5mm) in diameter, 2cm in separation distance, which guarantees more even inhaling and also improve the printing quality;

4. There are longitudinal and transverse scales on bedplate, which helps place substrates on the right location.

5. The air pump is separated from the main printing equipment, so it can be placed freely, which avoid unsatisfactory printing effects caused by pump shaking.

6. The air pump is equipped with a 2 meters admission pipe (connecting bedplate and air pump) and a 2 meters freeing pipe (connecting pump to outdoor). Users can adjust the distance between the air pump and the Screen Printing Machine according to the working environment.

7. Putting the end of the freeing pipe to the outdoor can reduce dust affection and air flowing to the substrates caused by air exhausting in the indoor environment.

8. Screen printing platen layer can rotate independently which is easy operated with higher efficiency.

9. Adjustable double-spring devices are available for screen frames of different weight.

10.Screen clamp can be moved up and down, which is suitable for screen frame within 1.8" (4.5cm) thickness.

11, All-metal construction, advanced electrostatic spraying and electroplating, durable, easy to clear and no rust.

12.Equipped with full set of installing tools, manual instructions, installation and operation videos.
