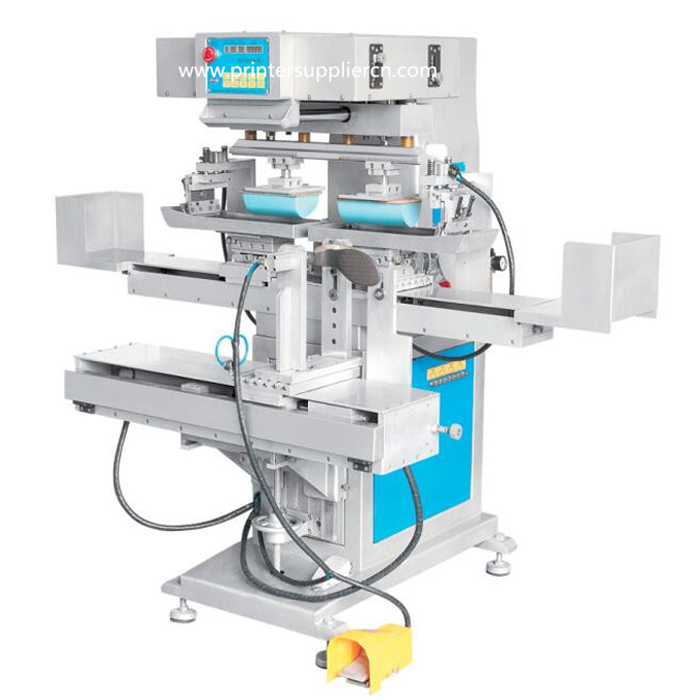

Two Colors Pad Printing Machine for Shoe Heel

Two Colors Pad Printing Machine for Shoe Heel

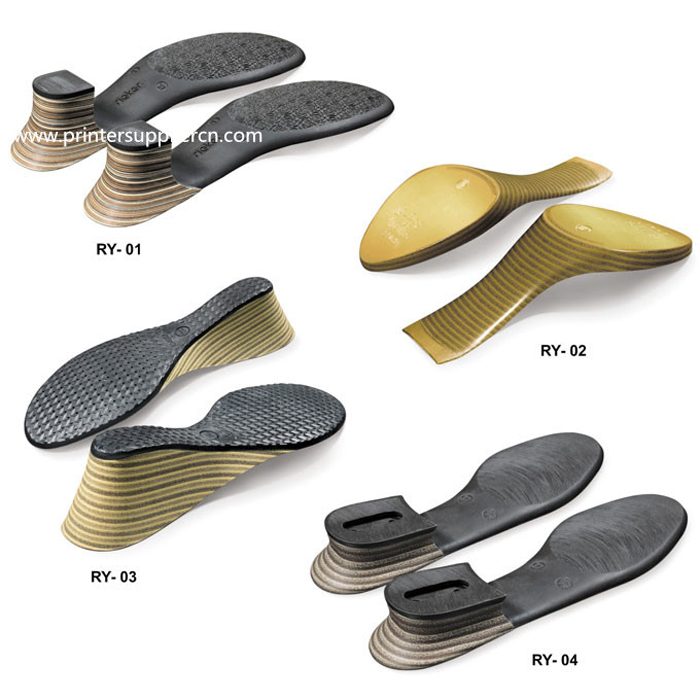

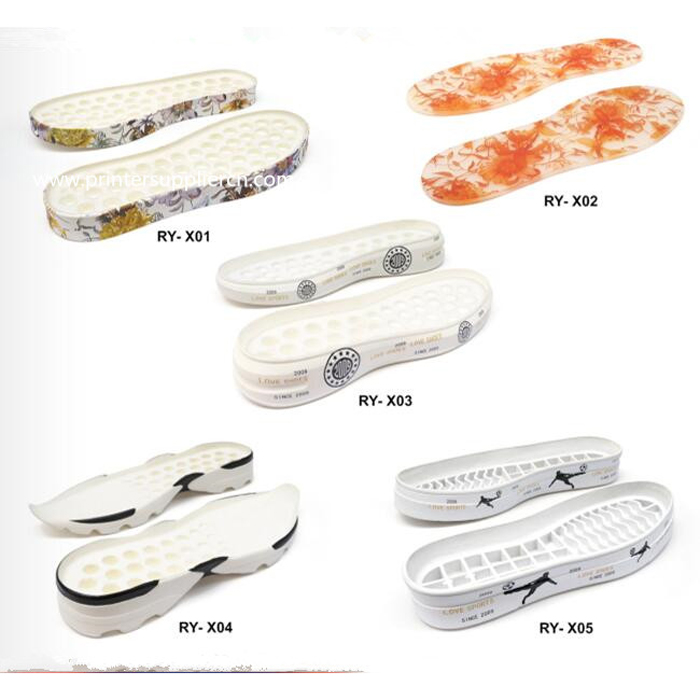

FA PRINTING MACHINE MANUFACTURER LIMITED  produces the latest entry model pad printing machines to decorate lady shoes heels, sport shoe sole, trainer sole , insole etc. Especially apply to printing the leather texture design on shoe heel and sole.

By using fully servo system,  the heel/sole printing machine could do 360° Pad Printing---this feature brings the printing molding at one time. We are glad to said it is the only machine which could finish printing at one time and print the waterline design to shoe heel/sole as per requirement.

With the exquisite etching printing line/dot on steel plate , the shoe sole printing effect is much better than rotary/roll pad printing. Not only the pattern is clear, but also easy to operate.

Our Heel/Sole Pad Printing Machine adopts the world's top pneumatic components, Japan SMC cylinder, oil bumper, German FESTO solenoid valve etc, ensures its workable performance to be more durable and stable.

1.With microcomputer-controller, in-built 9 sets of working procedure, fully automatic operation makes the printing more mechanical

2.With aluminum alloy structure frame and metal coating  surface, the machine is easy to move but steady

3.Ink tray and ink cup could be adjusted individually. The worktable is adjustable from front to back, left and right, up and down, and in tilting angle.

4.With function of leveling ink by sliding automatically on front /back, avoiding printing ink partial solidification

5.Adjustable inking pressure and printing speed meets different printing requirements

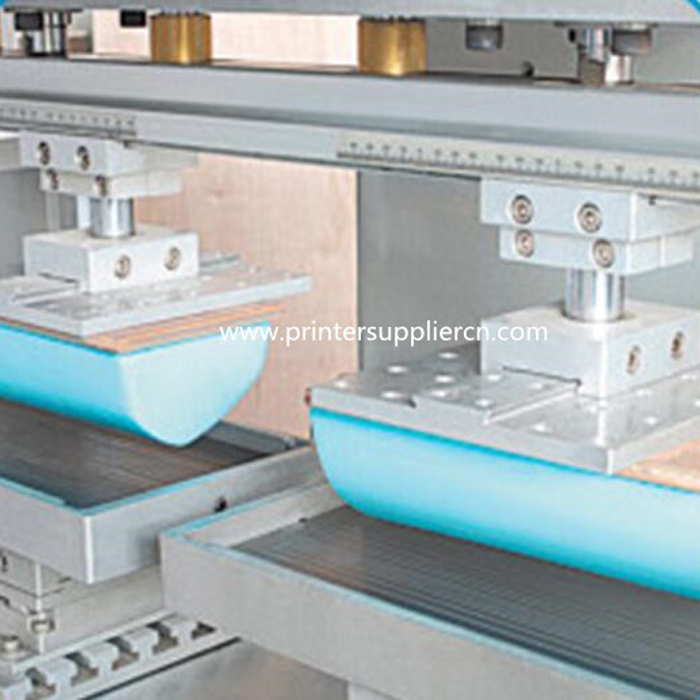

6.360° adjustable rubber pad angle and ±5° adjustable worktable angle ensure repeat precision to be less 0.05mm

7.Worktable, plastic head and ink cup can be adjusted X, Y,Z direction

8.This sole pad printer is equipped with self diagnostic function, and mechanical faults are more convenient to maintain through error code prompt.
