Online Flying Laser Date Coding Marking Machine

Technical Parameter:

Model: FA-FF20W/FF30W/FF50W/FF100W

Laser Wavelength: 1064nm

Laser Power: ≤600W/≤800W/≤1KW/≤1.2KW

Overall Power: ≤40W/≤150W

Frequency Range: 20-80KHz

Beam Quality: ㎡<1.2-1.5

Laser Style: Solid state pulse fiber laser

Marking Speed: ≤8000mm/s

Minimum Line Width:0. 5mm

Minimum Character:0.01mm

Repeatability Precision: <0. 01mm

Mainboard Connection: USB2.0

Marking Range: 100*100mm/150*150mm/300*300mm

Marking Depth: 0.005-1mm adjustable

Cooling Mode: Air Cooling

Machine Size: 870*7600*1230mm

Working Power: AC110V-220V士10%50Hz-60Hz

Supporting Graphic and Text Formats: PLT、DXF、AI、JPG、PNG、BMP etc


  • Product Detail

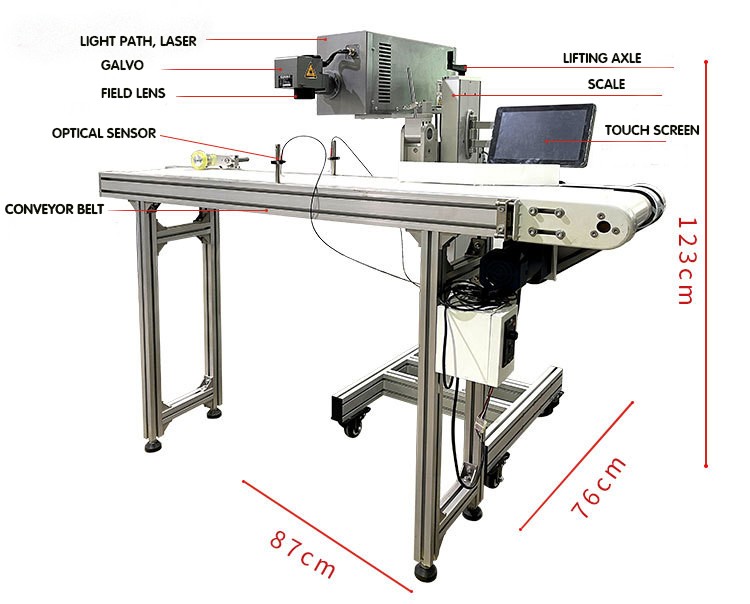

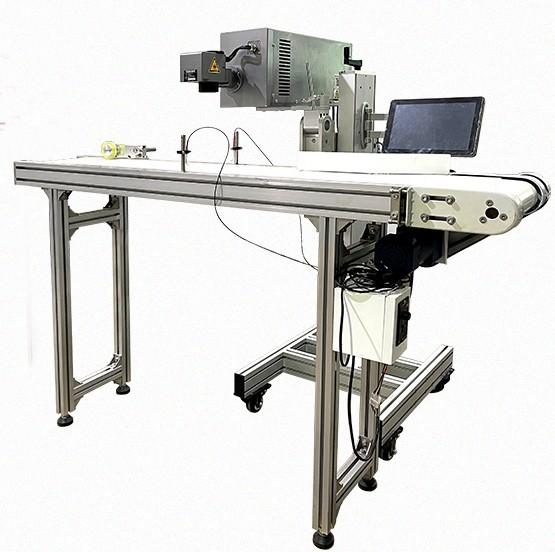

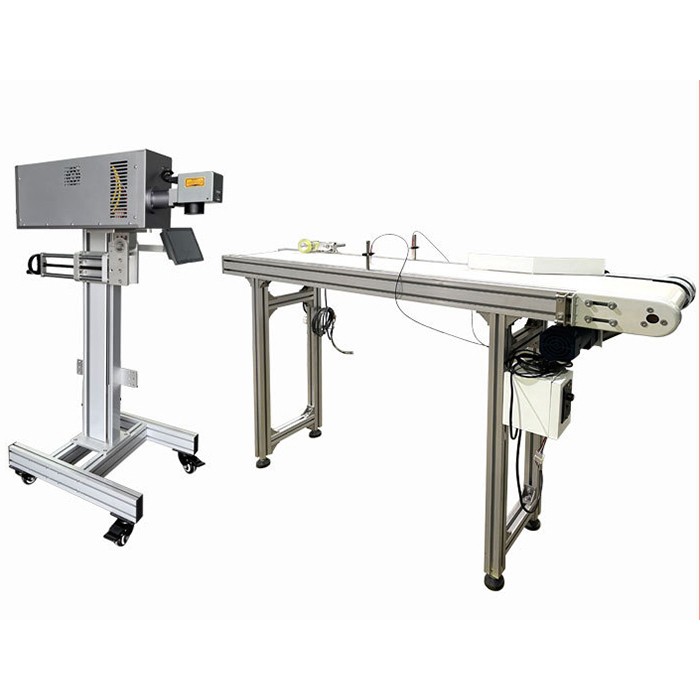

Online Flying Laser Date Coding Marking Machine

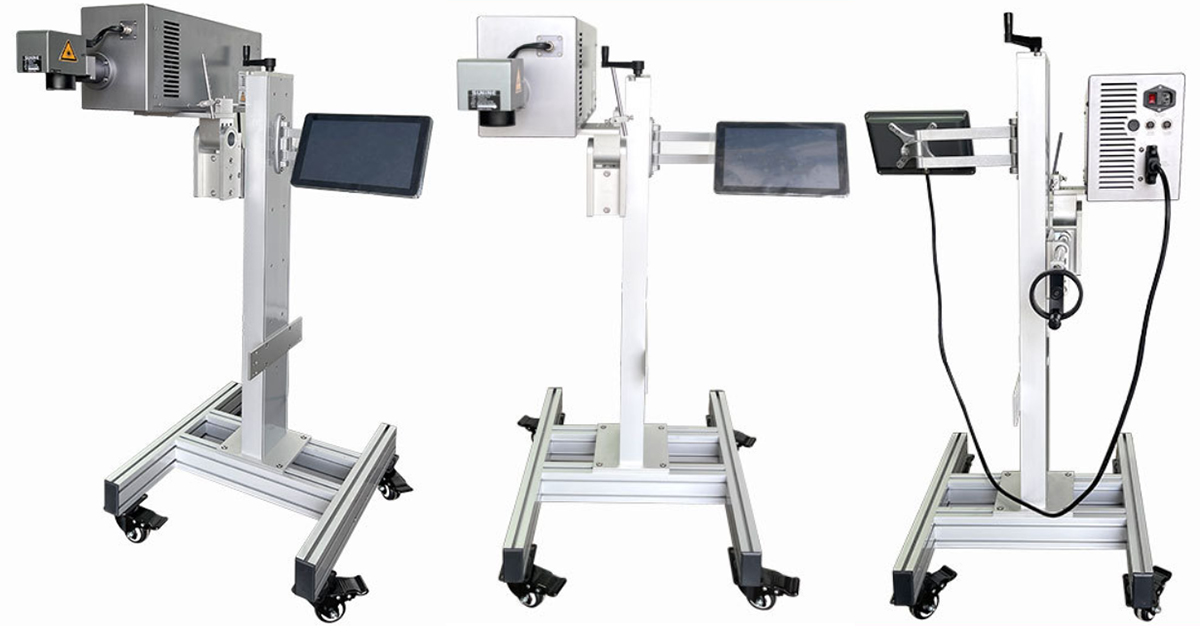

3D flight support; Precision adjustment, suitable for production line It can precisely adjust the position of each module, with a sturdy structure and convenient adjustment; Pure aluminum material, lightweight, corrosion-resistant。

online flying date coding laser marking machine

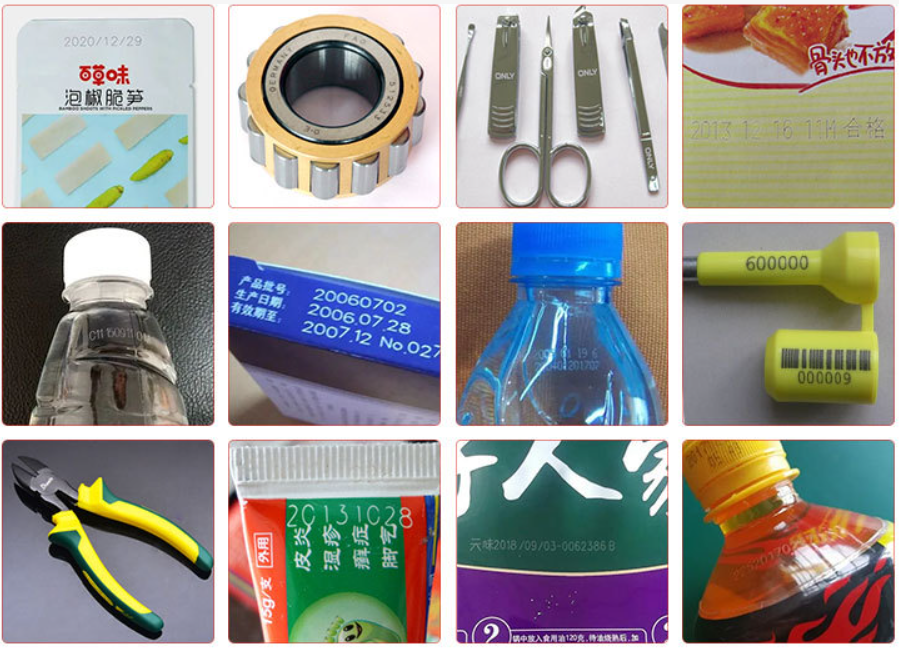

Application: WIDELY APPLICABLE TO ALLWALKS OF LIFE Food, pharmaceuticals, pipes, auto parts, Cables, daily chemicals, plates, electronic components etc.

date barcode coding engraving machine

Feature:

1.MINIMUM LINE WIDTH O.03MMHIGH PRECISION :The marking effect is fine and beautiful, and the characters can be as fine as millimeters

2.PERMANENT ENGRAVINGMARKING ANTI-CORROSION :Laser printing, can not be erased, to prevent malicious Falsification of important information such as dates

3.Laser marking does not require ink and there is no consumption of consumables for long-term use reducing capital consumption and usage costs

4.Designed with optical scanner and servo controlled, it has feature of large scanning angle, large load and high working speed. With the way of red light positioning ,it can mark products accurately.

5.With high-quality conveyor belt, it can transport products steadily. The conveying speed can be adjusted as needed.

flying coding machine
