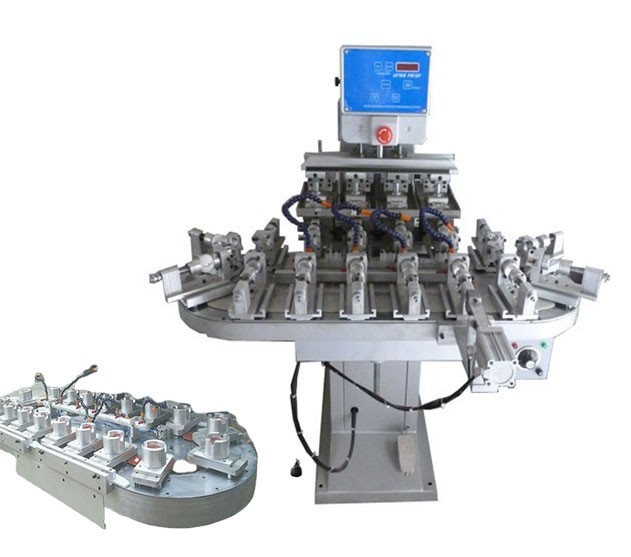

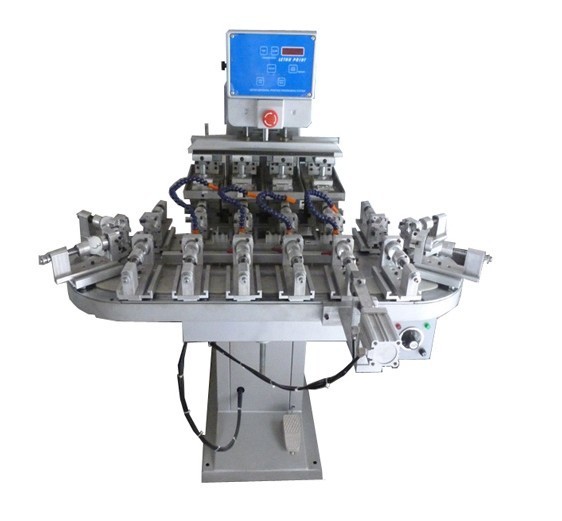

Four Colors Golf Ball Pad Printing Machine with Conveyor Table

Four Colors Golf Ball Pad Printing Machine with Conveyor Table

Feature

FA-P4/GF Golf Ball Pad Printing Machine is specialized printing equipment designed for applying logos, patterns, or text onto the dimpled surface of balls, for example, golf ball, tenis ball, table ball, bouncy ball etc. With its conveyor belt and rotary workstation, this ball pad printing machine not only save labor ,but also highly increase the working efficiency especially to manufacture productions. With the fixture, the golf ball is held in place and rotated as needed to print 360-degree designs accurately. This golf ball ink pad printer could be equipped with auto-feeding and auto-unloading system to complete fully automatic productions.

Function

1. With microcomputer-controller, semi-automatic, utility function, and the operating procedures are flexible and reliable.

2. With aluminum alloy structure frame and metal coating surface, the machine is easy to move but steady

3. With function of leveling ink by sliding automatically on front /back, avoiding printing ink partial solidification

4. Adjustable inking pressure and printing speed meets different printing requirements

5. Self-balancing scraper,scrape the ink tidy and smoothly, meanwhile could adjust to stick the ink twice to gain more ink for printing.

6. 360° adjustable rubber pad angle and ±5° adjustable worktable angle ensure repeat precision to be less 0.05mm

7. Five build-in digits automatic counters inside

8. Worktable, plastic head and ink tray can be adjusted X. Y. Z direction
