Ink Tray Pad Printing Machine

Automatic Four Color Pad Printer For CD and DVD

Technical Parameters

Item  No.:FA-M4/CK-CD

Max.Printing Size:Dia 130mm

Steel Plate Size:150x200mm

Power:110/220V 50-60HZ 1000w

Transverse Stroke:200mm

Vertical Stroke:75mm

Printing Reticle:110mm, 133mm, 175mm

Centre Distance of Ink Tray:177mm

Printing Workstation:12pcs

Air Consumption:5-7bar

Printing Speed:1000pcs/hr

Color & Page:Four colors

  • Product Detail
  • Video

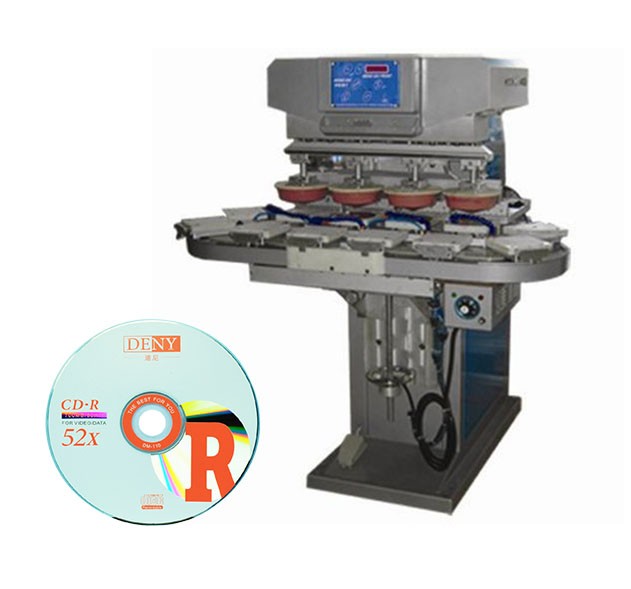

Automatic Four Color Pad Printer For CD and DVD

Feature

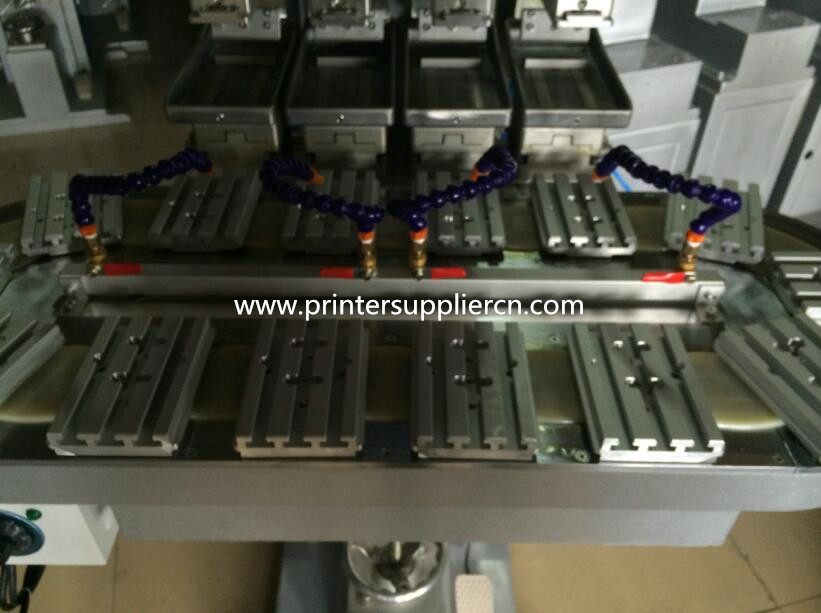

It's a four color Pad Printer with rotary worktable , especial designed for printing CD/DVD with four color printing at one time. The Pad Printer adopts two cylinders and increased turntable structure. Opening and closing clamp automatically, which is convenient to print products. The highest printing reticle can up to 175mm. It can be on a pair with offset printing.

Function

1. With microcomputer-controller, semi-automatic, utility function, and the operating procedures are flexible and reliable.

2. With aluminum alloy structure frame and metal coating surface, the machine is easy to move but steady

3. With function of leveling ink by sliding automatically on front /back, avoiding printing ink partial solidification

4. Adjustable inking pressure and printing speed meets different printing requirements

5. The pad printer machine adopts Open ink tray system, easily to get and replace the plate

6. 360° adjustable rubber pad angle and ±5° adjustable worktable angle ensure repeat precision to be less 0.05mm

7. Printing head with two cylinders, making sure the pressure is even when printing

8. The clamp can open and close automatically, reducing labors

9. Two cylinders blade system, balding ink clearly and fast

10.Installing auto hot-air system, adjust temperature (such as 200)

11.Worktable, plastic head and ink tray can be adjusted X, Y, Z direction
