Automatic  Screen Printer for Scale Ruler

This type of specialized automatic screen printing machine is intended for printing on rulers or similar measuring tools with precise scale lines. It's primarily applied in various types rulers, such as straight rulers, triangular rulers, tape measures, protractors. It is wildly sold to customers in stationery field. The machine is special designed for printing stationery ruler with high speed and automatic. Building-up printing and conveying system by high precision servo motor and cam divider to finish printing automatically, reduce labor, improving efficiency. The machine printing speed can be up to 2000pcs/hour , suitable for printing rulers within 30cm.

Feature:

1. Auto feeding and baiting, without manual operation

2. Automatic ruler locating system ensures printing accuracy, "no product, no printing" system keeps printing stable.

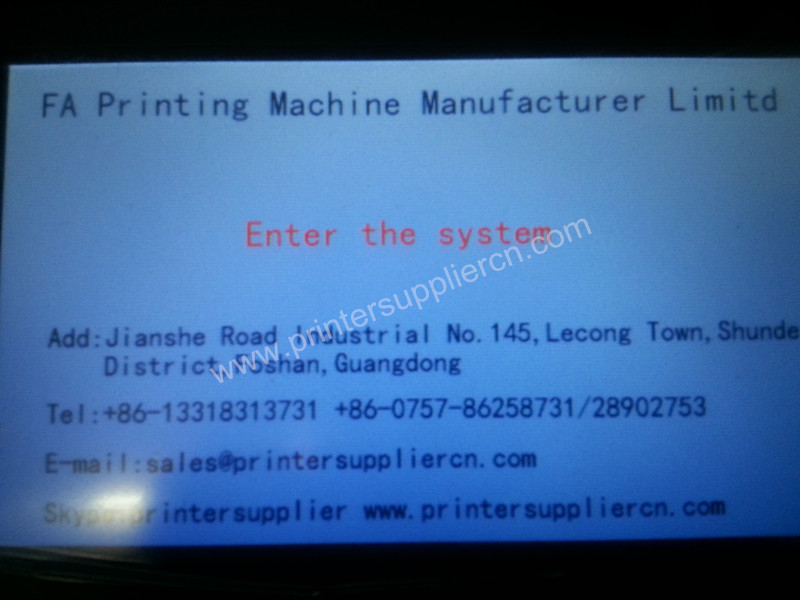

3. Mitsubishi PLC with WEINVIEW digital touching screen control system enable to set up parameter easily as per requirement

4. Transverse driven by Tampaga with synchronous belt, together with Taiwan precise linear guide, keeps working smoothly, precise printing, stable working speed and easy maintenance

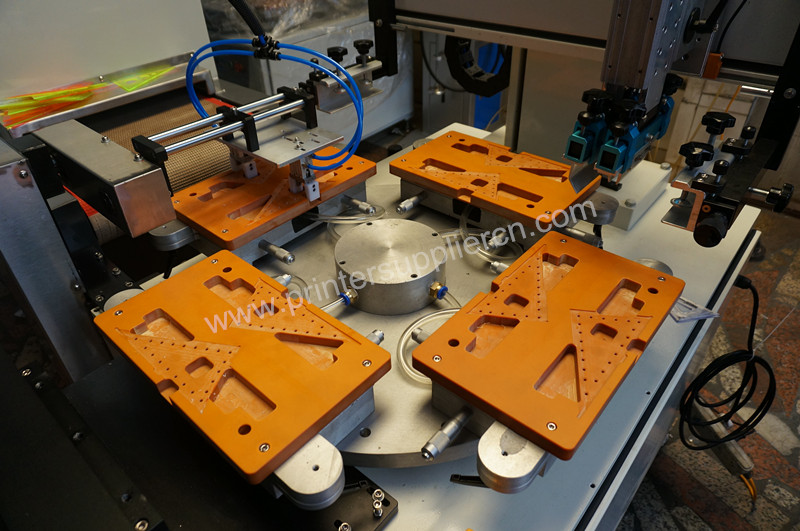

5. Vacuum equipment ensures the ruler to be in the same position during transmission

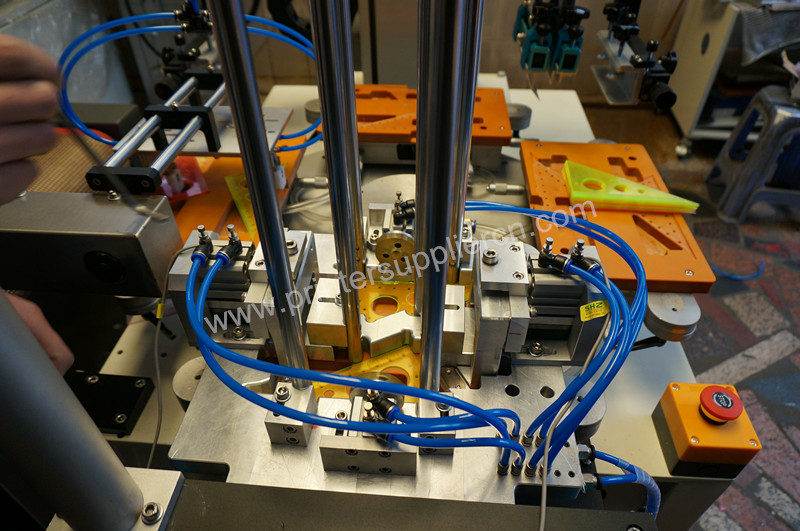

6. Adopts servo moto to control screen plate up & down, together with Taiwan precise linear guide, keeps fast lifting up & down and precise location.

7. Four screen frame angles, printing angle, printing pressure, screen distance could be adjusted to keep screen and worktable in same level, ensure the inking in same strength and working smoothly.

8. With function of preventing printing head and screen frame crashing(automatic setting the printing stroke, automatically save data memory
