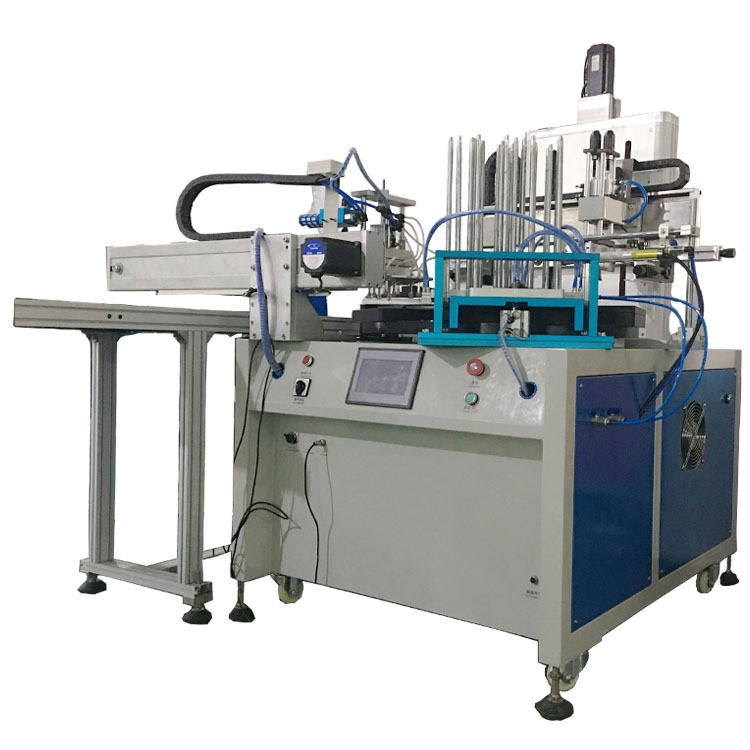

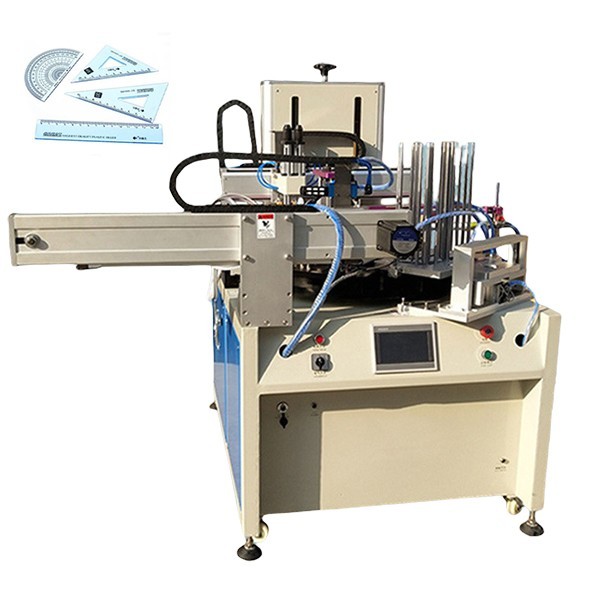

Automatic Ruler Screen Printer with LED UV Curing

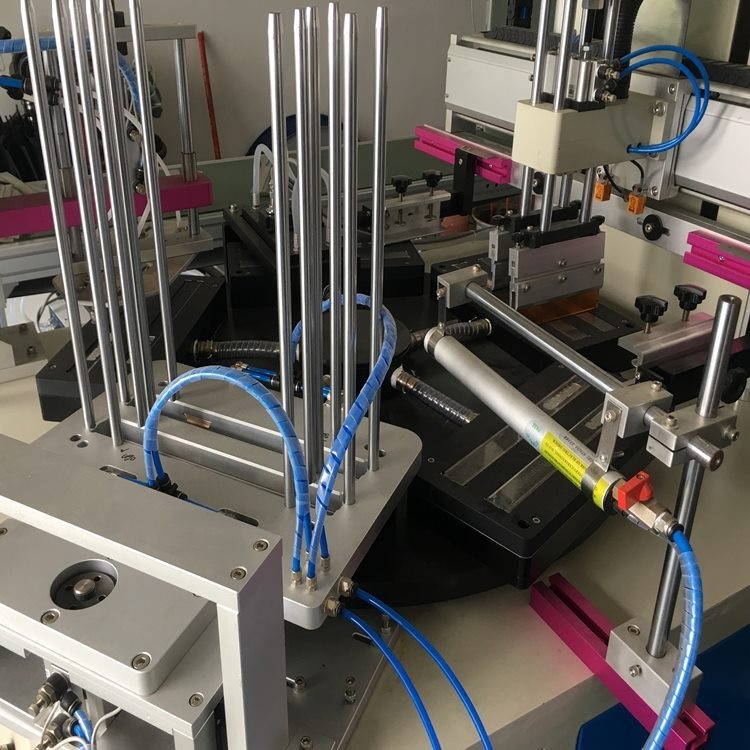

This is an efficient rotary flat screen printing machine especially designed for ruler set printing, which uses a high-speed rotary table composed of a mechanical cam splitter. The printing is stable , precise,  with low vibration and accurate multi-color printing. The ruler printing speed can reach 1200 times per hour. The printing table consists of four printing workstations, equipped with mechanical handrails. Three modes can be set: manual, semi-automatic, and fully automatic. The interval time between printing actions can be digitally controlled. The independently designed head lifting device makes it convenient for the scraper/oil return blade, screen loading and unloading, and screen cleaning. The whole machine is fully packaged, safe and beautiful, easy to operate, and easy to retrieve, greatly improving production efficiency.

1. Machine adopts PLC compiled action programs ,which enable machines durable and easy to maintain.

2. The slide rail adopts a linear guide rail, which runs smoothly. It has precise positioning, stable printing, and noise free.

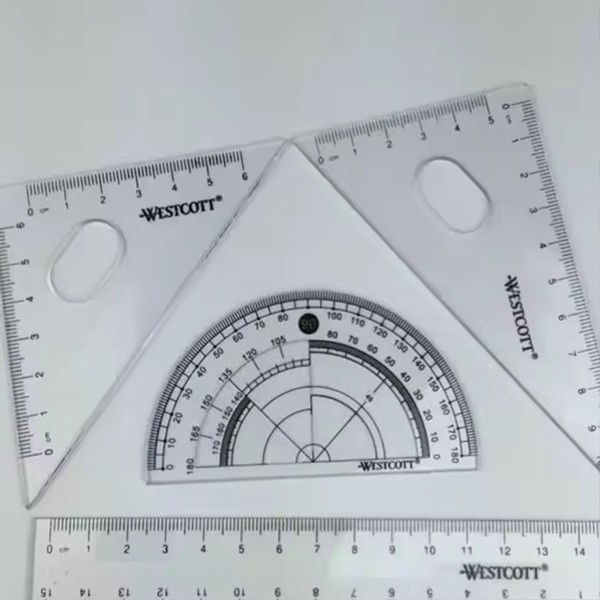

3. While need to print double colors for ruler set, multiple printing cycles are designed for printing actions, allowing users to freely choose from visual printing processes.

4. Machine with aluminum body, surface metal sprayed painting.

5. The ruler printing linear guide rail lifting structure is with high accuracy, and smooth operation

6. The screen printer scraper has constant pressure device  ensures stable pressure during the printing process

7. The angle of the scraper/ink return blade can be adjusted arbitrarily

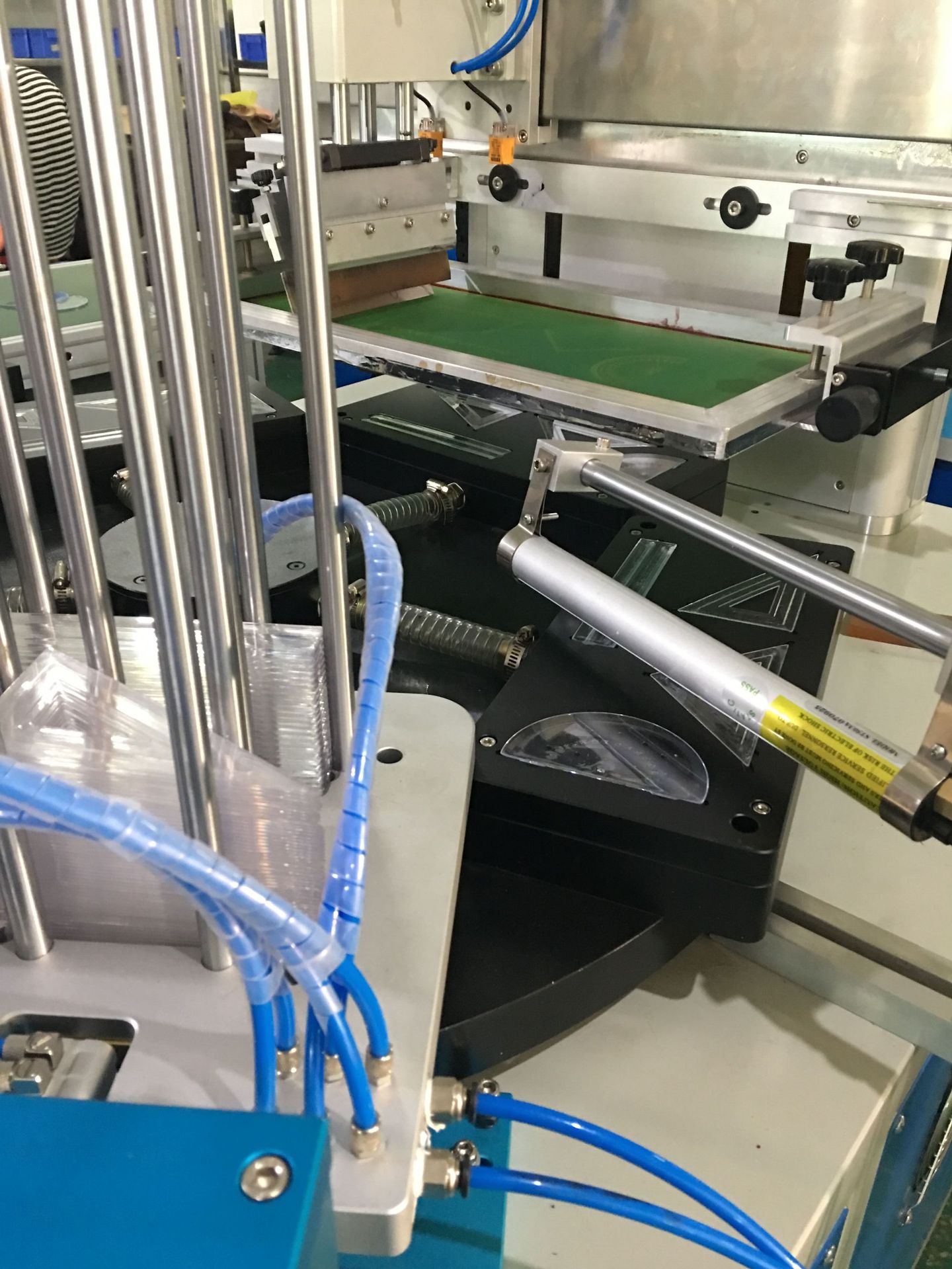

8. The position of the screen printer mesh frame can be adjusted in front, back, left, right, and horizontal directions

9. The printhead can be lifted for easy access and placement of the screen version
