Automatic Four Colors Screen Printing ma

Automatic Four Colors Screen Printing machine for on Wine Glass Bottle

Technical Parameter

Model No.:FA-B-04

Printing Speed:2000-2500pcs/hour

Print Size:Round/Oval/Flat/Square Shape bottle

Max printing size: 30-120mm height 30-300mm

Accuracy of the printing:±0.15mm

Air Pressure:0.6-0.8Mpa

Power:20KW 380V (LED curing)

Machine Dimension:2750 x 2500 x 2050 /mm

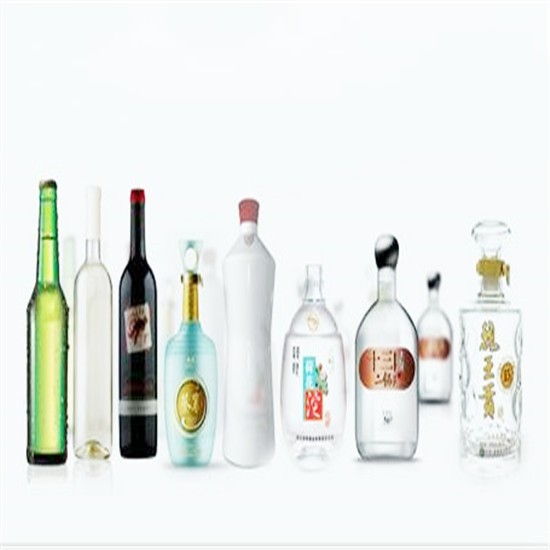

Usage:Cylindrical, conical shape,rectangle, flat ,glass and Plastic bottles and container etc

Product Detail
Video

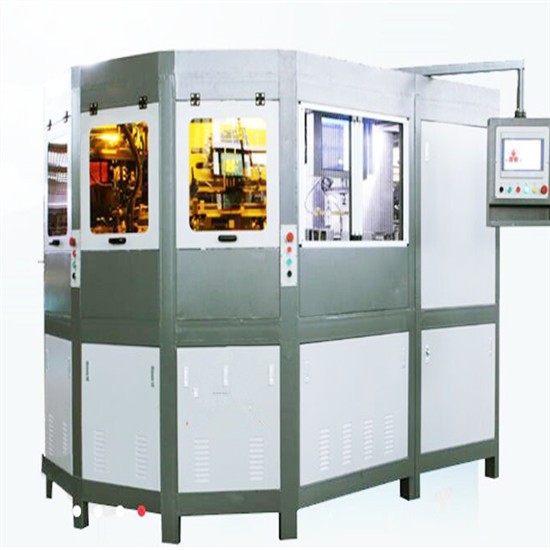

Automatic Four Colors Screen Printing machine for on Wine Glass Bottle is in build with servo drive system, frame treatment/ Image Positioning/LED curing System.it is implementate of multi-color overprint, precision of range is + / - 0.15 mm and it is fit for printing multi sides on the surface of cylindrical,round, conial,oval,square, Rectangular, Diamond Phombus shape glass and plastic bottle's silk screen printing. The servo motor control is ideal for multi colors printing on glass bottles with high precision printing.Curing system for LED curing technology. Power consumption is only one over ten of the normal UV lamp!

Automatic Four Colors Screen Printing machine for on Wine Glass Bottle
