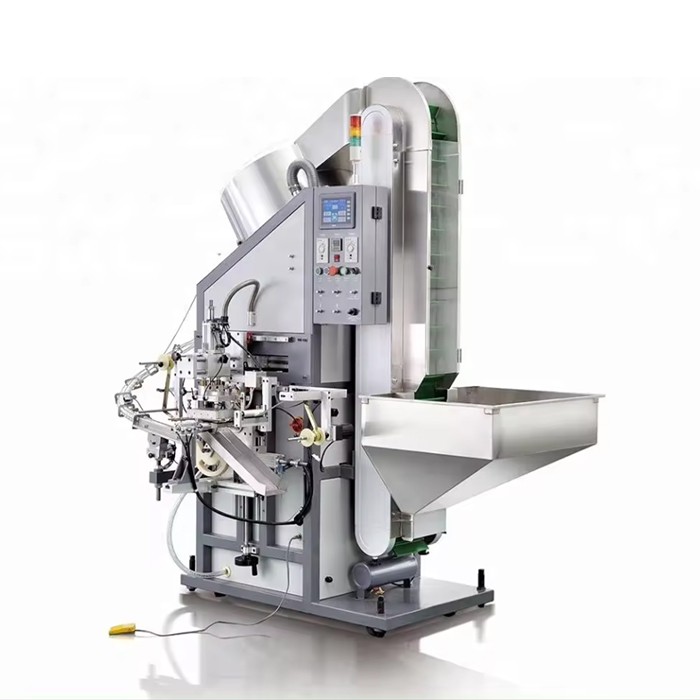

Automatic Bottle Cap Stamp Machine

Automatic Bottle Cap Stamp Machine (Side Printing)

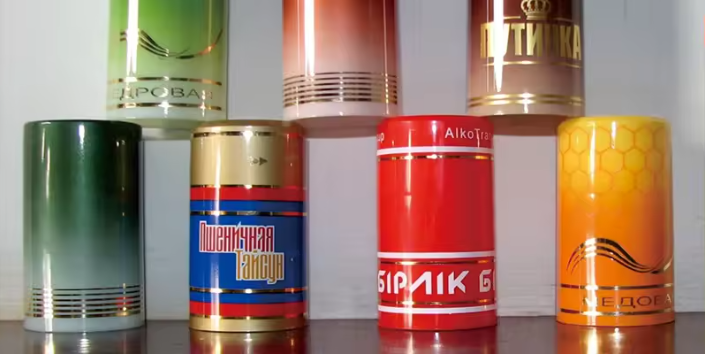

This fully automatic foil machine is designed for rolling foil stamping on those round caps.It is hot selling for customers in the field of bottles and caps manufacturer or printing industry.

Usually,the hot stamping of caps is divided into side stamping and top stamping. The machine structure between these two kinds of stamping is almost the same. The difference is only stamp operational sequence. While stamping on the top of the bottle cap, it adopts flat stamping, and the stamping head just moves up and down. However, when hot stamping on the side bottle cap , it needs to rotate the jig , and the stamping head moves left and right.

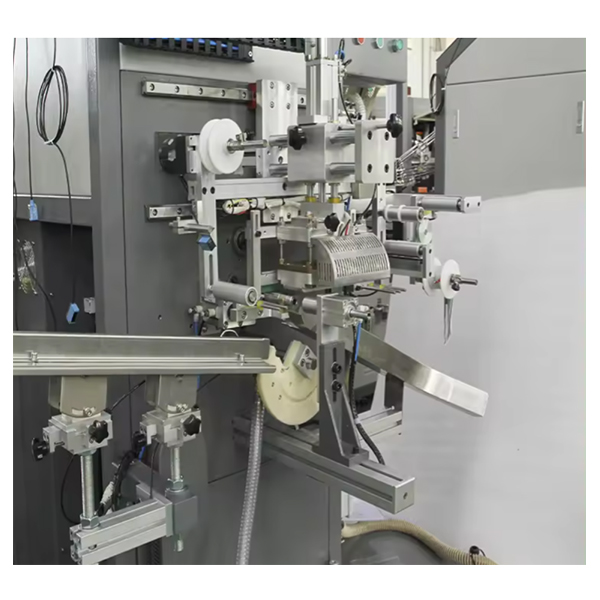

Bottle cap automatic stamping way consists of automatic crawler feeding system, prepress processing system, positioning system, workbench, hot stamping system, and automatic unloading system. Bottle & bottle caps are widely requested in big demand, so the printing speed is requested to be higher as well. This stamping machine printing speed reach 4200pcs/hour. It is popular adopted by customer in plastic packaging,  cosmetics, stationery, wine, washing supplies and other industries.

Advantages:

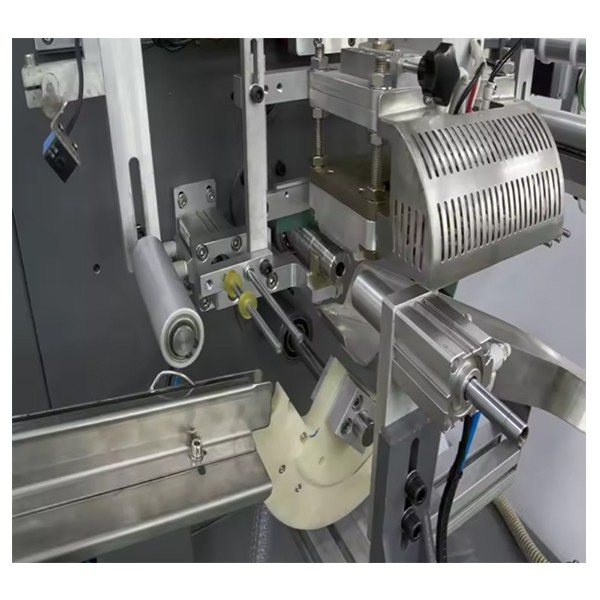

1. Silicone Rolling Foil Stamping  Mechanism System---ensure precise stamping quality in the hot foil stamping process.

2: Fully Automatic Loading & Feeding System--- reduce labor cost and boost production efficiency.

3: PLC Control System--- with" no caps ,no printing" ,counting,code setting, maintainance,temperature control, automatic alarming system , these all ensure operation easily.

4: International Brand Components--- Japan SMC cylinder, valves, Germany Omeron sensors etc.

5: Reliable Motors and Drives---Japan and Taiwan famous brand Defoiler motor, stepper motor, vacuum pump motor etc.

6: Electrical Components---SCHNEIDER OR PANOSONIC key eletrical components, further enhancing the machine's performance and safety.

7. Safe Protection Device--ensuring a secure and accident-free working environment.
