Ink Cup Pad Printing Machine

6 Color Industrial Pad Printing Machine With Shuttle

Technical Parameters

Item  No:FA- P6/S

Max.Printing Size:60x120mm

Steel Plate Size:100x150mm

Power:110/220V 50-60HZ 30w

Transverse Stroke:200mm

Vertical Stroke:75mm

Air Consumption:5-7bar

Printing Speed:800pcs/hr

Machine Size(LxWxH):122x120x150mm

Weight:180kg

  • Product Detail
  • Video

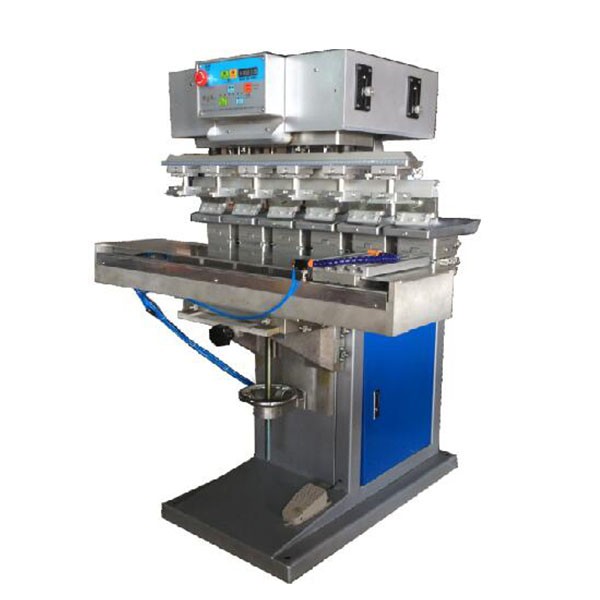

6 Color Industrial Pad Printing Machine With Shuttle

6 Color Pad Printing Machine With Shuttle , chariteristed with its unique design of uplift machine body, it is conveninet to adjust machine and change the steel board. While stopping shuttle worktable, the machine could be used as one color pad printing machine with two heads. This multi pad printing machine is mostly adopted in printing helmet, toys, electronic panel etc.

Function

1. With microcomputer-controller, semi-automatic, utility function, and the operating procedures are flexible and reliable.

2. With aluminum alloy structure frame and metal coating surface, the machine is easy to move but steady

3. With function of leveling ink by sliding automatically on front /back, avoiding printing ink partial solidification

4. Adjustable inking pressure and printing speed meets different printing requirements

5. Seal ink cup system, easily to get and replace the plate

6. 360° adjustable rubber pad angle and ±5° adjustable worktable angle ensure repeat precision to be less 0.05mm

7. Worktable, plastic head and ink tray can be adjusted X. Y. Z direction

8. With function of forbidding the printing pad falling off when no air enter in

6 colors pad printer

industrial pad printing machine for helmet
