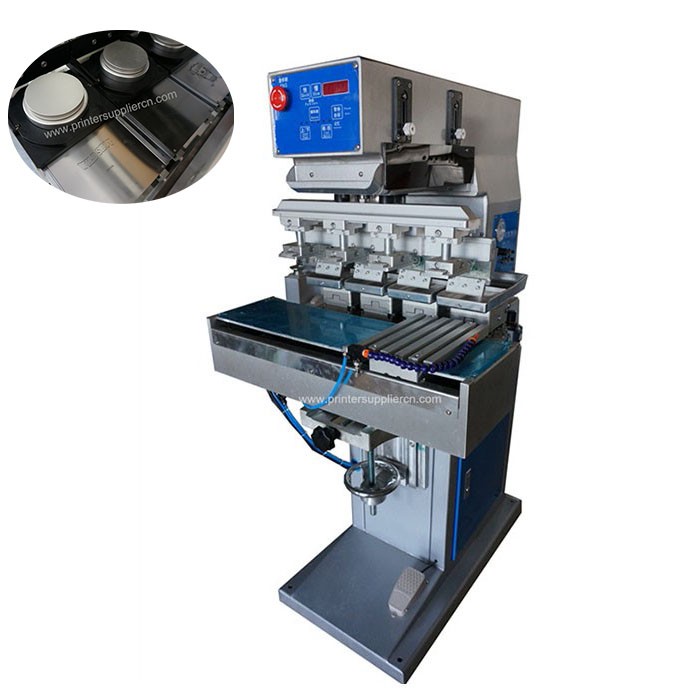

4 Color Pneumatic Large Pad Printing Machine for Glass Bottle

4 Color Pneumatic Large Pad Printing Machine for Glass Bottle

Feature

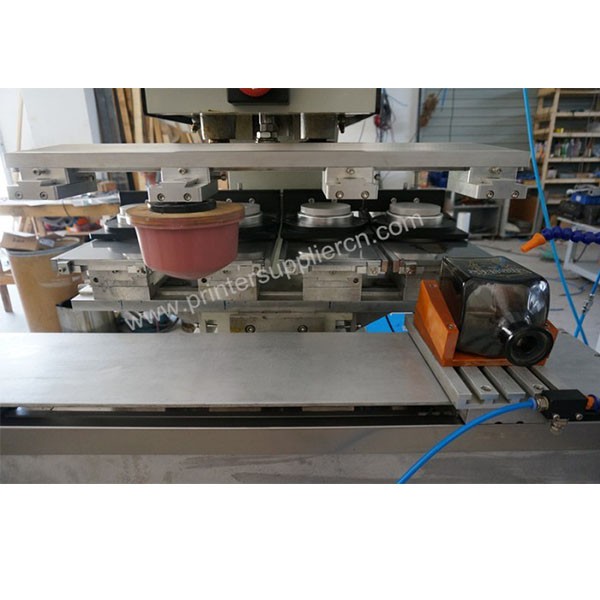

This is the large size pad printing machine which can finish 4 color printing at one time.  It adopts cliche steel plate with size 100*200mm .The pad printing machine is driven by pneumatic and equipped with shuttle and ink cup system.  It is the best choice for precision printing. This machine can also work as monochrome, two color, three color, four-color printing according to different requirements.

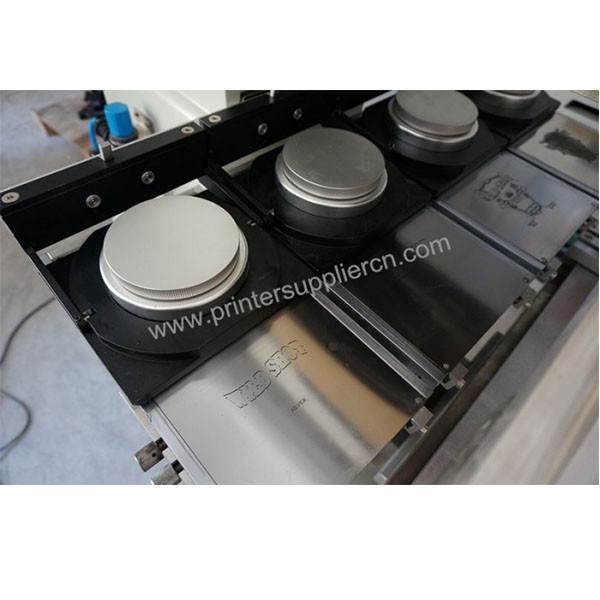

Inkcup Pad Printing Machine with the latest Technology oil cup made of tungsten steel cutting ring, the surface hardness up to HRC63 degree, with high wear resistance, can withstand nearly 300 million times the friction. Machines with this section are more environmentally friendly and more fuel efficient than those of the traditional oil pan machines. Sealed cup helps to reduce any solvents evaporating from the ink too quickly and also helps to keep the ink at a constant temperature, and hence save 60% ink and 90% thinner comparing with open ink tray.

Function

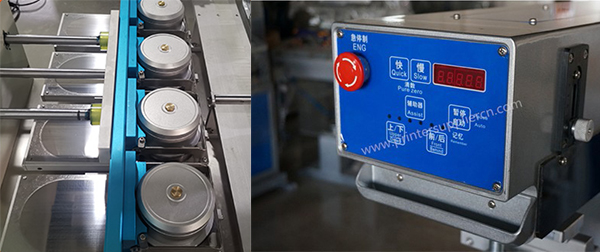

1.Microprocessor control for each function makes operation easy;

2.4-Digit auto counter built-in;

3.Coin aluminium structure ensures sturdiness operation;

4.ink roller used for ink applying is easy to remove and clean;

5.Independent stroke and speed adjustment for pad up/down;

6.Auto balanced doctor blade ensures that ink can be scraped cleanly and completely;

7.Adjustable printing speed meets different printing requirements;

8.It is available that ink roller keeps working while pad doesn't lower down that so that ink will not easily become dry
