Hot Stamping Machine

Hot Stamp Machine for Storage Box

Technical Parameters

Model  No. FA-KT1318

Max. Hot Printing Size 130Wx180L

Power:1KW

Max Pressure:1T

Temperature Control:rt-260 +-3

Machine size:2.7x1.2x2m

Usage:Toys,stationery, handicrafts,tableware,electronic products,wooden box

  • Product Detail

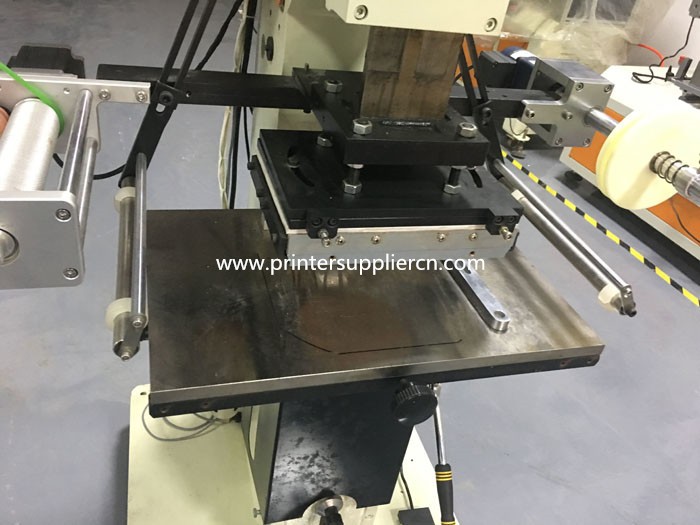

Hot Stamp Machine for Storage Box

Application

Able to do hotprint logo/text etc. on plastic boxes (large boxes, pallets, ,storage box, trash bin ,crates)

1:Machine adopts the steel body, the column strengthens the welding bar, with which the equipment will be more durable.

2:The whole machine with car paint high temperature baking, the appearance of high-grade generous, environmentally friendly non-toxic, durable fade.

3:304 stainless steel screws, Japan NSK bearing links to ensure that the machine is durable 4:Microcomputer intelligent IC control circuit, easy to operate, accurate and reliable action.

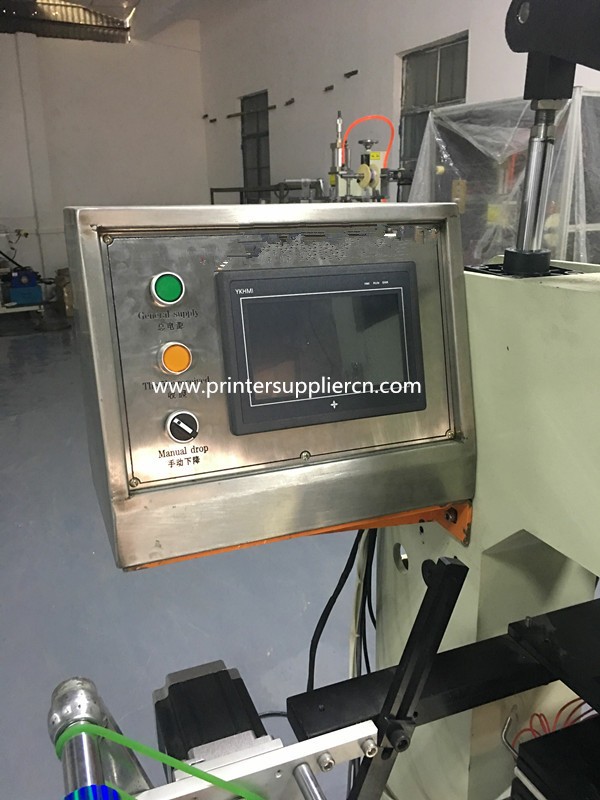

4.PLC control, intelligent storage of multiple sets of product parameters, call at any time. Touch screen display, man-machine interface design, easy to understand;

5:Hot stamping temperature, pressure, speed adjustable, hot stamping delay, roll delay adjustable to meet the different printing requirements

6:Hot stamping head height is adjustable, high printing accuracy

7:Original ATP switch button to ensure the service life and sensitivity

8:Imported electric eye, solenoid valve and other pneumatic components to ensure that equipment printing accuracy and stability

9:Configuration automatic collection and discharge structure, no manual film, greatly improve production efficiency.

10:Original import Taiwan Yangming sensor switch, precise positioning pattern, the accuracy of + -0.5mm

11:Taiwan's silver rail, with high-precision slider, more durable, easy to use

12:Configuration pusher device, a dual-use machine, both hot stamping products, but also rolling hot round products

hot stam machine for storage box
