Flat Screen Printing Machine

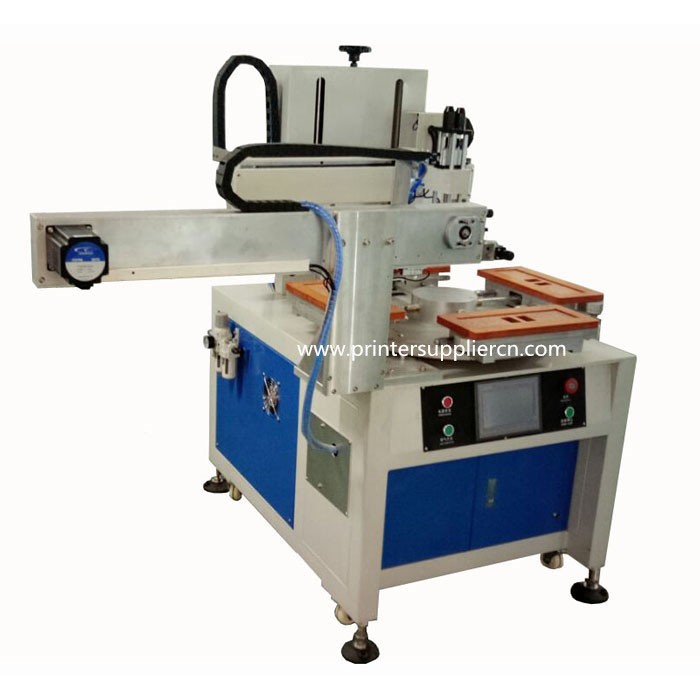

Four Stations Rotary Screen Printing Machine with Auto Sucker

Technical Parameters

Model  No:FA-M2030-S4

Max.Printing Size:200x300mm

Vertical Stroke:800MM

Transverse Stroke:400mm

Air Pressure:5-6 bar

Worktable size:600mm

Max.Printing Height of Product:50mm

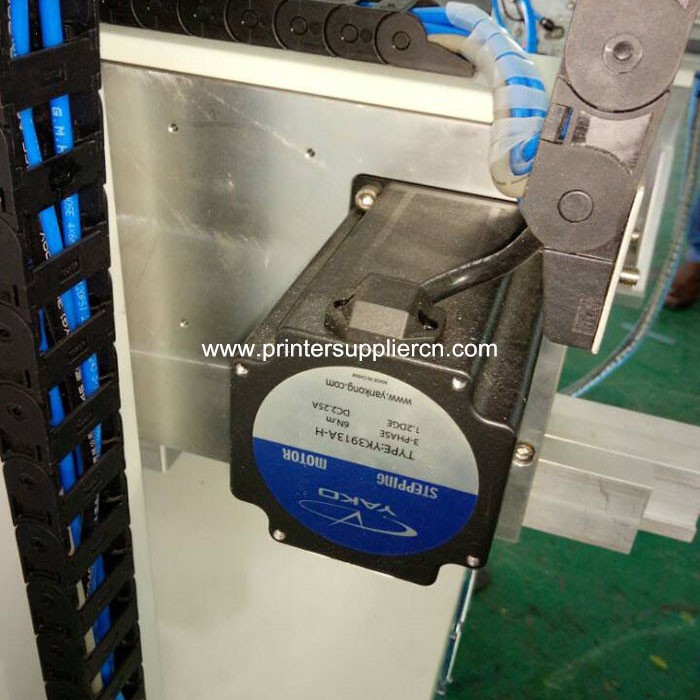

Transverse Driving Style:Electronic

Vertical Driving Style:Pneumatic

Workstation:4pcs

Printing Color:One color

Machine size:120x100x150cm

Weight:330kg

Printing speed:2000~2500PCS/hr

Automatic Grade:Semi-automatic

Warranty:One year

  • Product Detail
  • Video

Four Stations Rotary Screen Printing Machine with Auto Sucker

Application

Soft and thin products such as paper, plastics film ;signs and panels, textiles,garments, plastic sheets, Metal sheet,glass sheet and advertising materials, printed circuits, light boxes and so on

Feature

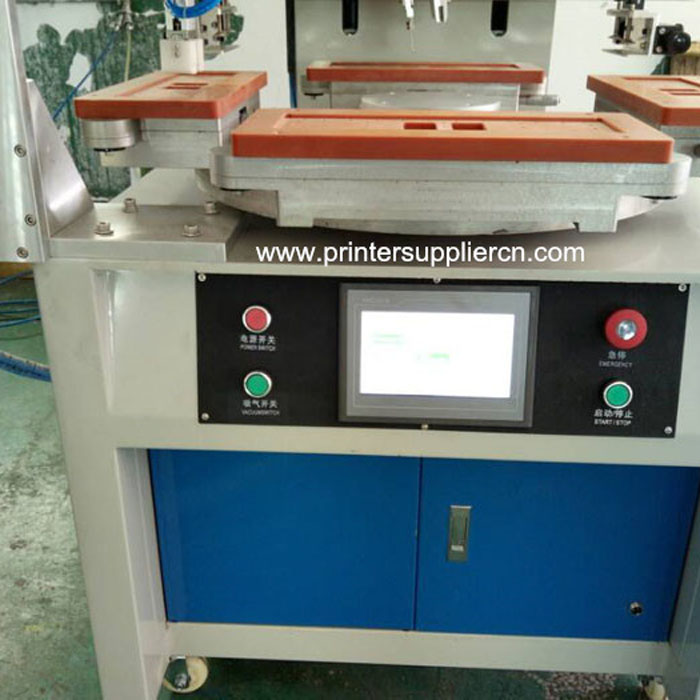

ThiRotary Screen Printing Machine  adopts Mechanical cam separator from Taiwan to make rotary table. The Flat Silk Screen Printer is rotating with stability while proceeding with uploading and downloading the products during printing,with which the machine could work continuously.

Function

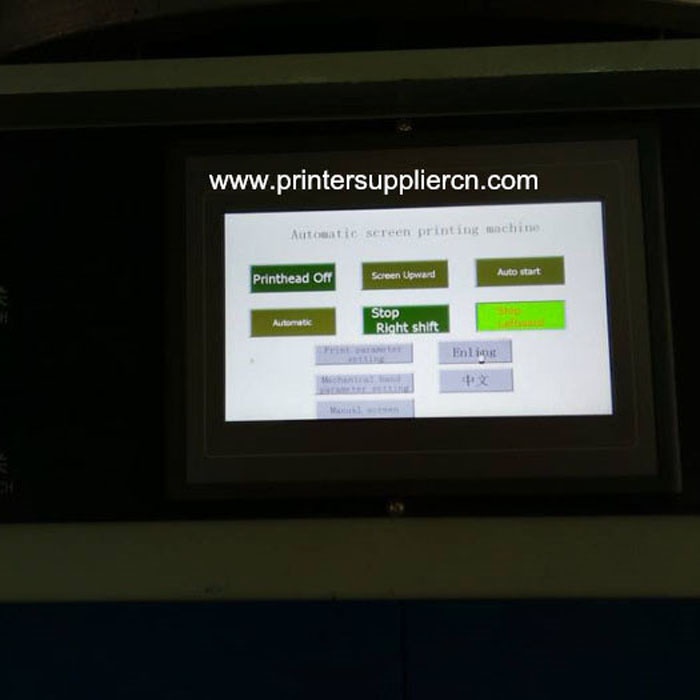

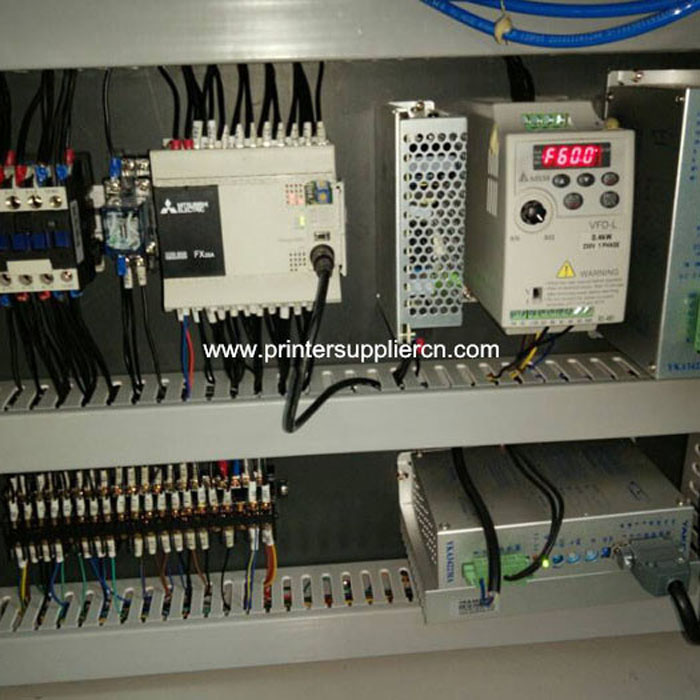

1. SCM IC coordinates light-touch panel to compile programmable actions.

2. Auto 4-digit conter built-in to calculate printing quantity

3. Airframes adopts aluminum casting and with metal coating surface

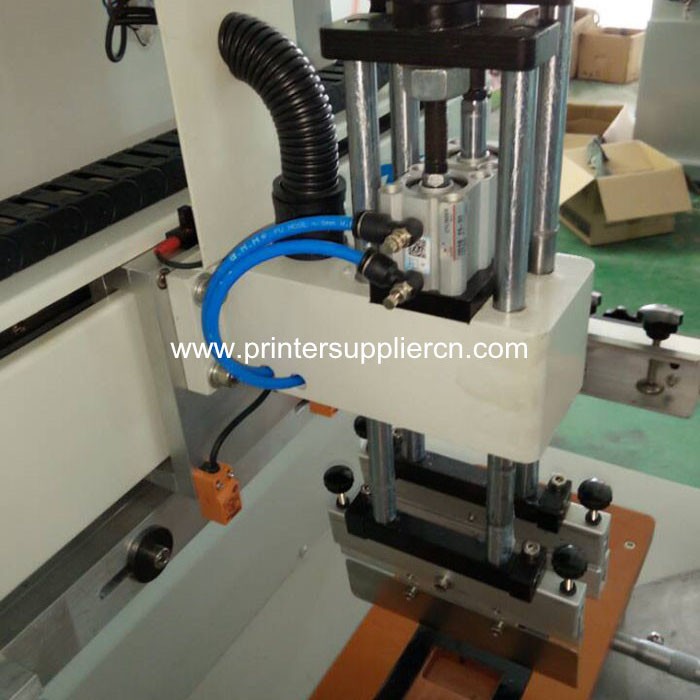

4. Double cylinders up& down structures ensures printing precisions and stability

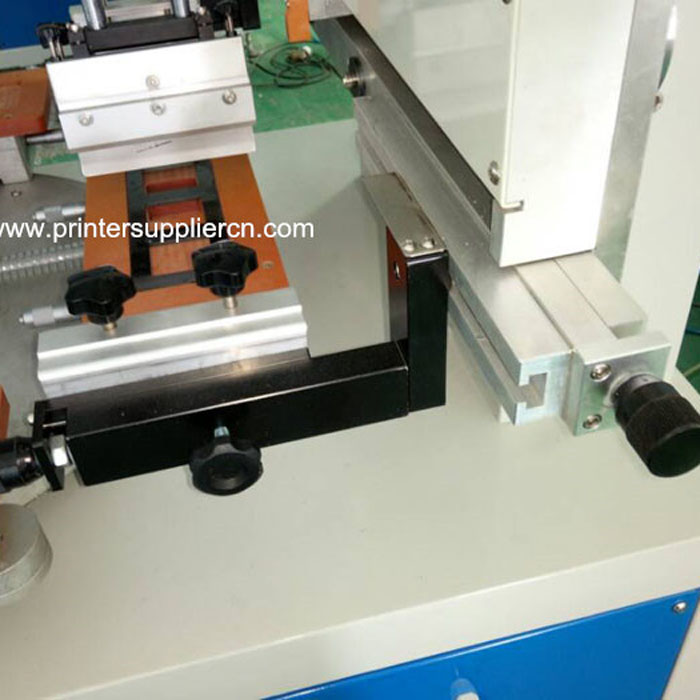

5. Left & right stroke, squeegee and ink tool positions could be adjusted

6. Pneumatic squeegee constant pressure device ensures the pressure stability during processing.

7. T-slot worktable brings convenience to load and unload jig

8. Up&down are equiped with Taiwan CEC oil pressure buffer to eliminate working shock.
