Hot Stamping Machine

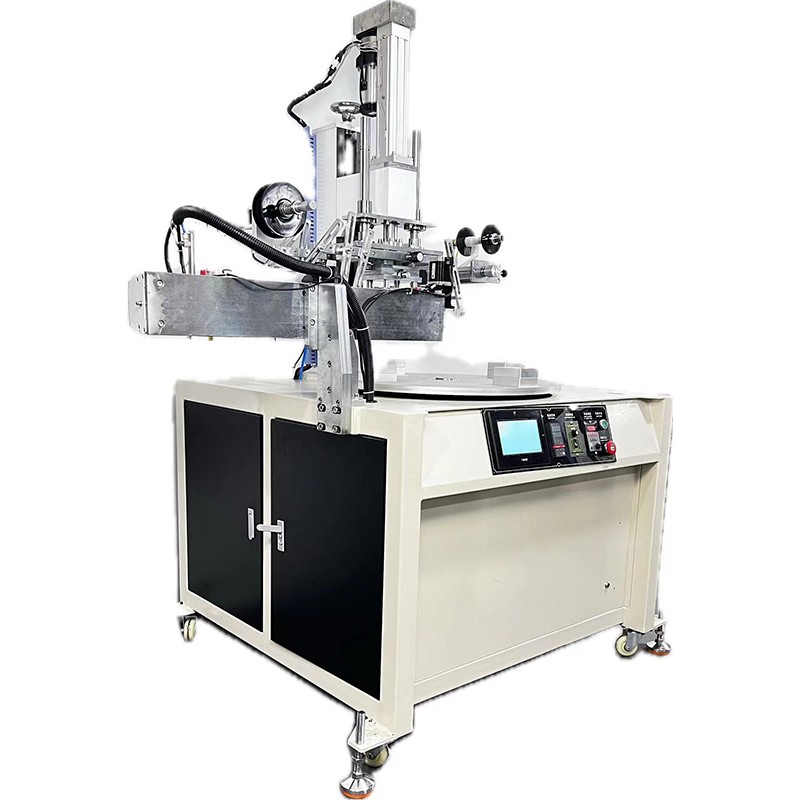

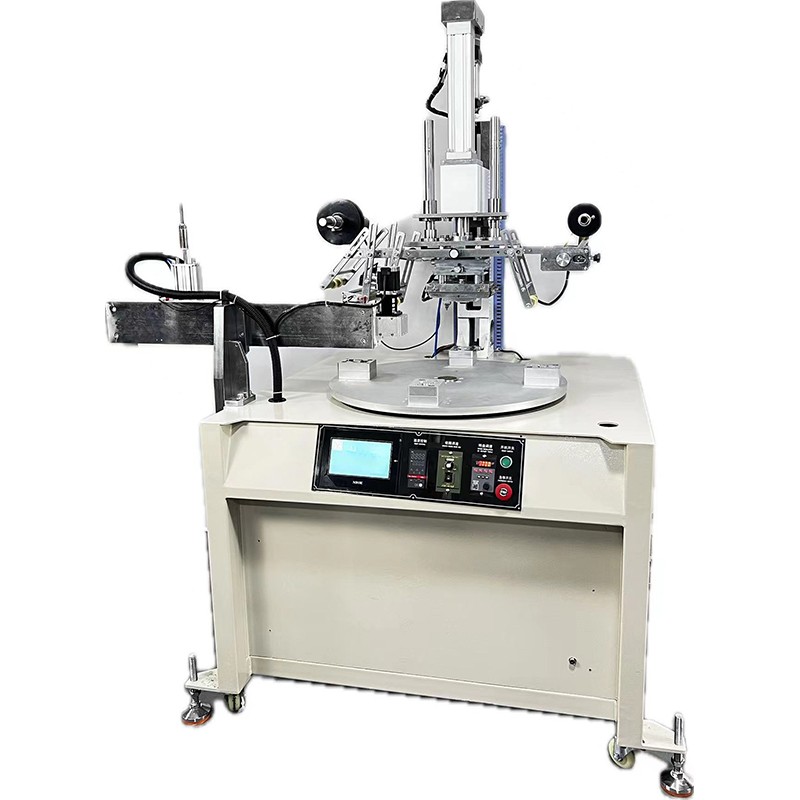

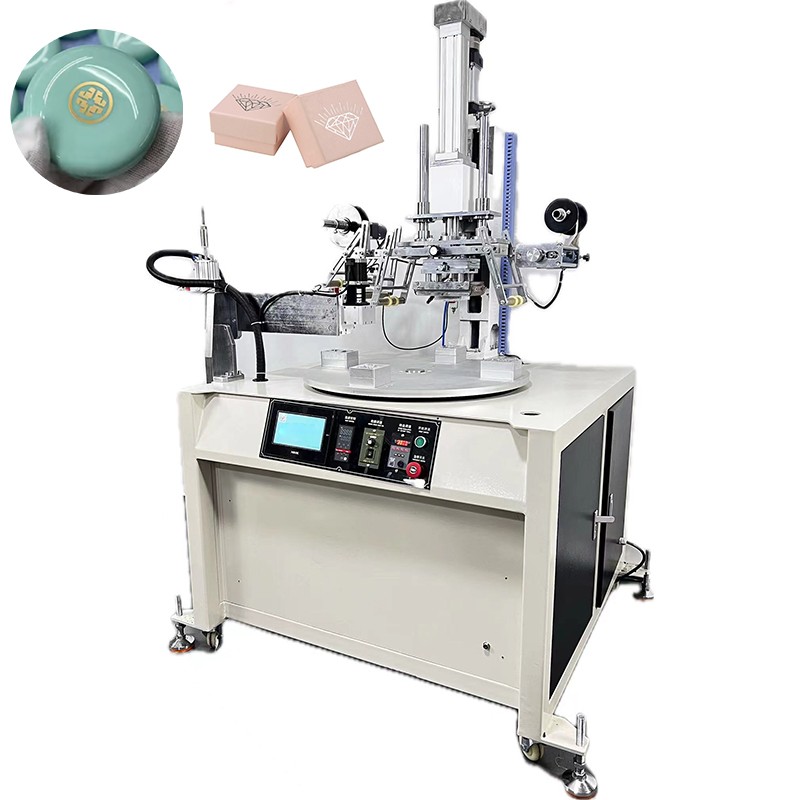

Automatic Rotary Hot Stamping Machine for Jar Cap

Technical Parameter:

Model No.:FA-AUT1520

Max Stamping Size:150x200mm

Max Stamping Height:150mm

Up/Down Stroke:200mm

Turntable Dia:600mm

Power: 220v 50/60Hz

Air Pressure:4-6Mpa

Printing Speed:2000-3000pcs/hour

Control Method: Pneumatic driven or servo driven with touch screen for choice

Machine Weight: 450kg

Machine Size:1500x1150x2000kg

  • Product Detail
  • Video

Automatic Rotary Hot Stamping Machine for Jar Cap

Feature:

This Automatic Hot Stamping Machine could be made in four rotary stations or six rotary stations. Control Method could be pneumatic driven or servo driven. Suitable for customer’s options according the production requirement. It could stamp on different kind of products with flat surface. Wildly applied in paper box, jewelry box, plate, cup rim, comb etc.

1. High Efficiency: Rotary hot stamping machines are capable of high-speed production, making them suitable for large-volume runs. They can process materials quickly, leading to increased productivity.

2. Versatility: These machines are versatile and can be used to apply hot foil stamping on various materials, such as paper, cardboard, plastic, and leather. They can accommodate different shapes and sizes of materials, making them suitable for a wide range of applications.

3. Consistent Quality: Rotary hot stamping machines deliver consistent and high-quality results. The heat and pressure applied during the process ensure precise and uniform stamping, producing visually appealing and durable finishes.

4. Customization Options: These machines offer flexibility in terms of customization. They can be easily adjusted to accommodate different designs, logos, or patterns, allowing for personalized branding options on products.

5. Cost-Effective: By automating the hot foil stamping process, rotary machines help reduce labor costs and minimize errors associated with manual operation. This cost-effectiveness makes them a valuable asset for businesses looking to enhance their products' appearance.

Automatic Rotary Hot Stamping Machine for Jar Cap
