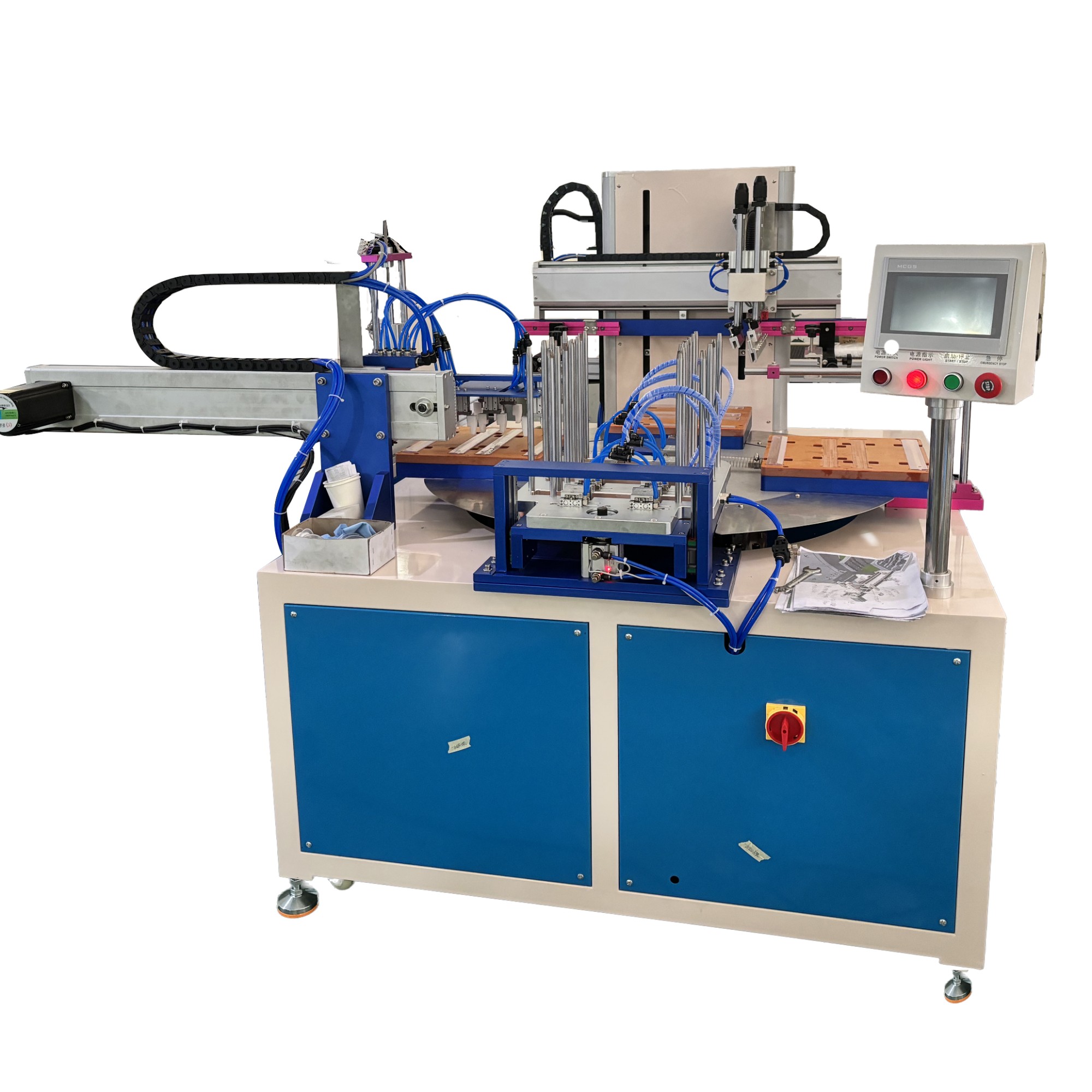

Automatic Plastic Ruler Screen Printing Machine

Fully Automatic Plastic Ruler Screen Printing Machine

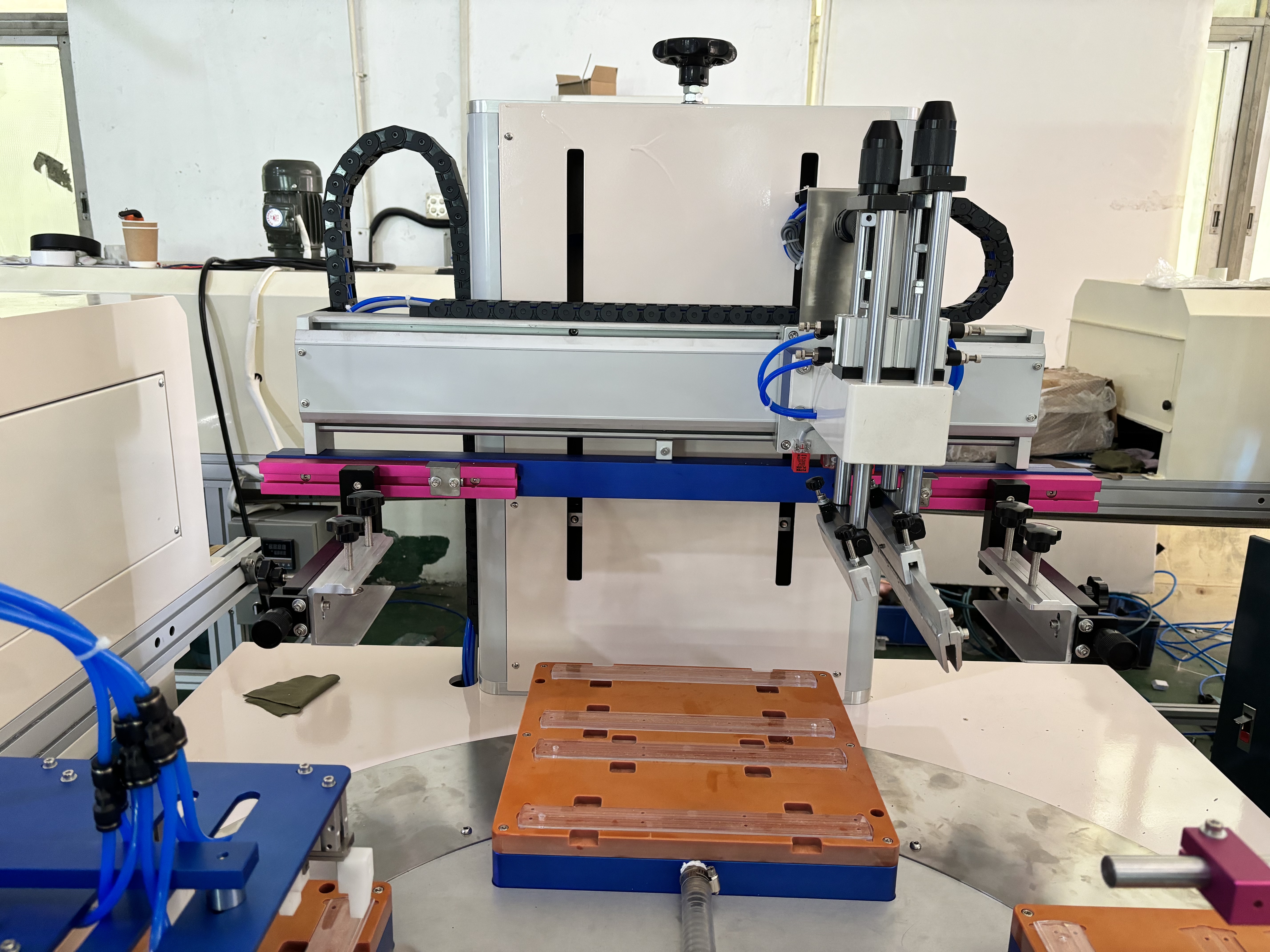

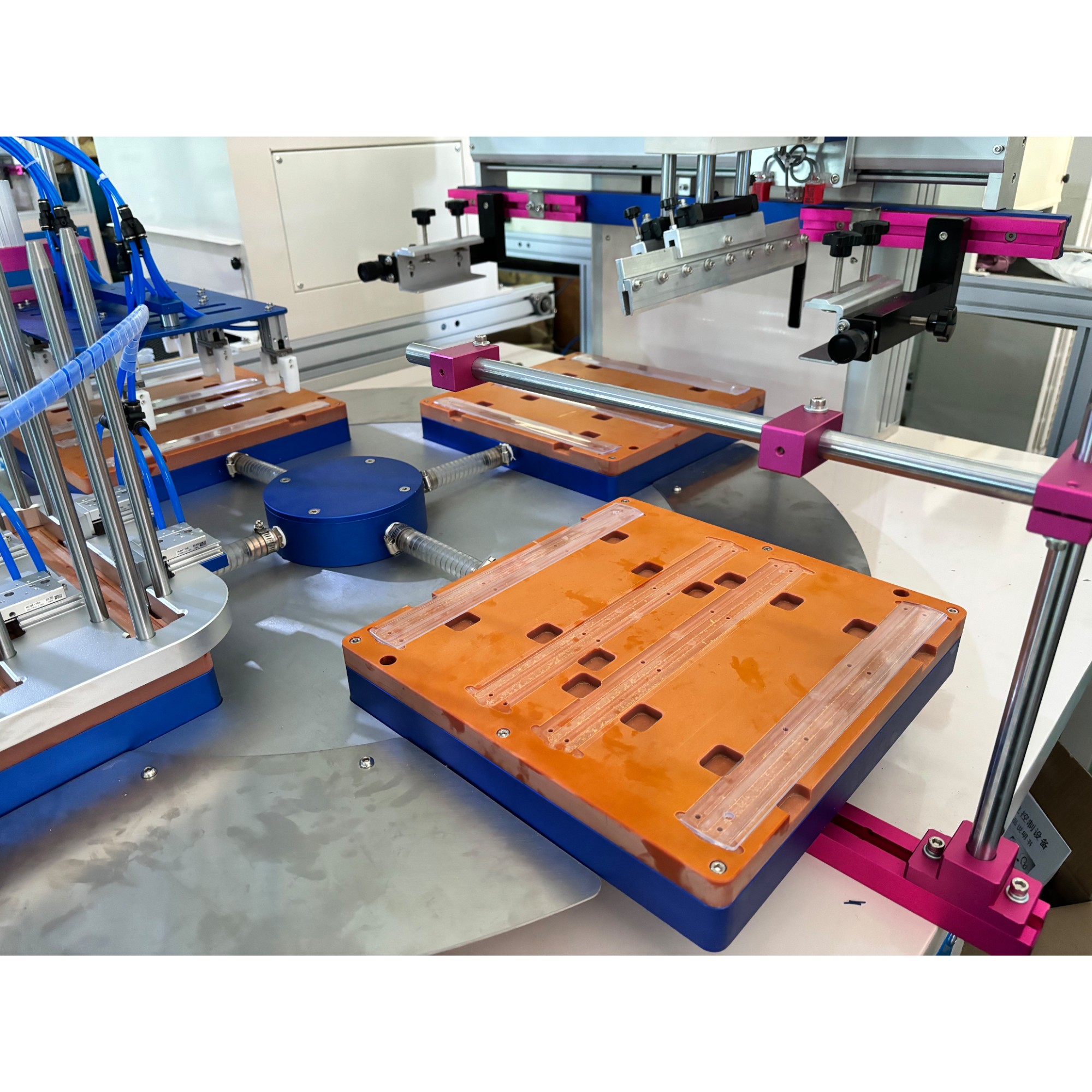

The screen printing machine is special designed for printing stationery ruler with high speed and automation. Building up printing system by stepper motor (or servo motor). Using cam divider with gear motor to make high precision 4 workstations rotary table. Finish printing automatically, reduce labor, improving efficiency.

For 150mm ruler, can print 4 pcs at a time, 4000 pcs per hour;

For 200mm & 300mm ruler, can print 2 pcs at a time, 2000 pcs per hour;

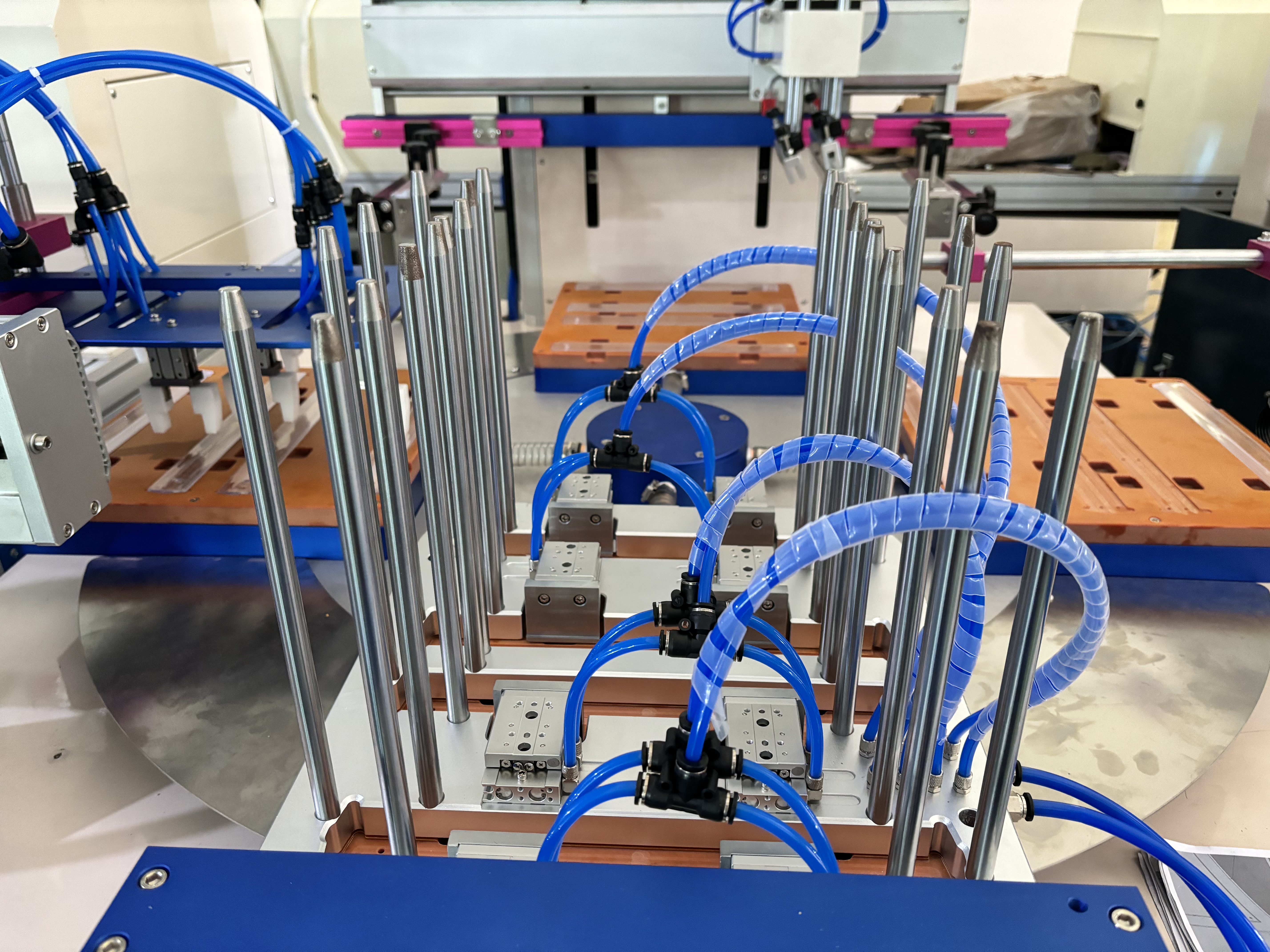

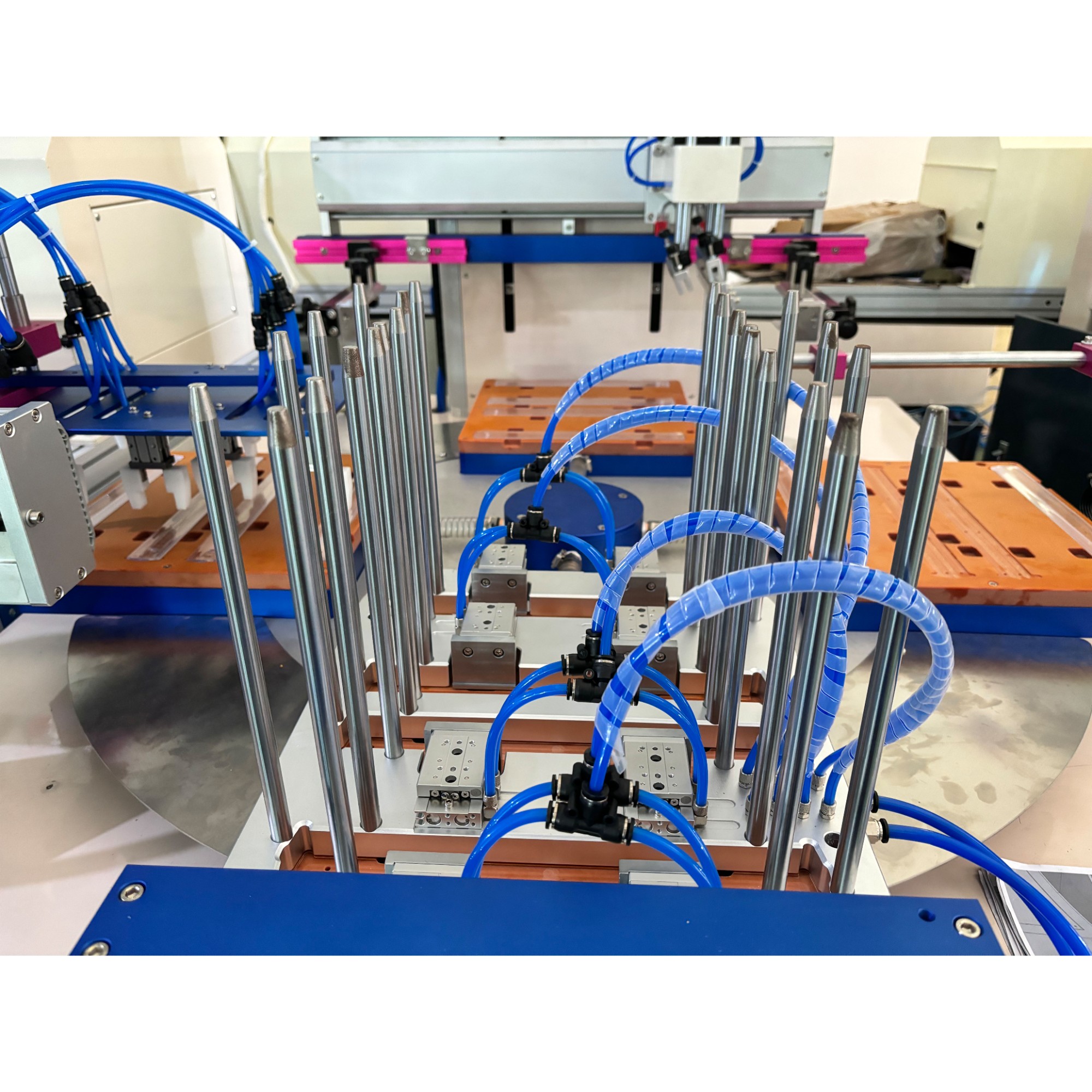

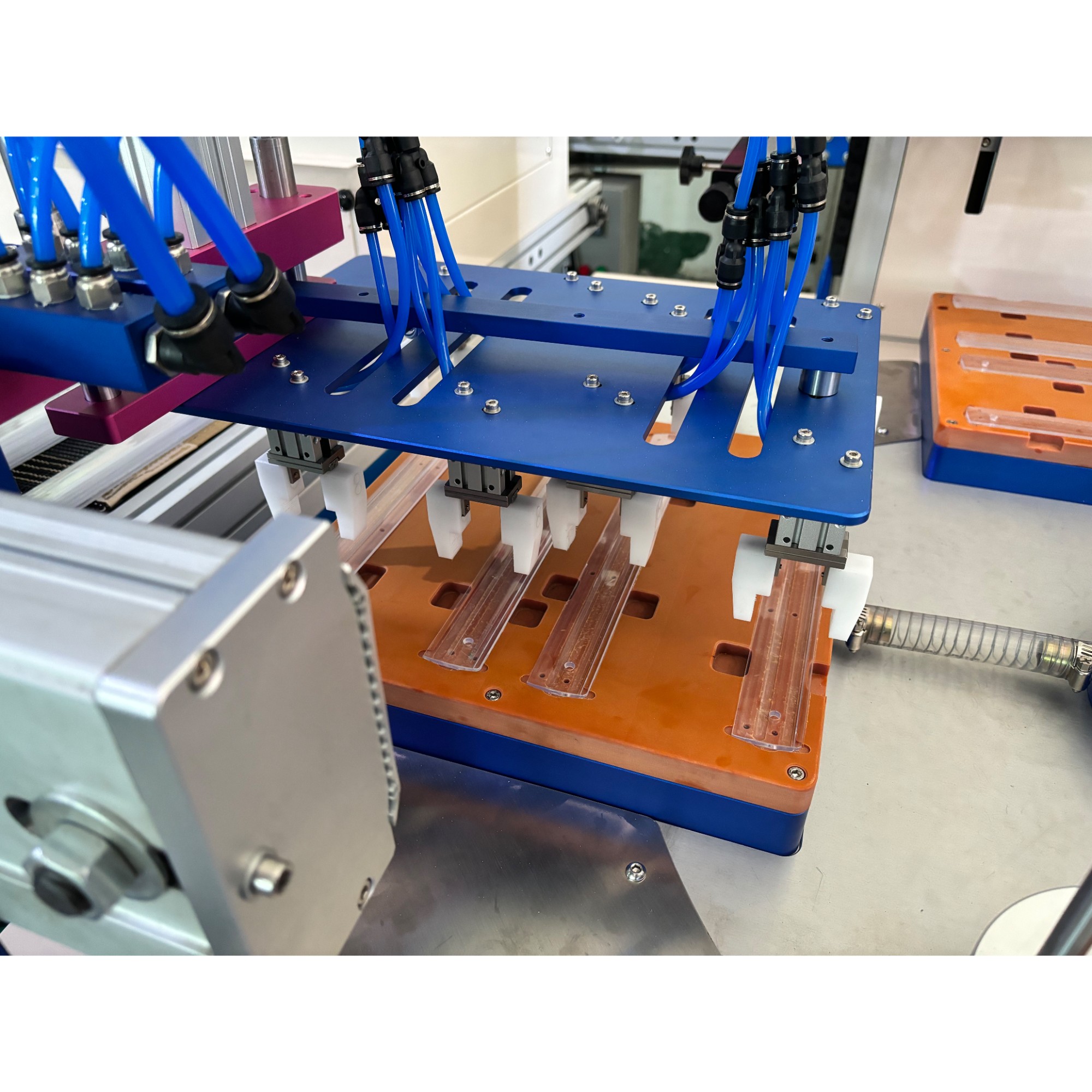

Baiting System:Mechanical with vacuum pad

Feeding System: Automatic by cylinder up / down

Transverse/Vertical /Mechanical driven:Stepper motor, electronic

Control System:HMI (WEINVIEW) and PLC (Mitsubishi) programming
