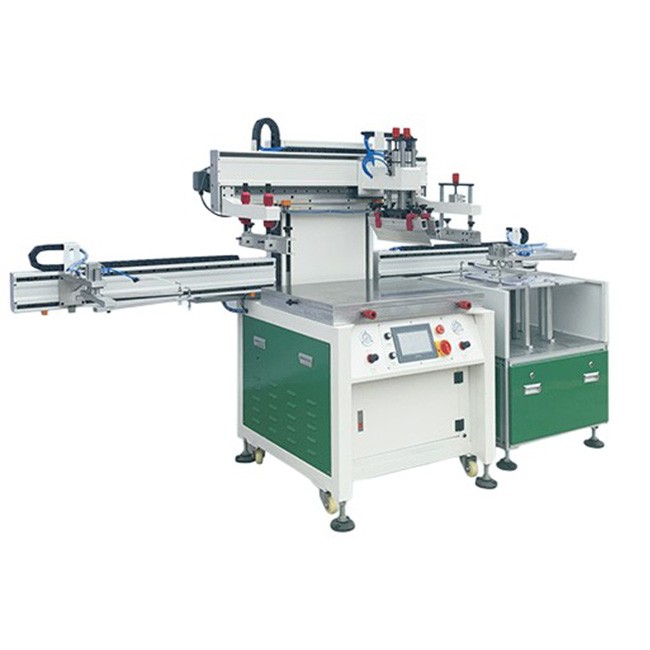

Automatic Large Size Flat Silk Screen Printing Machine

This Flat Silk Screen Printing Machine is equiped with variable frequency motor control, fast reaction speed, accurate start stop position. This is the large precision flat screen printing machine; using imported pneumatic components, pneumatic and electric control; double column lifting structure, stable and high precision, to make the printing pressure more elastic. Printing balance stability, little vibration, high precision, accurate multi-color overprint.

Left and right running, using the lubricating sleeve, suitable for the SMT printing, PVC film, plastic film, textile, keyboard, circuit board and printing other big products LOGO.

Feature:

1. Lifting frame colaborates with screen printing machine, and loading manipulator & unloading manipulator, automatically complete mechanical actions such as loading, printing and unloading,  realizing mechanization and intelligence and digitization.

2. Gear reducer motor is used for vertical lifting and lowering with linear guide rail,ball screw control positioning by lifting, which has fast speed, accurate positioning, long-life, maintenance-free.

3. The cross beam is made of aluminum profiles which are integrally formed by pulling aluminum, and the reduction motor works with precision linear guide rail ,which makes machine for stable and smoothly.

4. The pneumatic screen clamping frame cooperates with manual locking, which is easy to install and fixed firmly. The clamping frame could works with different thickness.

5. It has the function of slow plate lifting to avoid screen sticking after printing.

6、The printing base is made of cast aluminum, which is easy to replace the scraper, Screen frame, scrub screen.

7.Taiwan PLC+human-machine interface, operation and button panel make the manual adjustment process safe. It is convenient to prevent errors in human-machine operation and adapt to diversified printing.

8. Multiple safety protection design ensures personal safety, cooperates with human-machine safety tips

9. Eliminate safety faults and hidden dangers.
